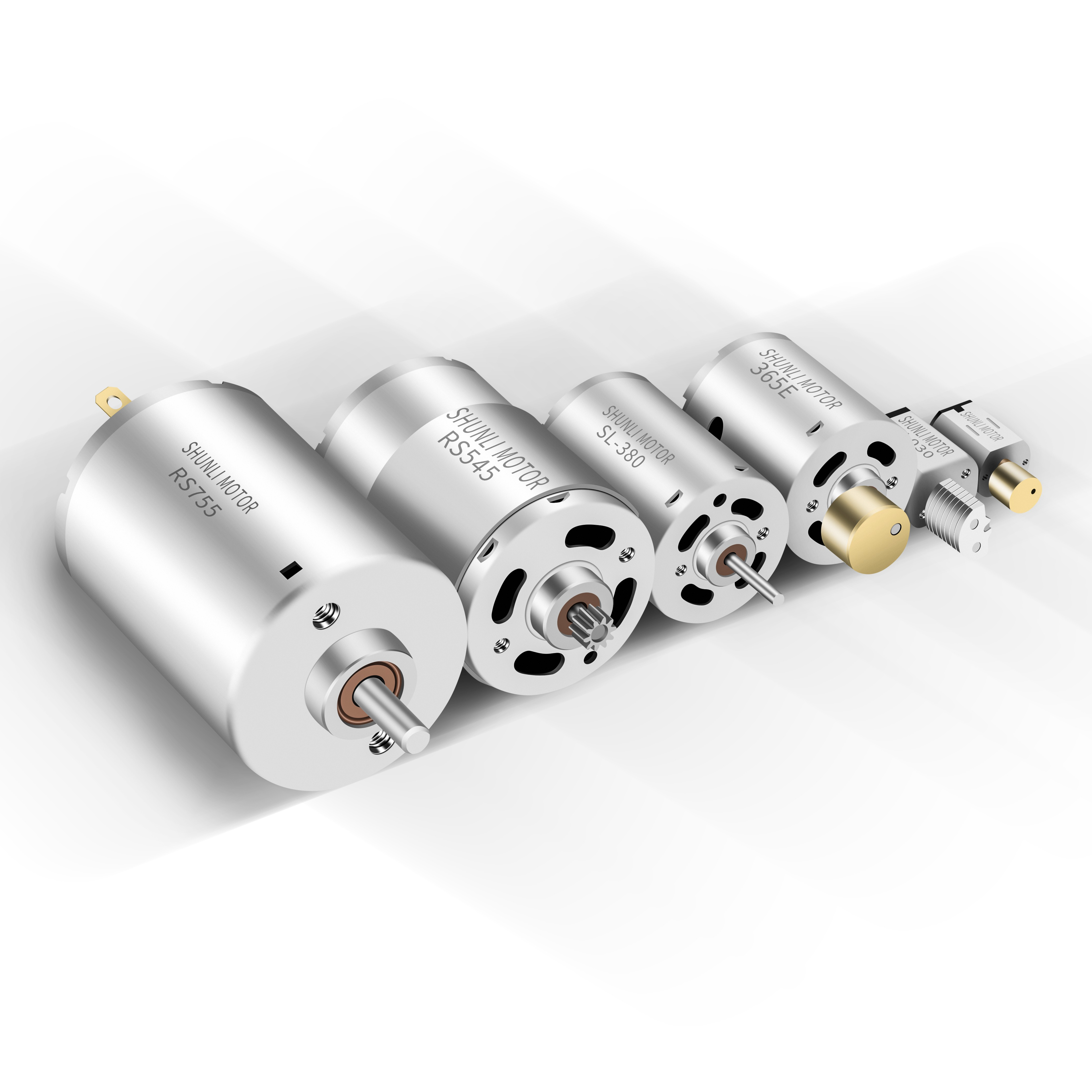

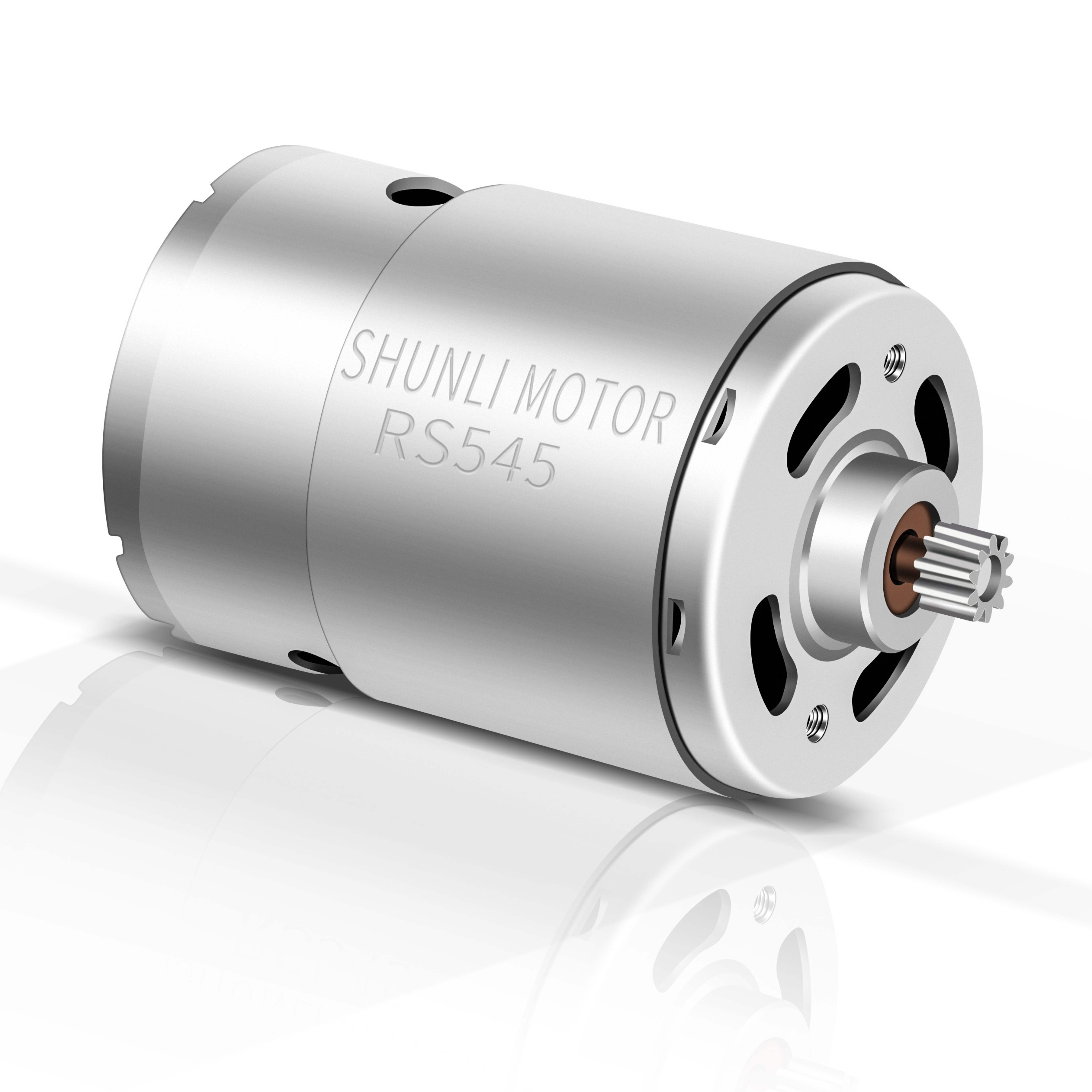

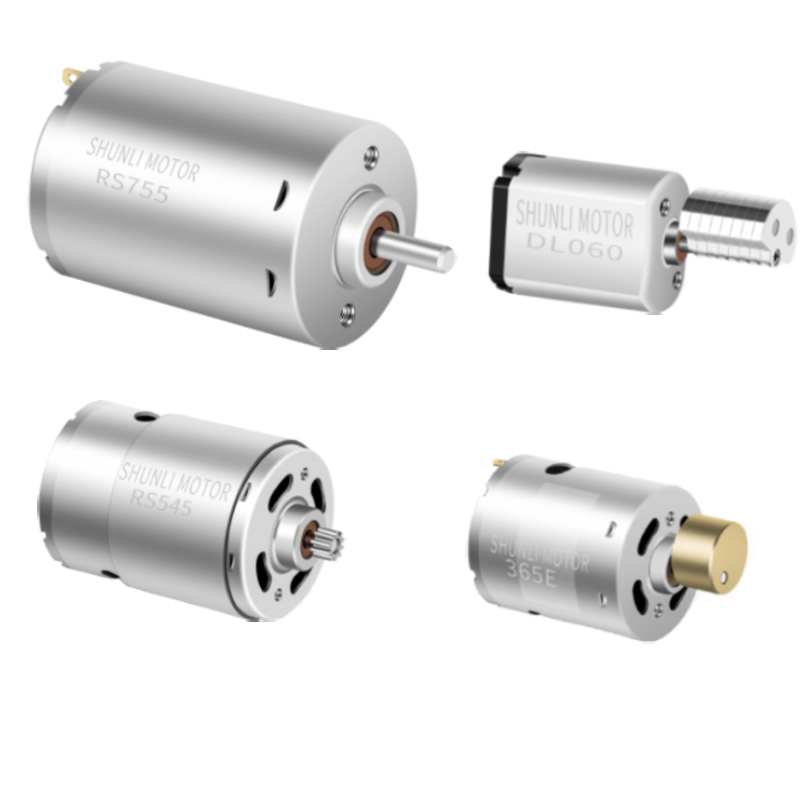

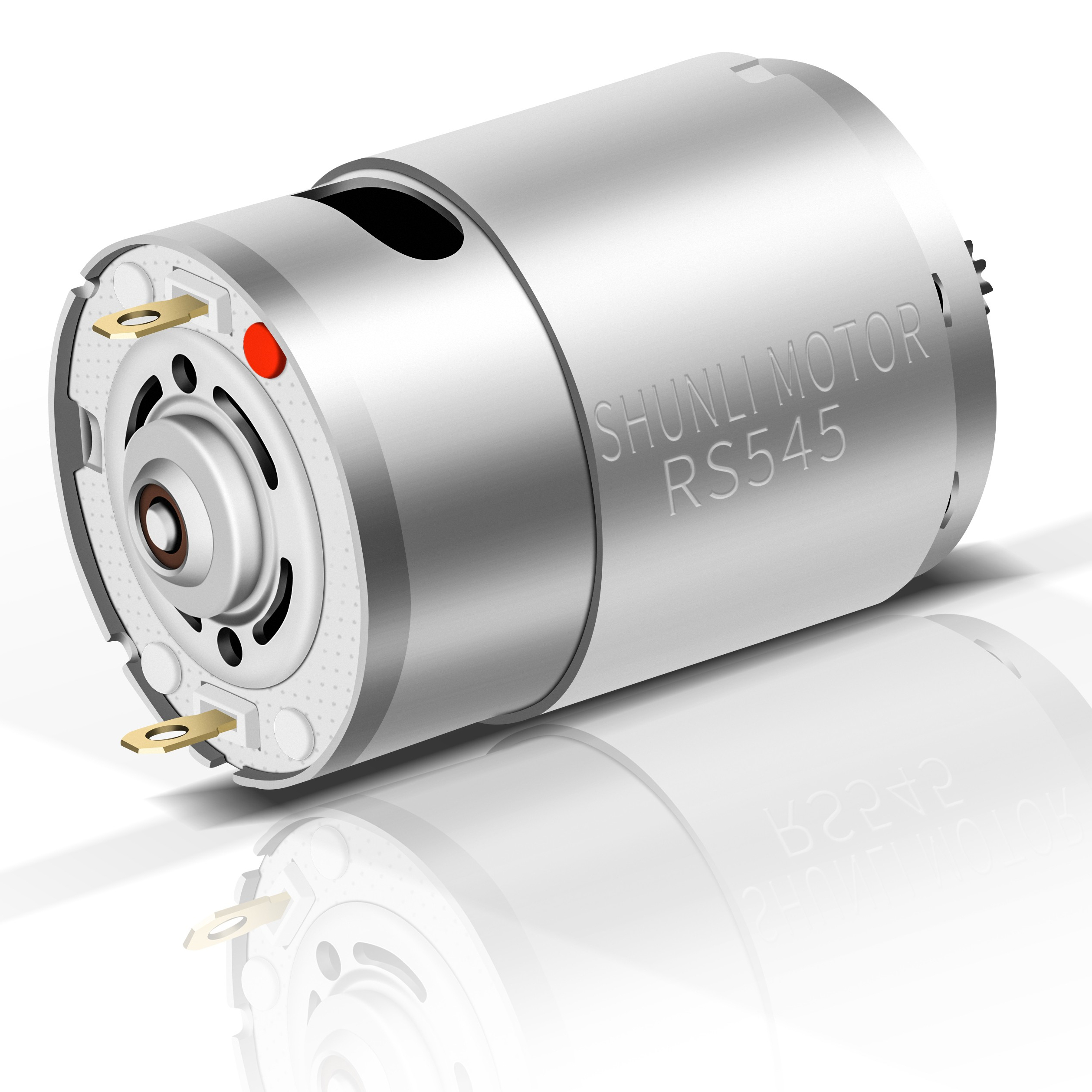

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM
Product Details
💡 Motor Customized Specification, Please contact me.
| PMDC MOTOR Technical Data |
|
V |
V |
RPM |
A |
RPM |
A |
mN.m / gf.cm |
W |
| RS-550H |
23128R |
6.0~24.0 |
24VDC |
4500 |
0.1 |
3932 |
0.39 |
25.7 / 262 |
10.6 |
| 6034 |
6.0~12.0 |
12VDC |
16000 |
1.12 |
13613 |
4.96 |
25.6 / 261.3 |
40.36 |
| RS-555H |
3540 |
6.0~12.0 |
12VDC |
7800 |
0.3 |
6708 |
1.84 |
21.9 / 223.4 |
15.35 |
| 23100 |
6.0~24.0 |
24VDC |
7000 |
0.14 |
6004 |
0.77 |
19.2 / 195.8 |
12.09 |
Q1: What is the operating voltage range for these PMDC motors?
The RS-550H and RS-555H motors operate within a flexible range of 6.0V to 24.0V DC depending on the specific model configuration, with nominal options at 12VDC and 24VDC.
Q2: How high can the RPM of these DC motors go?
The no-load speed ranges from 4,500 RPM up to 16,000 RPM based on standard technical parameters, while customized versions can support high RPM applications up to 30,000 RPM.
Q3: Can I customize the technical specifications of the motors?
Yes. Customizations for voltage range, rated speed, torque outputs, operating range, and other design requirements can be configured. Please get in touch for customized motor parameters.
Q4: What is the difference in power output between the RS-550H and RS-555H models?
Under different specifications, the RS-550H (Model 6034) offers up to 40.36W of rated power at 12VDC, whereas the RS-555H (Model 3540) delivers 15.35W with differing torque profiles, giving you options based on your device's load requirements.
Q5: What are the typical application scenarios for these motors?
These high RPM DC motors are designed for various applications requiring robust power, such as hand-held power tools, smart home devices, automotive parts, garden machinery, and industrial drive units.
Q6: What are the torque capabilities of the RS-550 and RS-555 series?
The rated torque ranges from 19.2 mN.m (195.8 gf.cm) up to 25.7 mN.m (262 gf.cm), ensuring efficient operation under continuous load.
