Home > Planetary Gear Motor > 18V 24 Volt High Torque DC Planetary Gearbox Gear Motor 20rpm 60rpm 200rpm 700rpm Brushed DC Motor

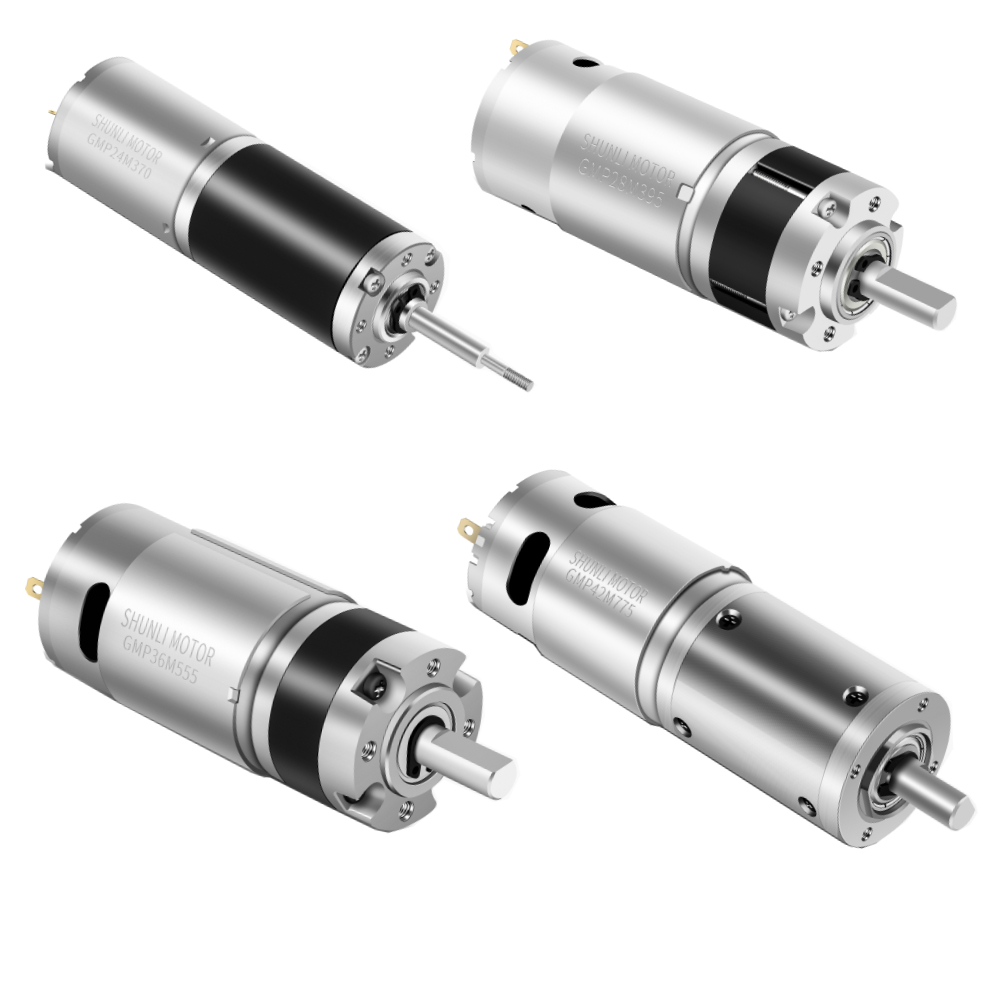

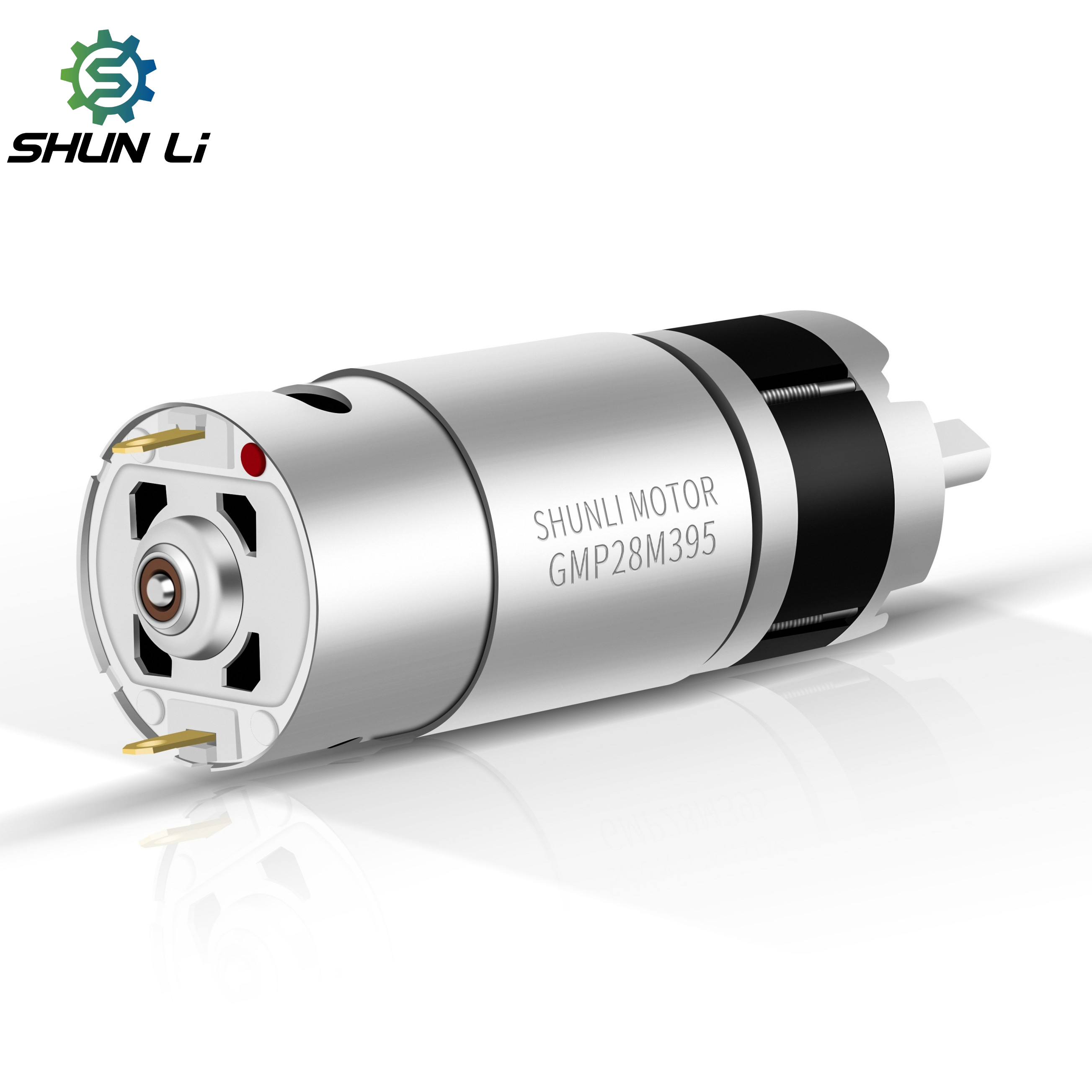

18V 24 Volt High Torque DC Planetary Gearbox Gear Motor 20rpm 60rpm 200rpm 700rpm Brushed DC Motor
18V 24 Volt High Torque DC Planetary Gearbox Gear Motor 20rpm 60rpm 200rpm 700rpm Brushed DC Motor
18V 24 Volt High Torque DC Planetary Gearbox Gear Motor 20rpm 60rpm 200rpm 700rpm Brushed DC Motor
18V 24 Volt High Torque DC Planetary Gearbox Gear Motor 20rpm 60rpm 200rpm 700rpm Brushed DC Motor
18V 24 Volt High Torque DC Planetary Gearbox Gear Motor 20rpm 60rpm 200rpm 700rpm Brushed DC Motor
1 / 5
18V 24 Volt High Torque DC Planetary Gearbox Gear Motor 20rpm 60rpm 200rpm 700rpm Brushed DC Motor
18V 24 Volt High Torque DC Planetary Gearbox Gear Motor 20rpm 60rpm 200rpm 700rpm Brushed DC Motor
18V 24 Volt High Torque DC Planetary Gearbox Gear Motor 20rpm 60rpm 200rpm 700rpm Brushed DC Motor
18V 24 Volt High Torque DC Planetary Gearbox Gear Motor 20rpm 60rpm 200rpm 700rpm Brushed DC Motor
18V 24 Volt High Torque DC Planetary Gearbox Gear Motor 20rpm 60rpm 200rpm 700rpm Brushed DC Motor

18V 24 Volt High Torque DC Planetary Gearbox Gear Motor 20rpm 60rpm 200rpm 700rpm Brushed DC Motor

Send Inquiry

Product Description

Product Presentation

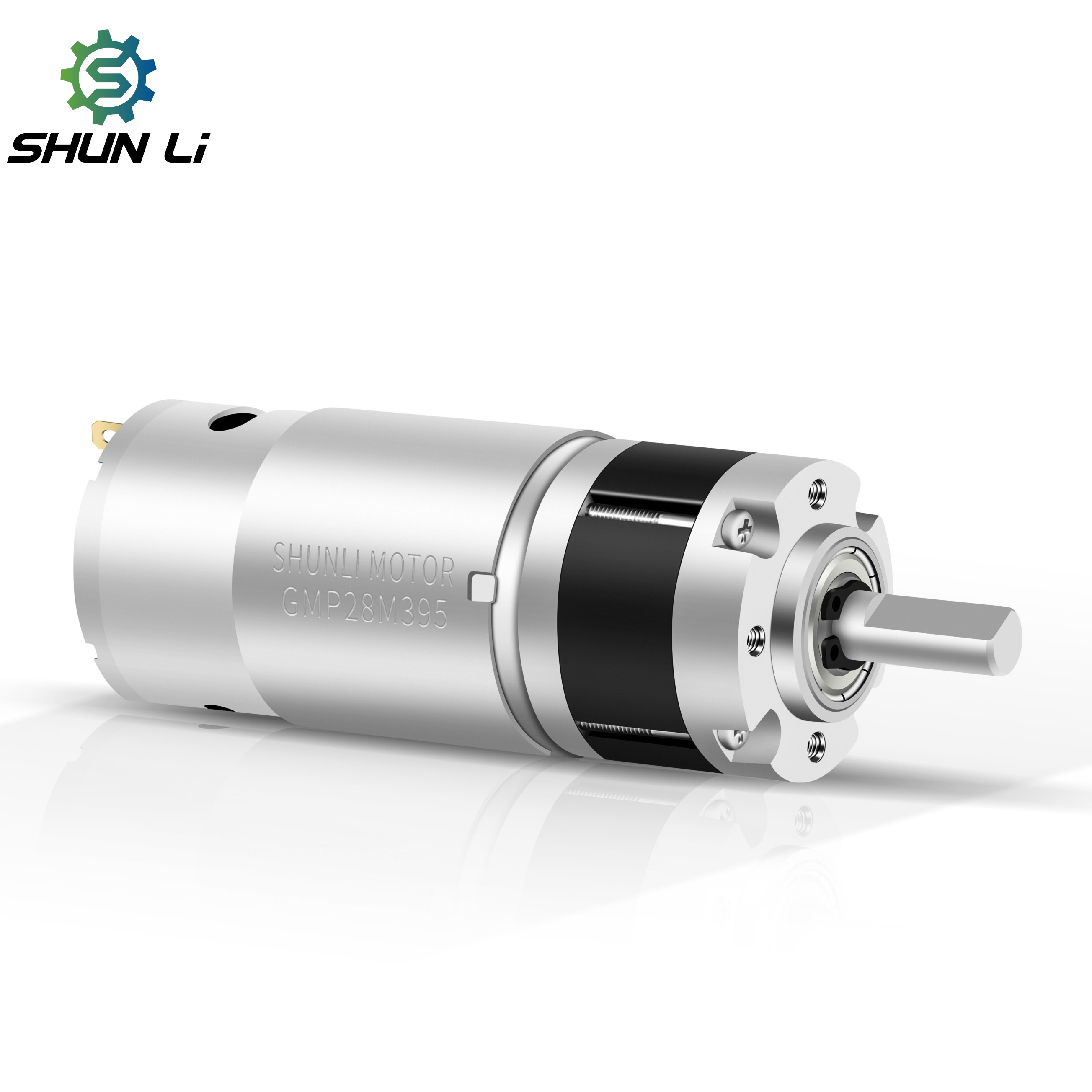

Product Details
Product Model GMP28M365/385/395
Gearbox Length 21.7~44.8mm
Speed 23.5RPM-885RPM
Voltage 12V
Torque 0.36 N.m/0.06 N.m/1.5 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

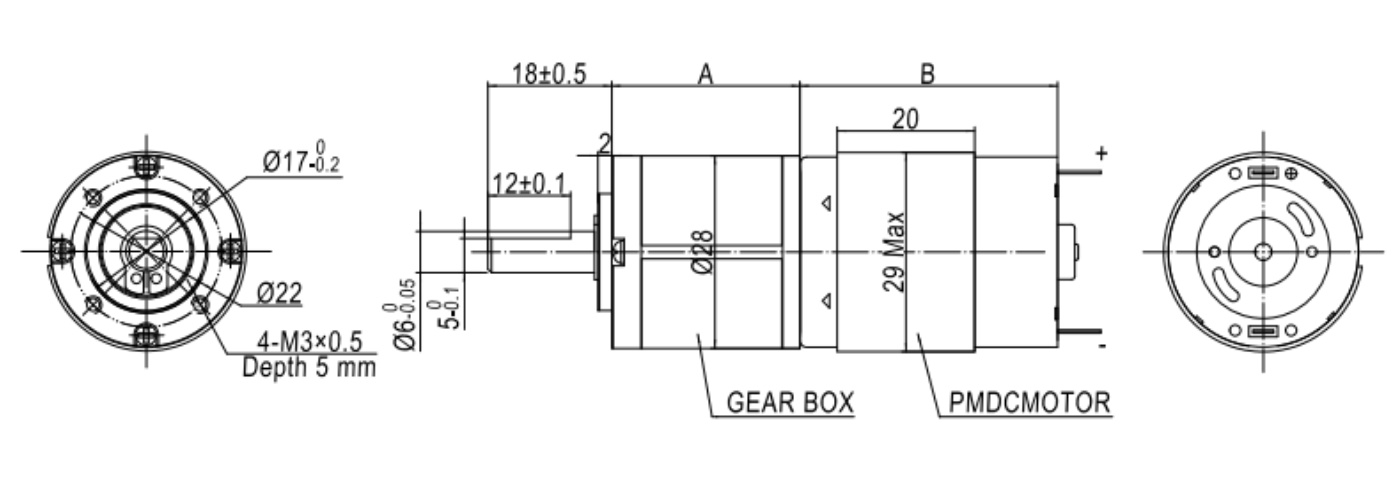

Product Specification Drawing

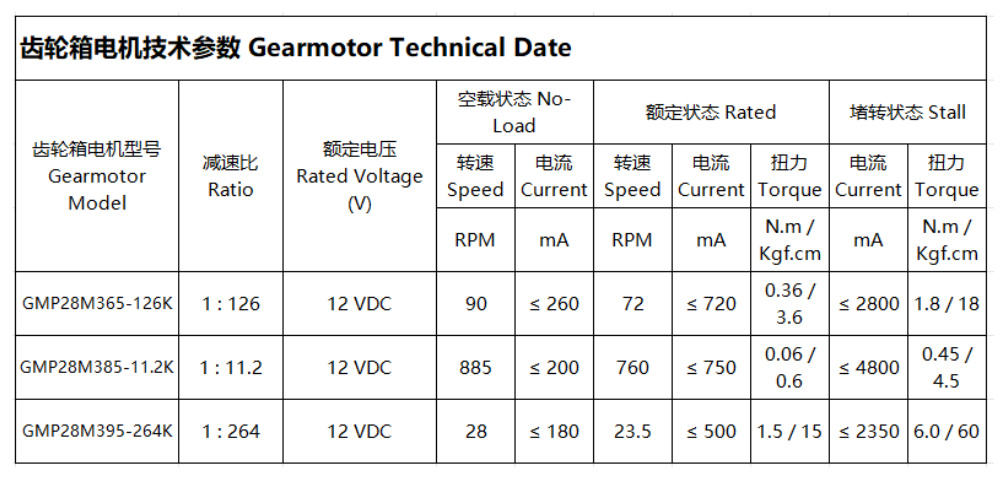

Motor Performance Curves
Application Scenario 1
Application Scenario 2
Application Scenario 3
Application Scenario 4
Application Scenario 5
Application Scenario 6
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with extensive manufacturing experience.
Q2: What is the payment term for a new customer?
We can draw up an Online Assurance Order for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal, TT, or other convenient methods.
Q3: If I cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customers' specific requirements.
Q4: Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certificates. If you require other specific certificates, we can apply for them on your behalf.
Q5: How is your Quality Control managed?
We have professional checking staff on every production line process. After finishing the motor assembly, we use specialized quality testing machines, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
Q6: How can we get a sample for performance testing?
You can contact us with your detailed requirements (voltage, speed, torque, size, etc.), and we will assist you in preparing and delivering the samples for evaluation.
