Home > Planetary Gear Motor > Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
1 / 5
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox

Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox

Send Inquiry

Product Description

Micro Gear Motor Overview

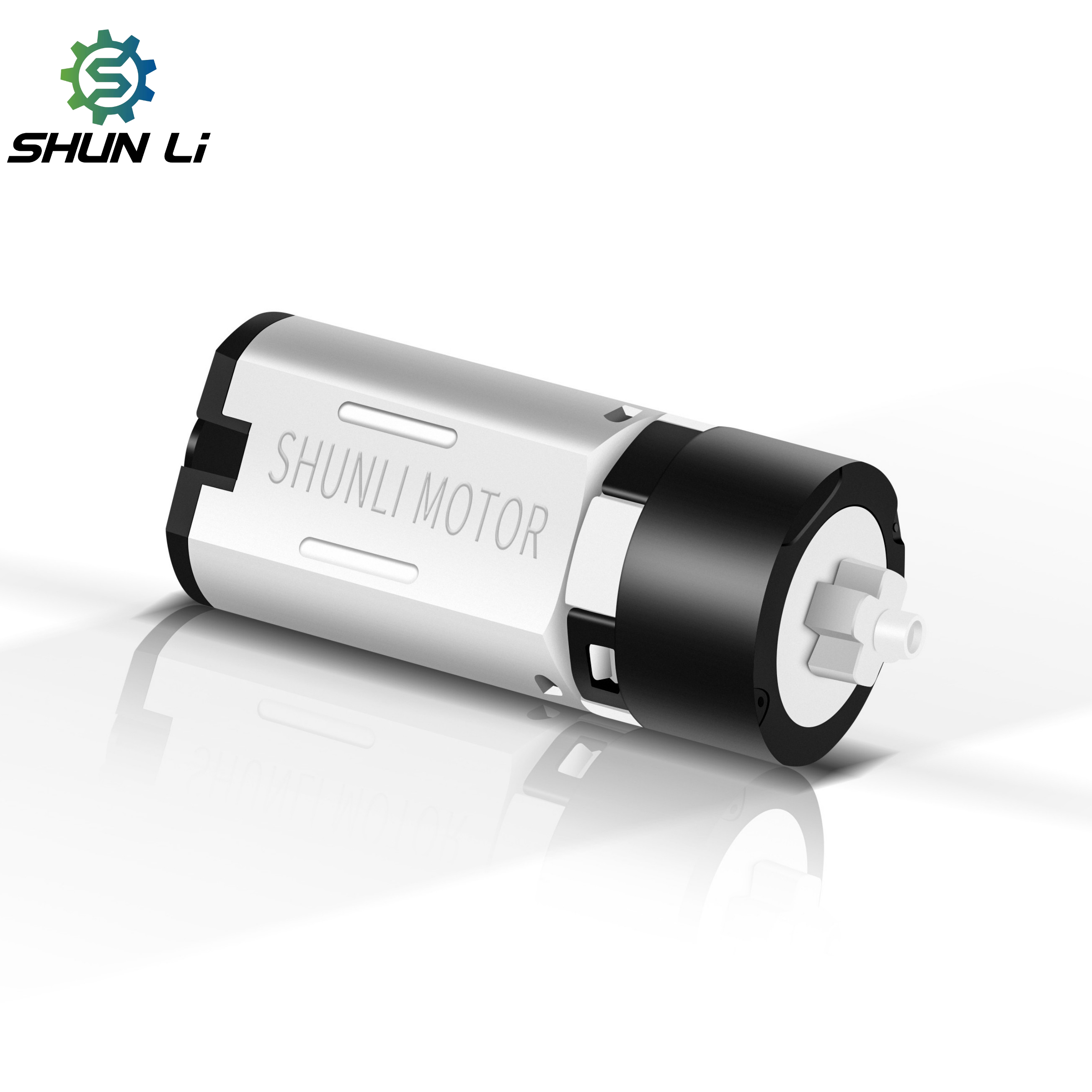

Product Dimensions and Model
Product Model GMP12PMN10/N20/N30
Gearbox Length 19.7±0.5mm
Speed 65RPM-205RPM
Voltage 4.6V/4.5V/12V
Torque 0.2~0.5 mN.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

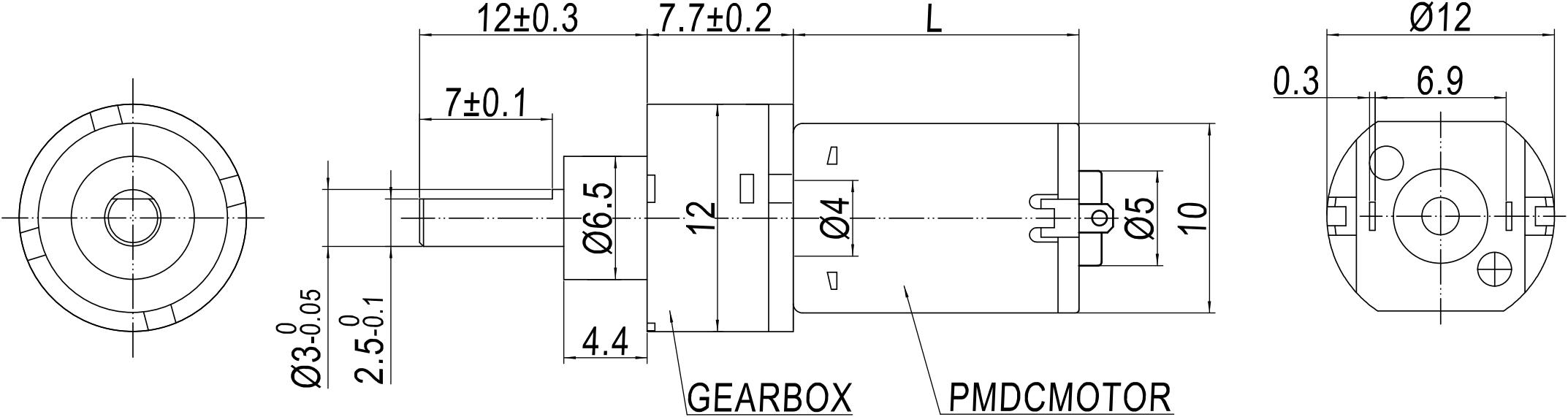

Motor Technical Specifications and Drawing

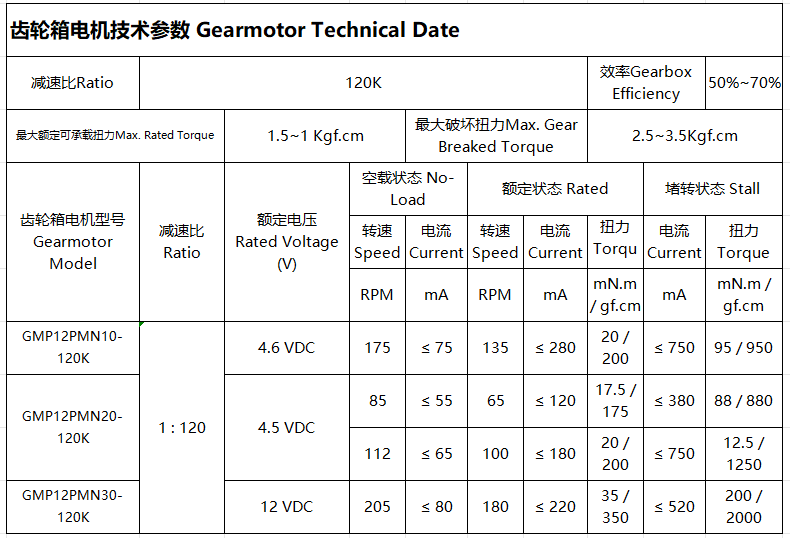

Motor Performance Curves and Parameters
Product detail view 1 Product detail view 2 Product detail view 3 Product detail view 4 Product detail view 5 Product detail view 6
Frequently Asked Questions
Q Are you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
Q What is the payment term for a new customer?
We can draw up an Online Trade Assurance Order for our new customer, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT etc.
Q I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Q Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
Q How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have complete inspection equipment to test the motor, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
Q What parameter details should be provided for customization request?
You need to provide basic requirements such as voltage, speed, rated load torque, shaft length, shape parameters, and your application environment details.
