Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless

1 / 5

Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless

Send Inquiry

Product Description

Professional manufacturer hair dryer and micro vacuum cleaner 390PH 12v dc motor

Product Details

Motor Customized Specification, Please contact us.

Reference Drawing

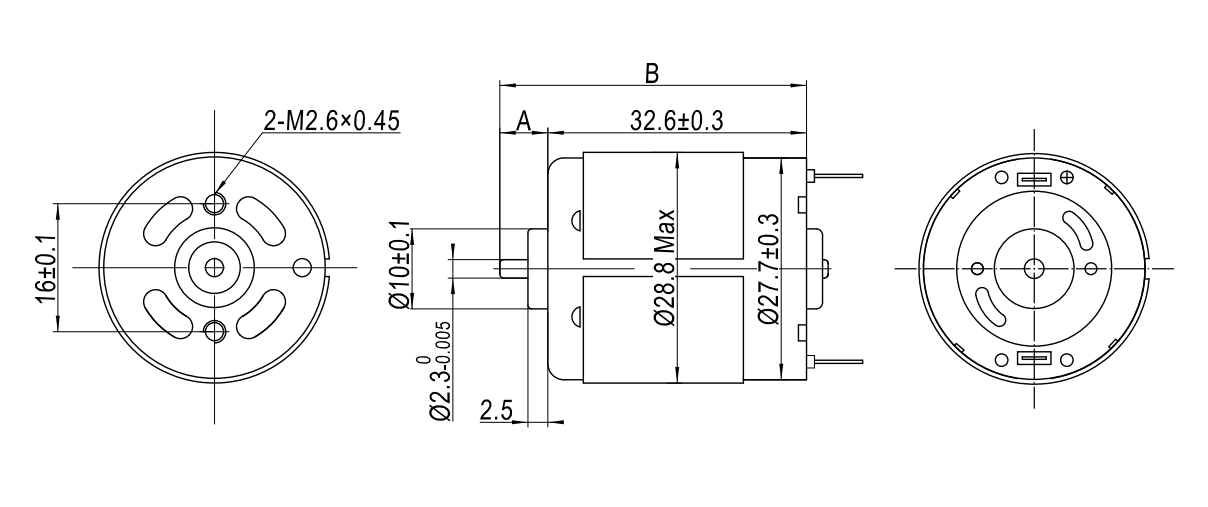

------ RS - 365

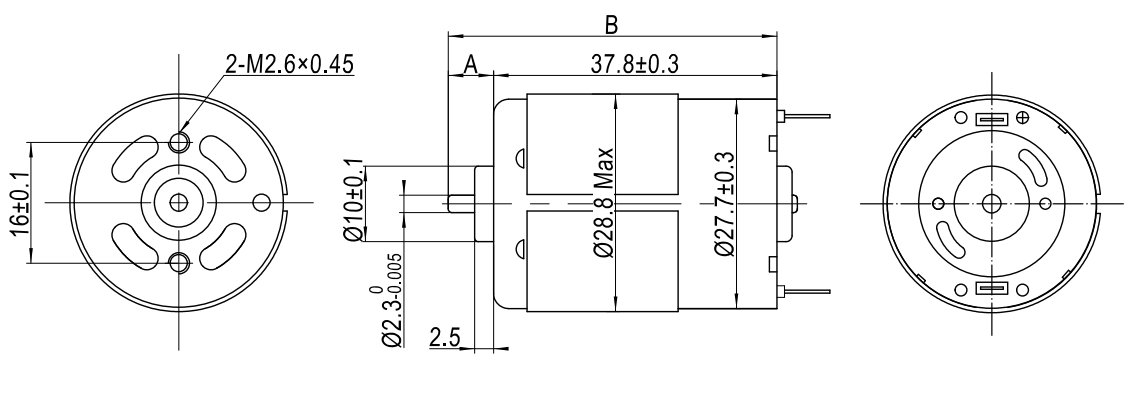

------ RS - 385

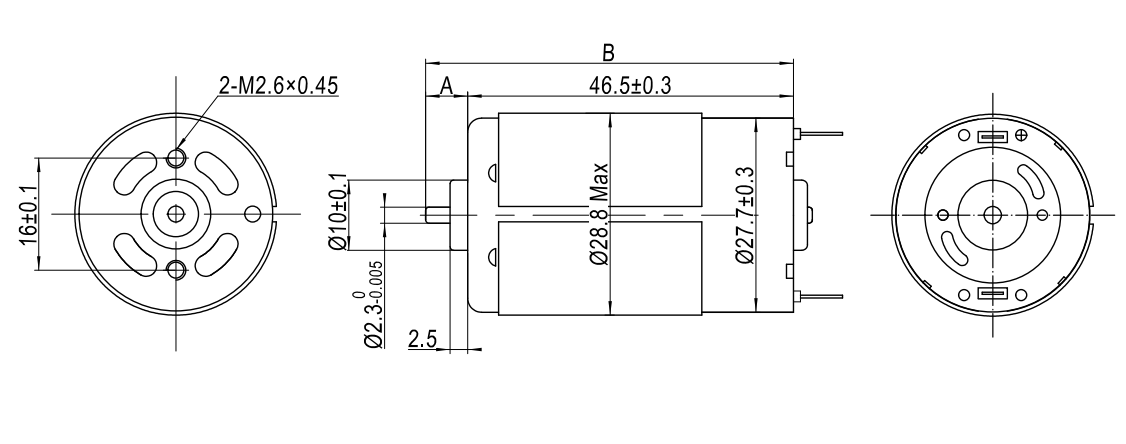

------ RS - 395

The length of shaft can be customized, Please contact us.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07 / 61.9	2.72	2.22	42.2 / 430
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75 / 58.6	1.31	8.9	80.4 / 820
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83 / 59.5	1.8	1.06	30.4 / 310
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09 / 72.3	6.68	2.66	54.9 / 560

Recommend Product

Looking forward to your feedback!

Frequently Asked Questions

Can the operating voltage and speed of the 390PH DC motor be customized?

Yes, the rated voltage, operating range, and speed (RPM) can be customized to match your application requirements, such as high-speed hair dryers or micro vacuum cleaners.

What features make these motors suitable for hair dryers and micro vacuum cleaners?

Models like the RS-390SH offer speeds up to 12,000 RPM at 12VDC, delivering the necessary high-speed performance and stable torque needed for compact air-flow and vacuum systems.

Can the motor shaft length and shape be customized?

Yes, the length of the shaft, as well as specific configurations, can be customized according to your mechanical drawing and assembly demands.

What is the typical operating voltage range for these models?

These PMDC motors typically operate within a range of 6.0V to 24.0V DC. We offer standard nominal ratings like 12VDC and 24VDC depending on your power specifications.

How do I distinguish between the RS-365, RS-385, and RS-395 motors?

Each model has distinct dimensions, rated power, torque, and current properties. You can refer to the reference drawings and datasheet details to find the model matching your size constraints and performance needs.

Product Detail

Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless

Product Description

Professional manufacturer hair dryer and micro vacuum cleaner 390PH 12v dc motor
