| Ratio | 41K / 82K / 95K / 190K / 219K / 438K / 504K / 1007K |
|---|---|
| Max. Rated Torque | 300~800 gf.cm |
| Max. Gear Breaked Torque | 1000~3000 gf.cm |
| Gearbox Efficiency | 12%~35% |
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM1220EMN20-95K | 1 : 95 | 4.5 VDC | 145 | ≤ 70 | 122 | ≤ 200 | 8 / 80 | ≤ 700 | 75 / 750 |
| GM1220EMN30-1007K | 1 : 1007 | 12 VDC | 25 | ≤ 90 | 22 | ≤ 230 | 120 / 1200 | ≤ 400 | 420 / 4200 |
| PMDC MOTOR Model | Length "B"(mm) | Rated Voltage (V) | No-Load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | ||||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | ||||
| SL-N20 | 04514000 | 15 | 4.5 VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25 / 2.5 | ≤ 650 | 1.5 / 15 |
| SL-N30 | 1225400 | 20 | 12 VDC | 25400 | ≤ 50 | 22600 | ≤ 170 | 0.5 / 5 | ≤ 380 | 4.2 / 42 |

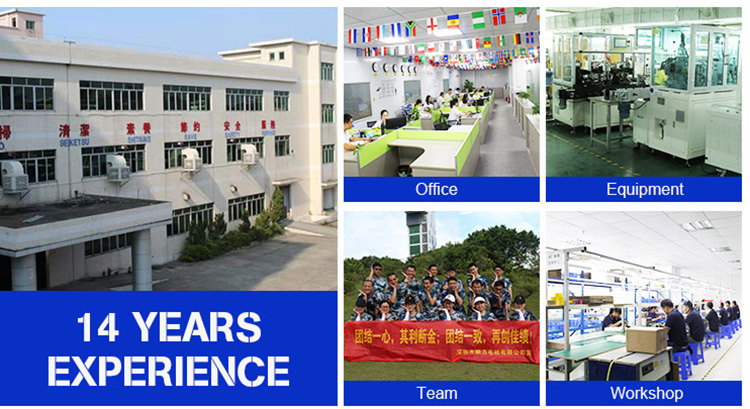

Established in 2005, it is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures. The products are exported to more than 50 countries and regions at home and abroad.
1. Are you a trading company or a manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
2. What is the payment term for a new customer?
We can draw up an Online Assurance Order for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay via PayPal, TT, and other methods.
3. I cannot find a suitable motor on your website. Can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements.
4. Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other standard certifications. If you have other specific certificate requirements, we can apply for them for you.
5. How is your Quality Control?

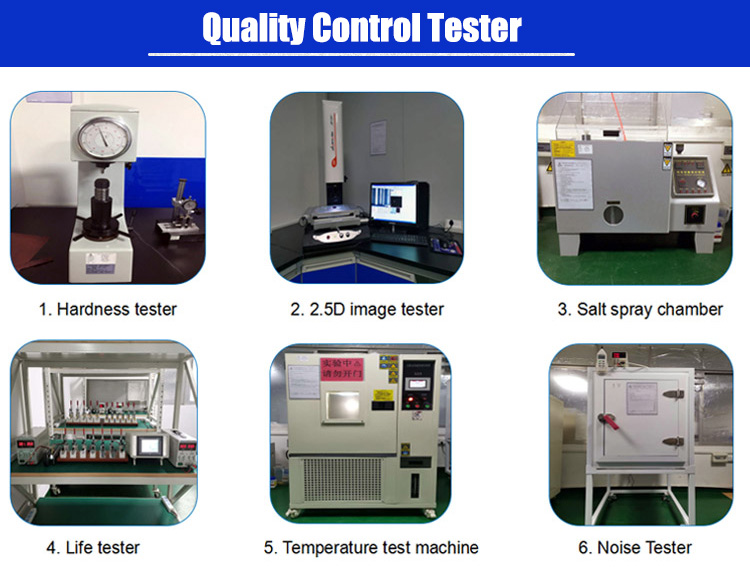

We have professional checking staff on every production line process. After finishing the motor assembly, we use comprehensive testing machines, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers, to ensure product quality.
