RadixPro RadixPro
[email protected]
Home > DC Worm Gear Motor > Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox

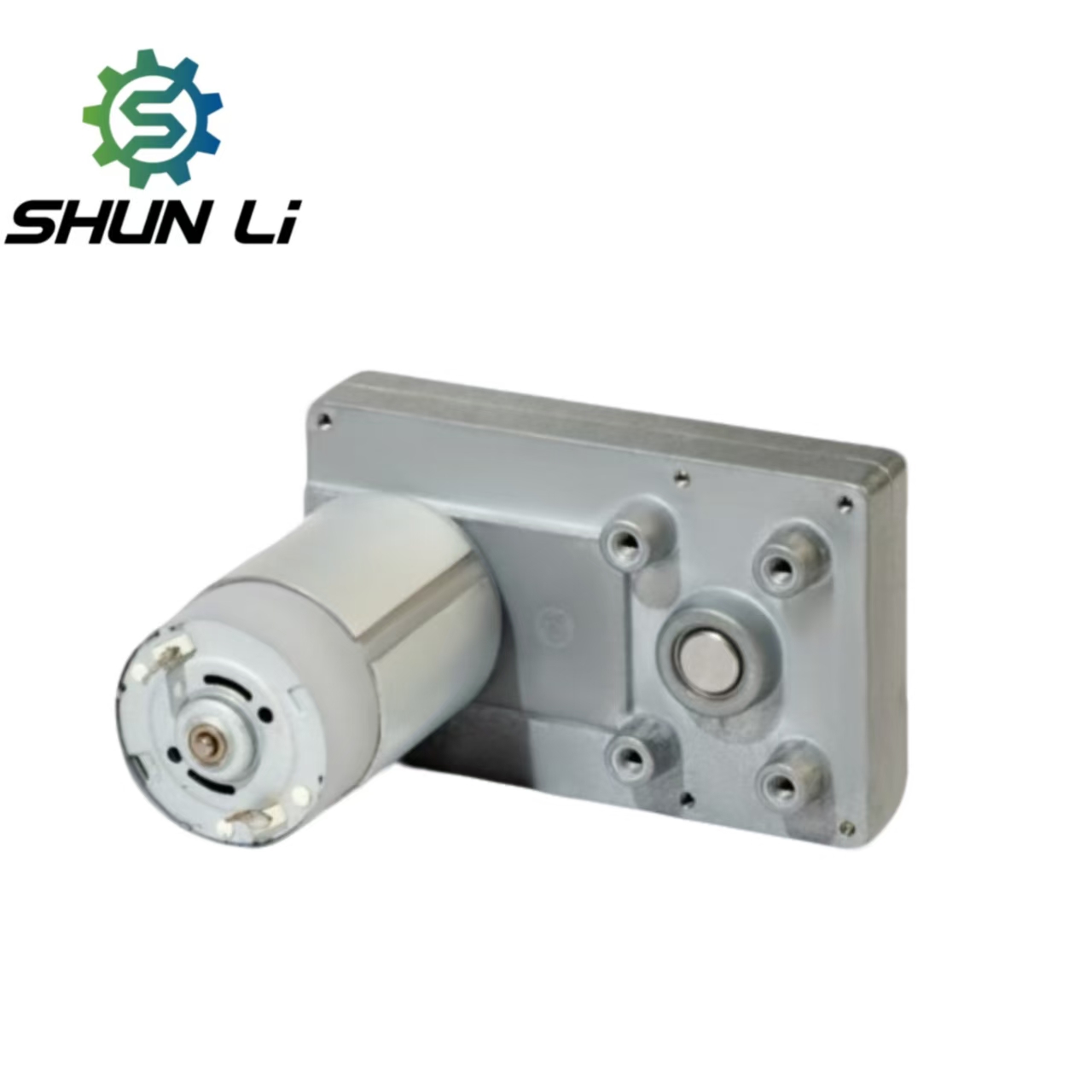

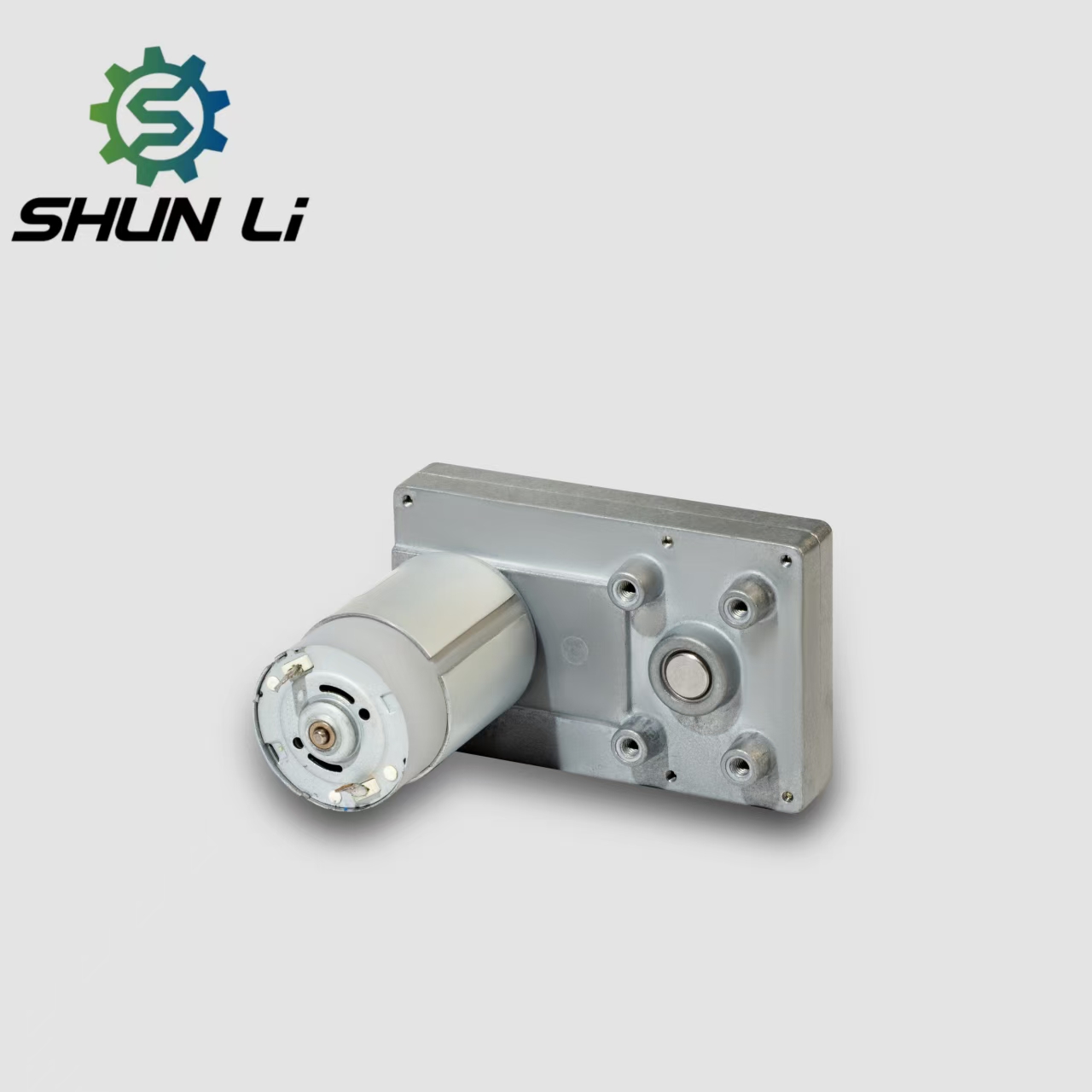

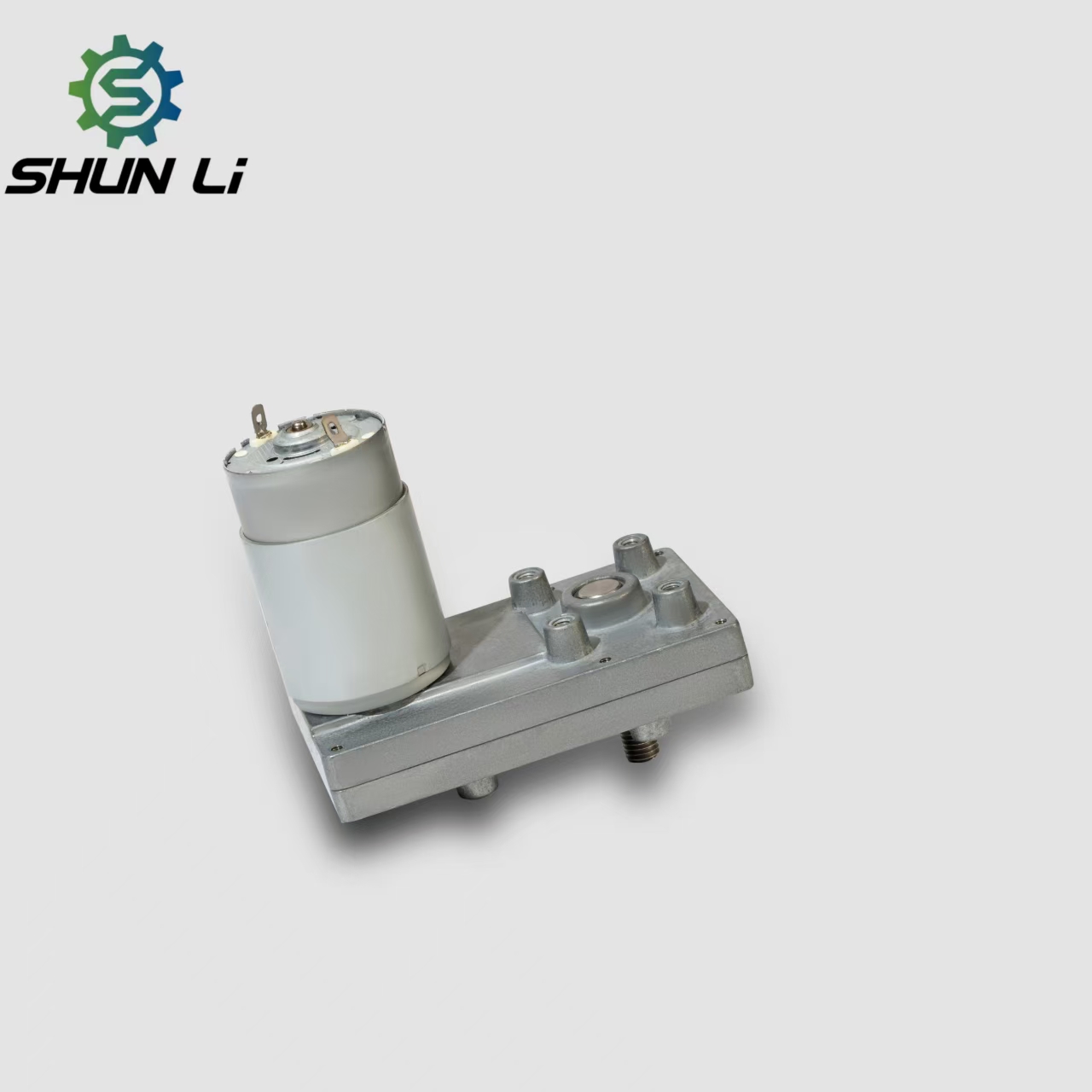

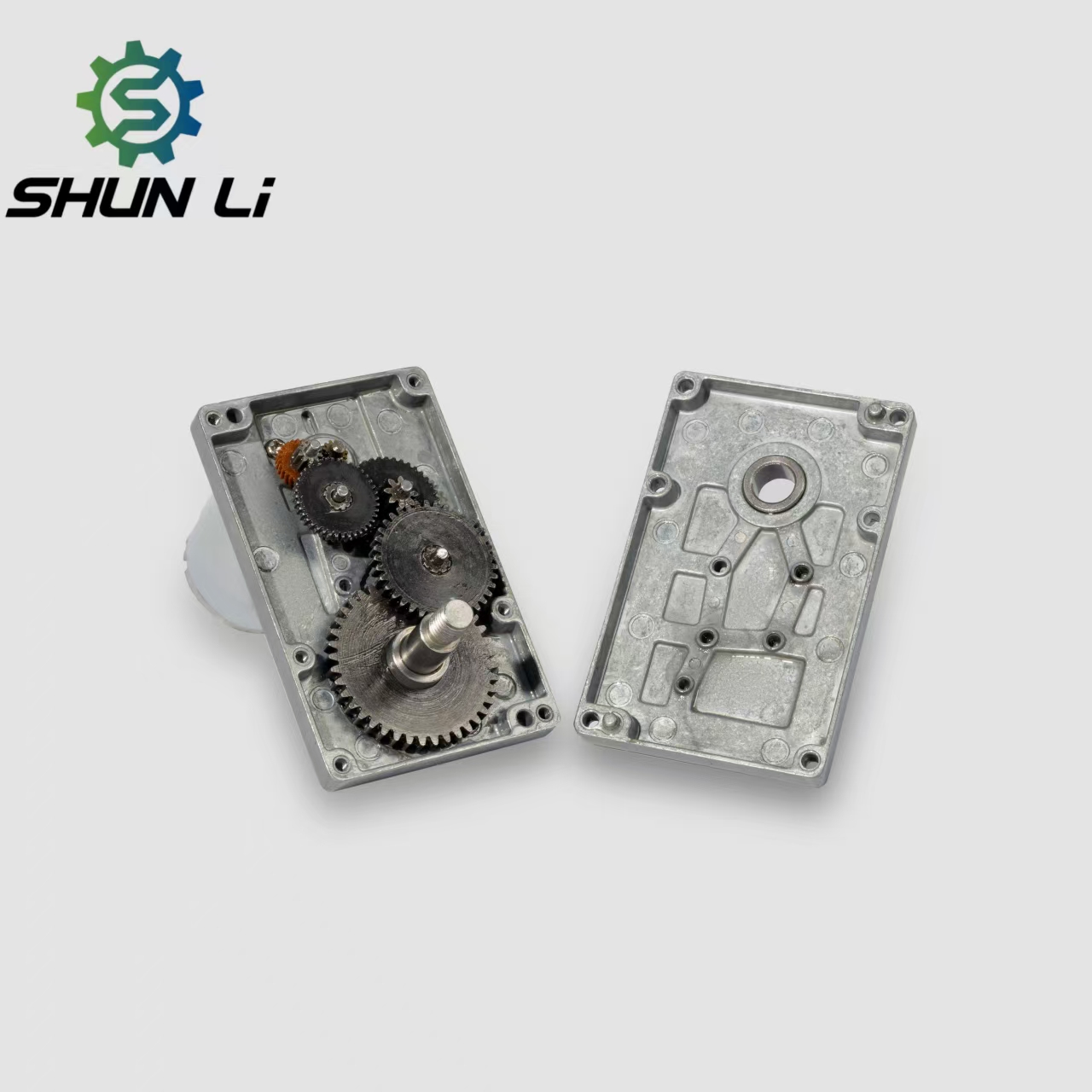

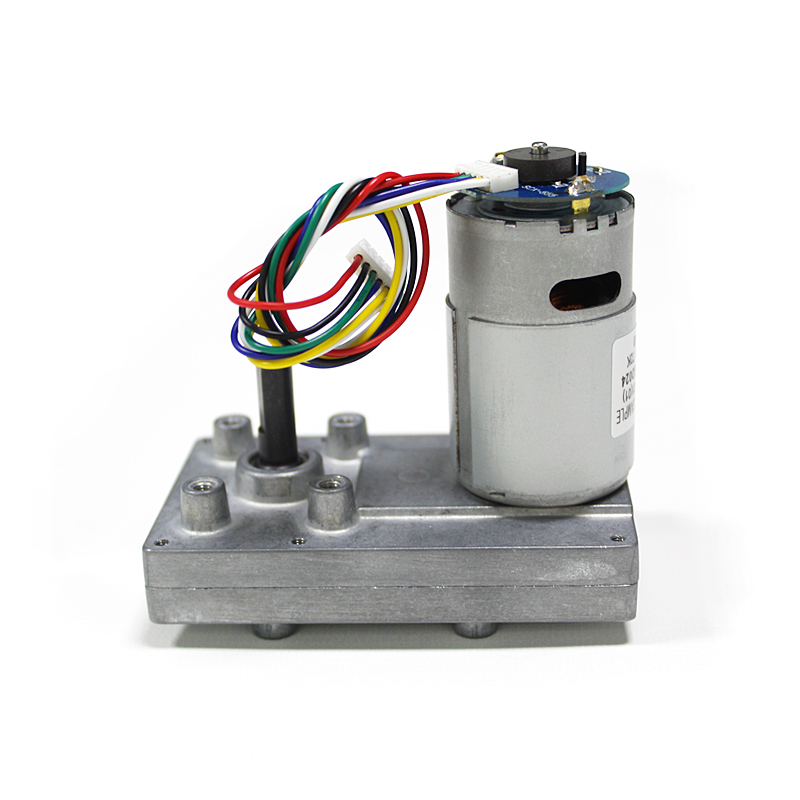

Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
1 / 5
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox

Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox

Send Inquiry

Product Description

Product Banner
Product Detail
Product Model GM95SM545/555/575
Gearbox Length 95MM
Speed 14.5RPM~65RPM
Voltage 24V/24V/12V
Torque 6N.m/4 N.m/1.2 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

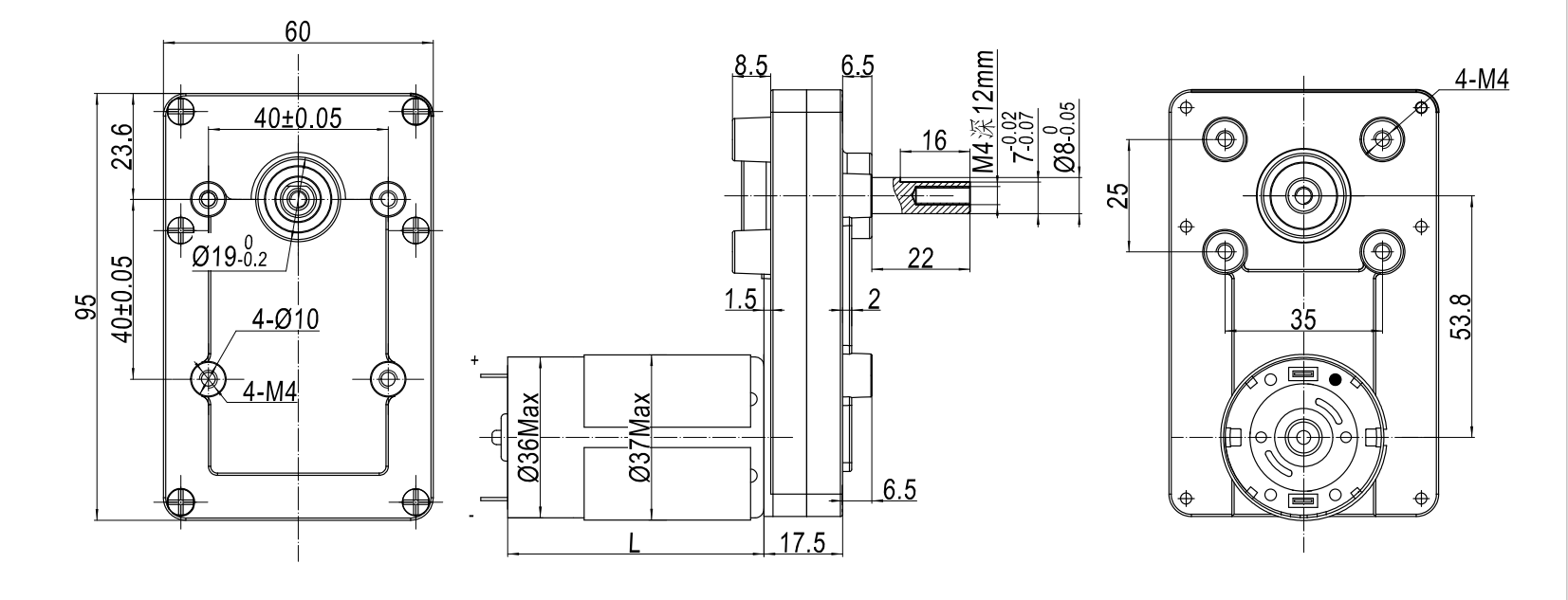

Technical Drawing

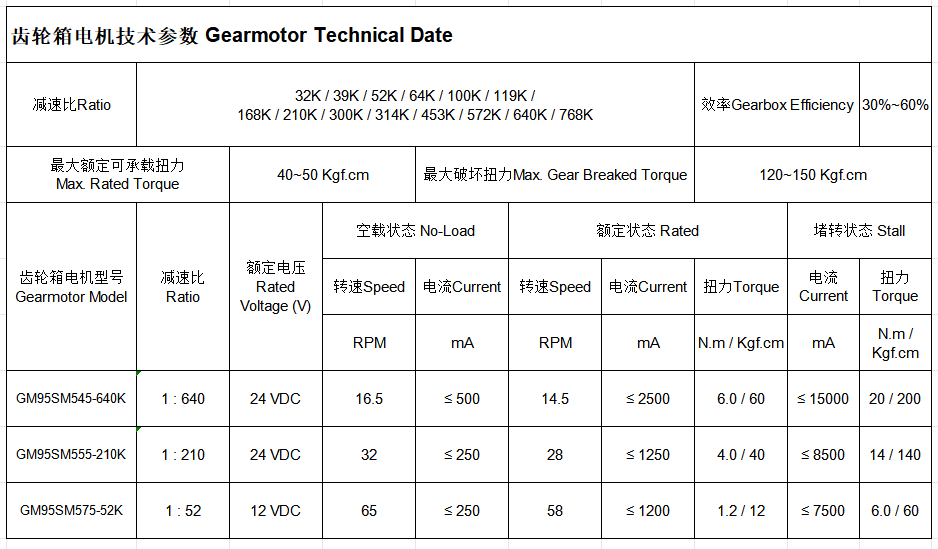

Performance Chart
Application Detail 1
Application Detail 2
Application Detail 3
Application Detail 4
Application Detail 5
Application Detail 6
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
Q2: What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT, etc.
Q3: I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Q4: Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
Q5: How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have complete quality machinery to test the motor, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers, etc.
