20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor

Product Description

Micro Gear Motor Overview

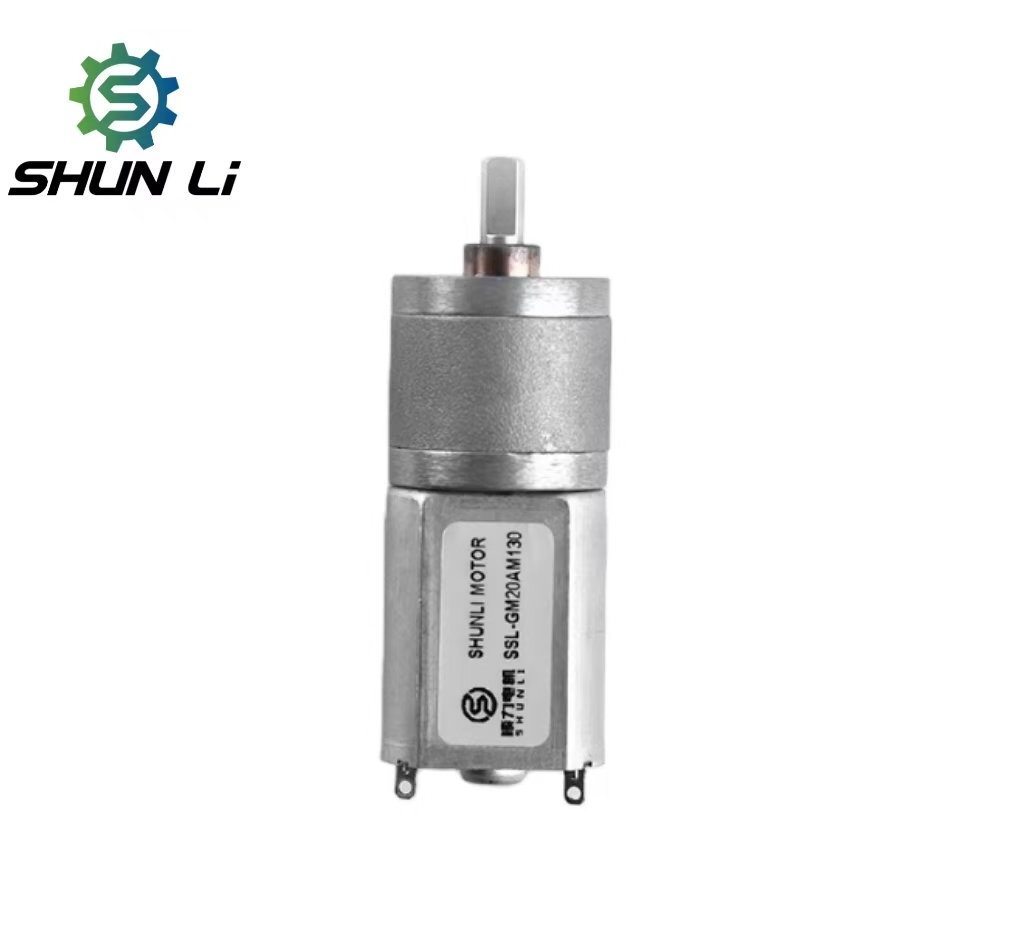

Product Image
Product Model GM20AM130/180
Gearbox Length 14.5~20.5mm
Speed 32RPM-88RPM
Voltage 6V/5V
Torque 0.1N.m/0.32N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

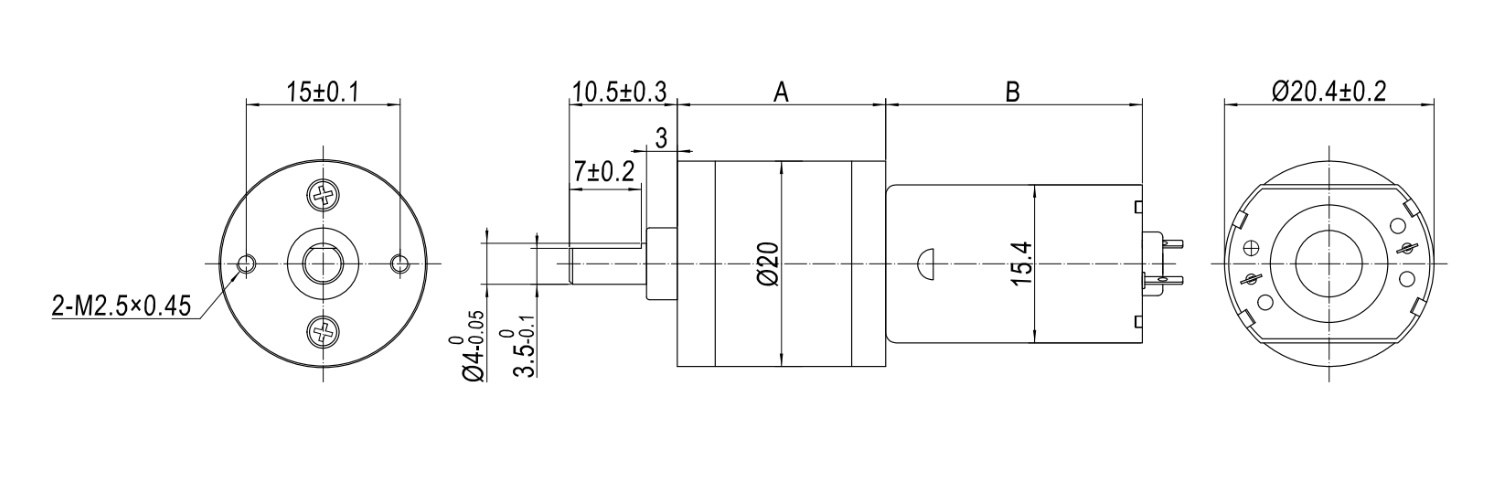

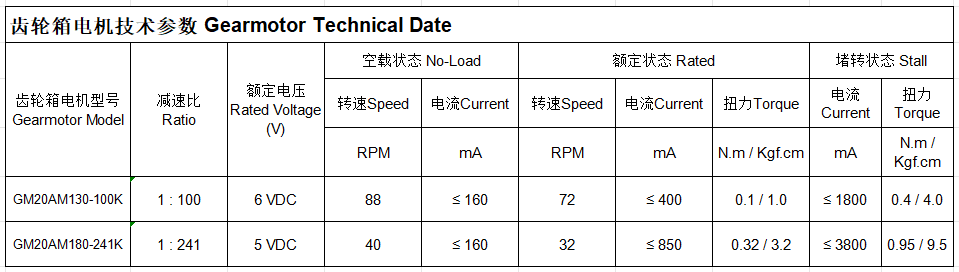

Dimensional Drawing Performance Curve Diagram

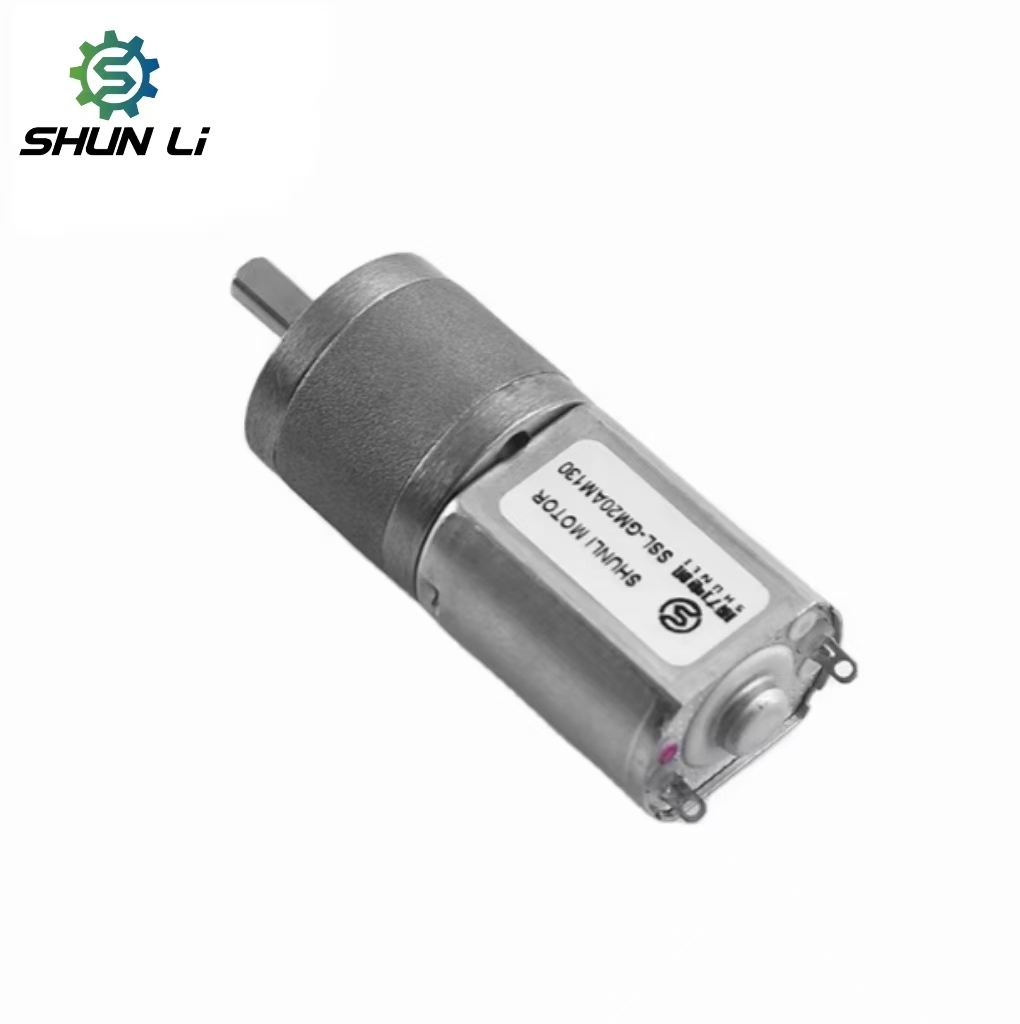

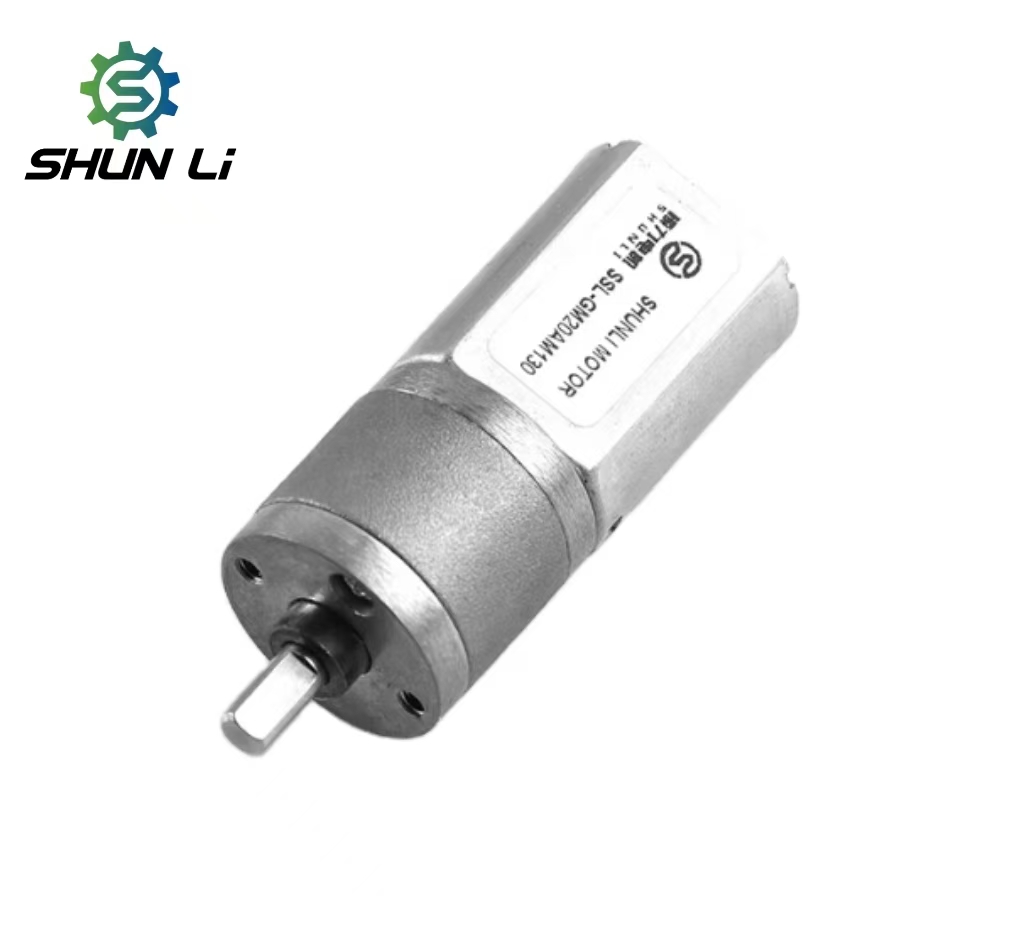

Detail Angle 1 Detail Angle 2 Detail Angle 3 Detail Angle 4 Detail Angle 5 Detail Angle 6
Frequently Asked Questions

Q Are you trading company or manufacturer?

We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

Q What is the payment term for a new customer?

We can draw up an Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.

Q I can't find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customer's requirements.

Q Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

Q How is your Quality Control?

We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.

Q What basic information is needed to get a custom motor recommendation?

Please provide your requirements regarding rated voltage, output speed, torque parameters, dimensions, and the operating environment of your application.

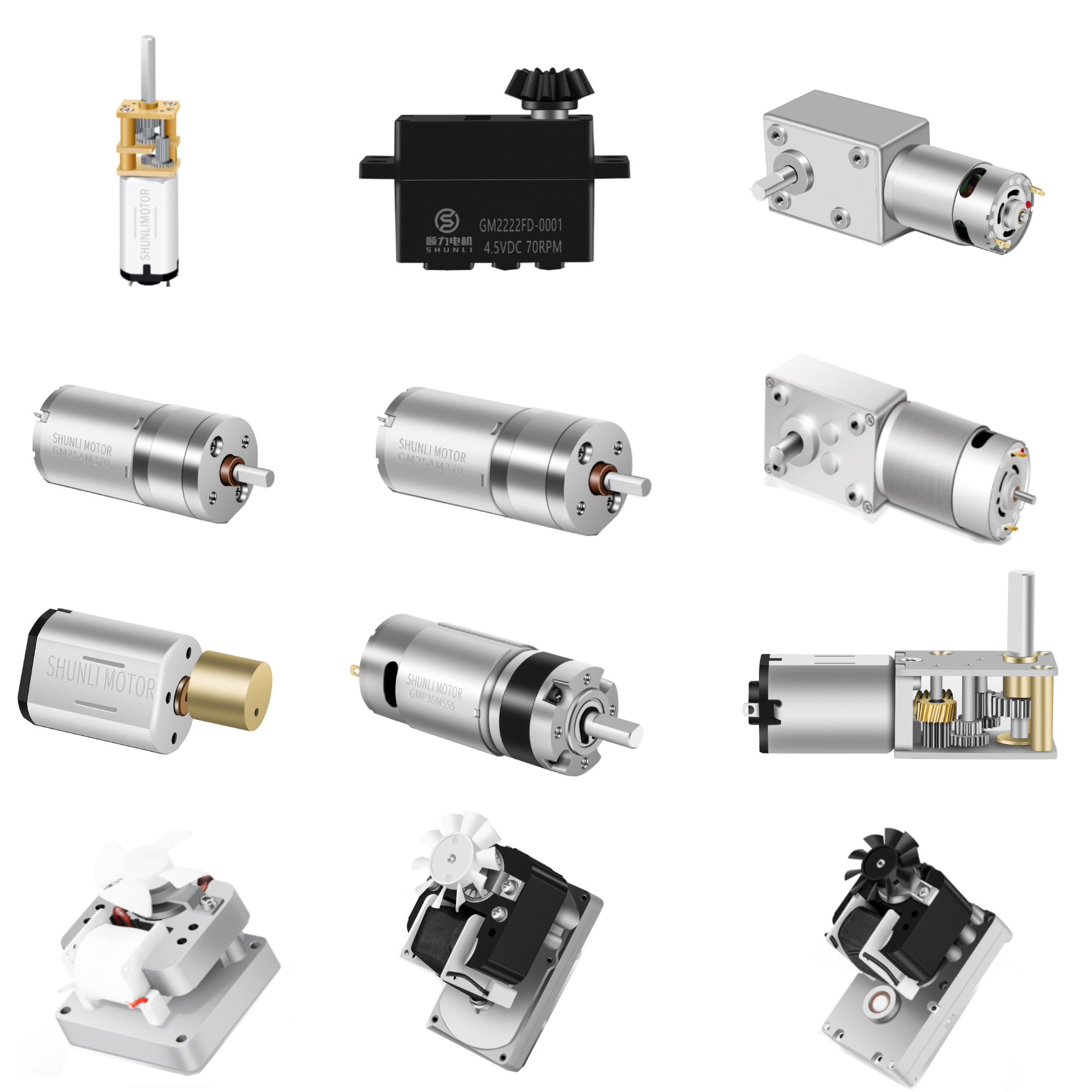

Related Products
