Home > DC Gear Motor > 90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products

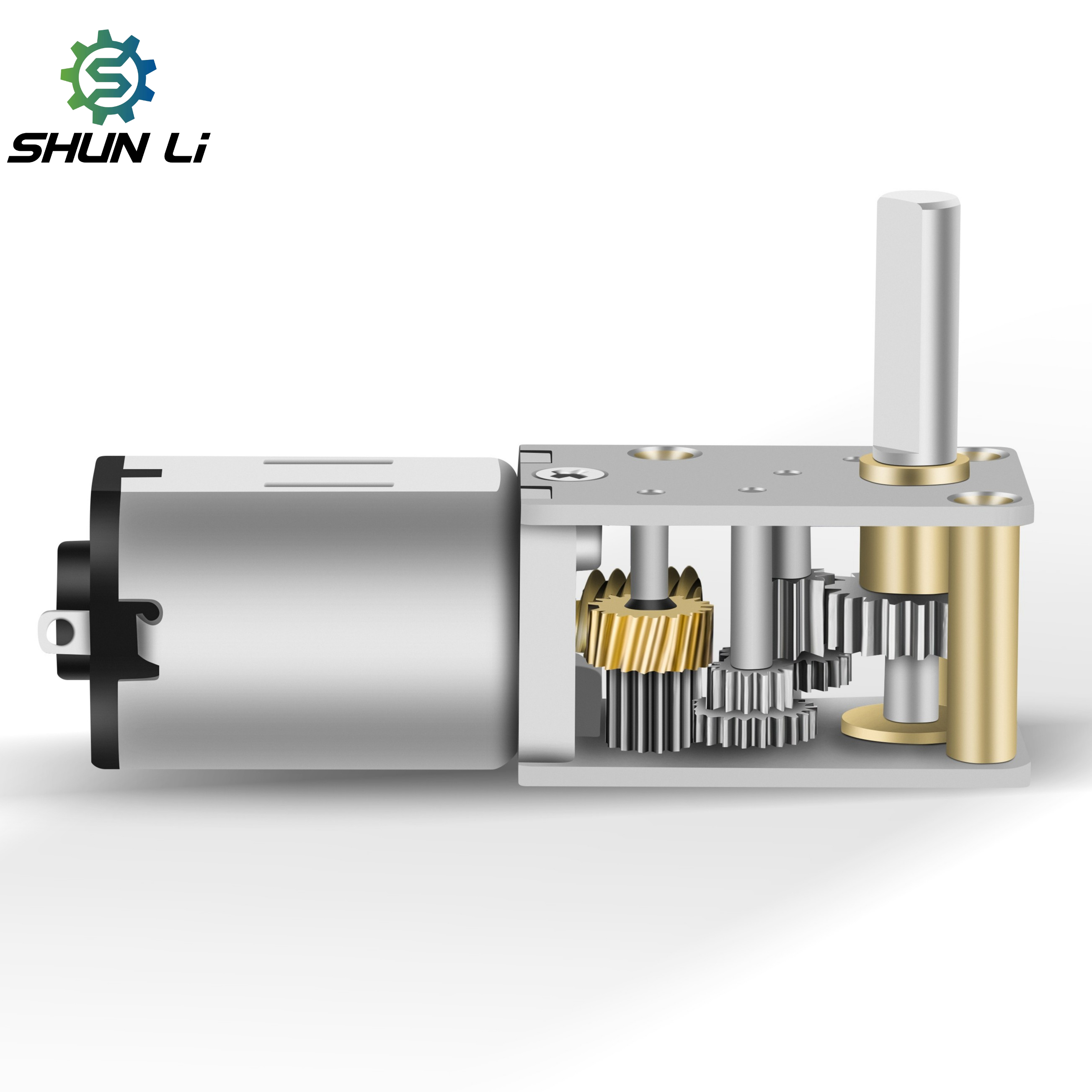

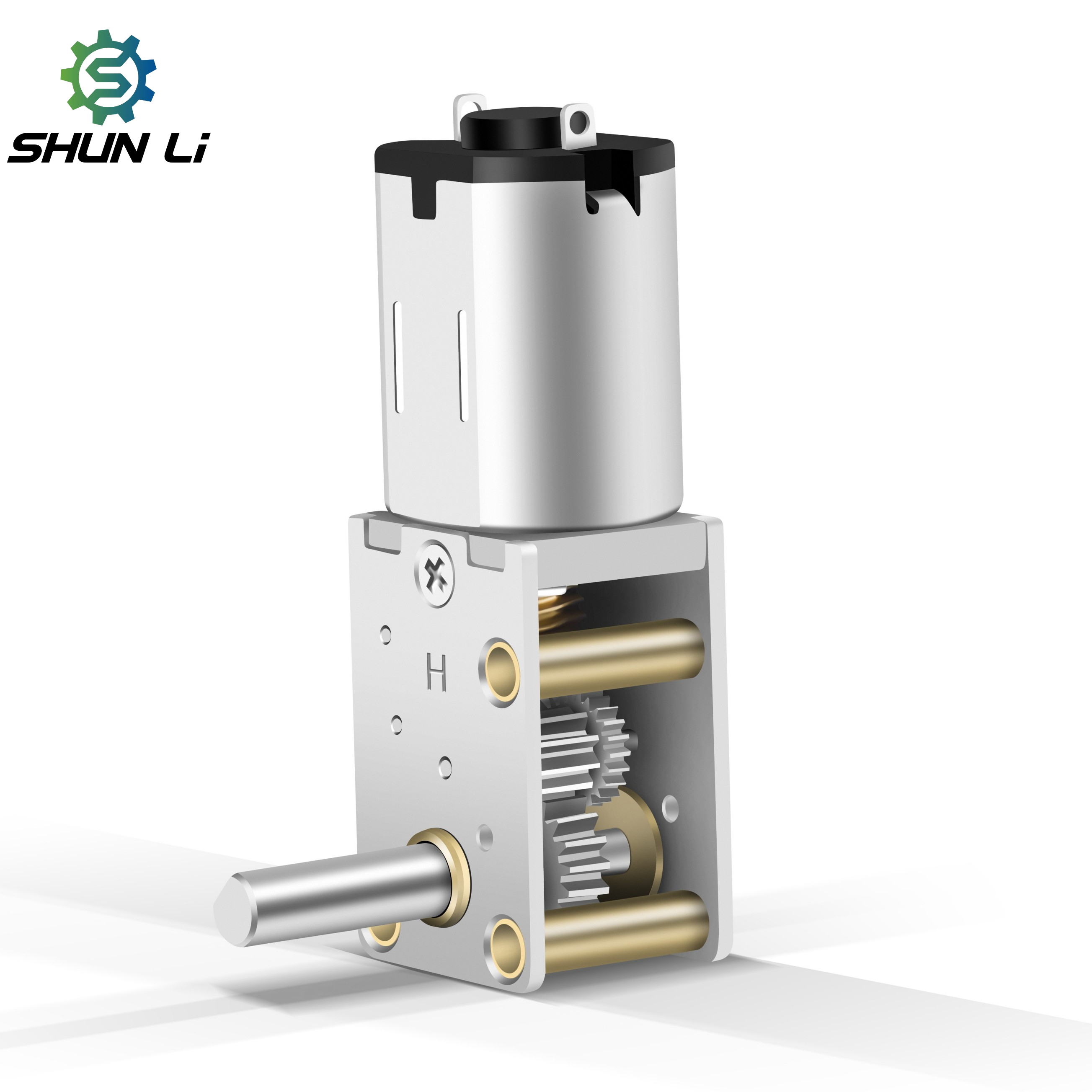

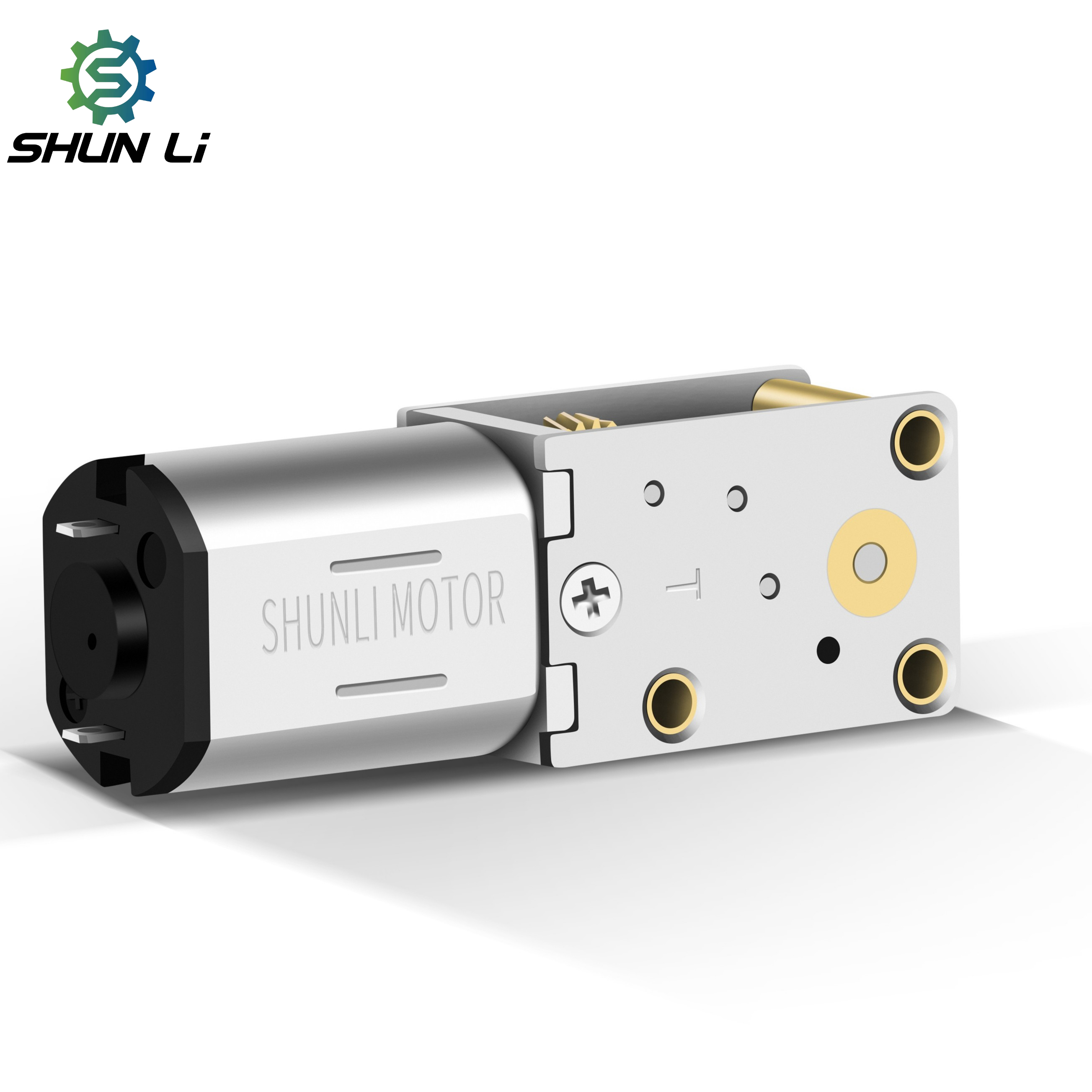

90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
1 / 5
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products

90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products

Send Inquiry

Product Description

DC Motor Banner
GM1220EMN20/N30 Gearbox Motor
Product Model GM1220EMN20/N30
Gearbox Length 20±0.2mm
Speed 22RPM-145RPM
Voltage 4.5V~12V
Rated Torque 8 mN.m/120 mN.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

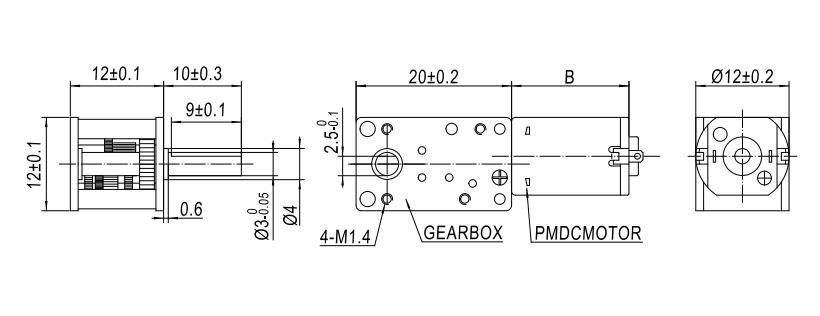

Micro Gear Motor Dimensions Diagram

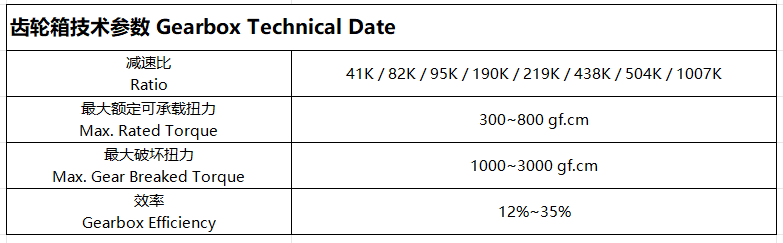

DC Motor Performance Curves

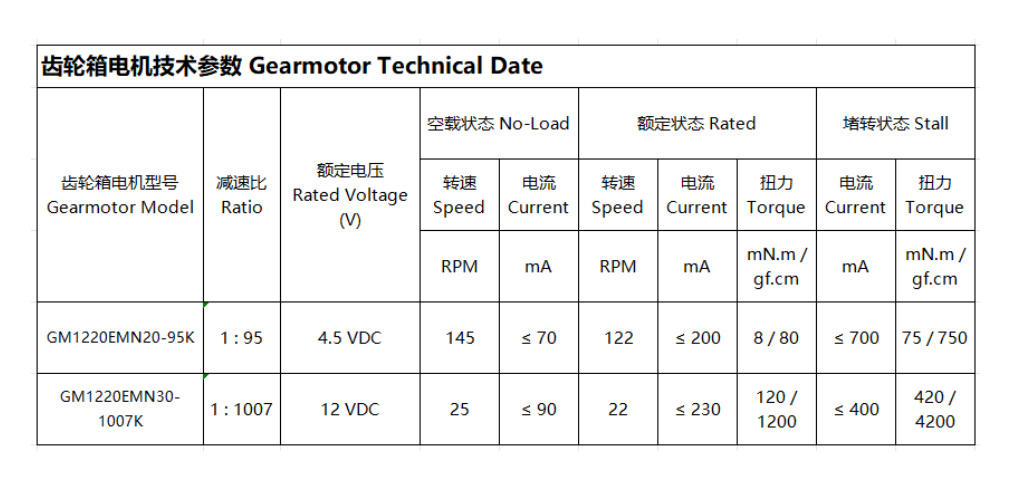

DC Motor Components View

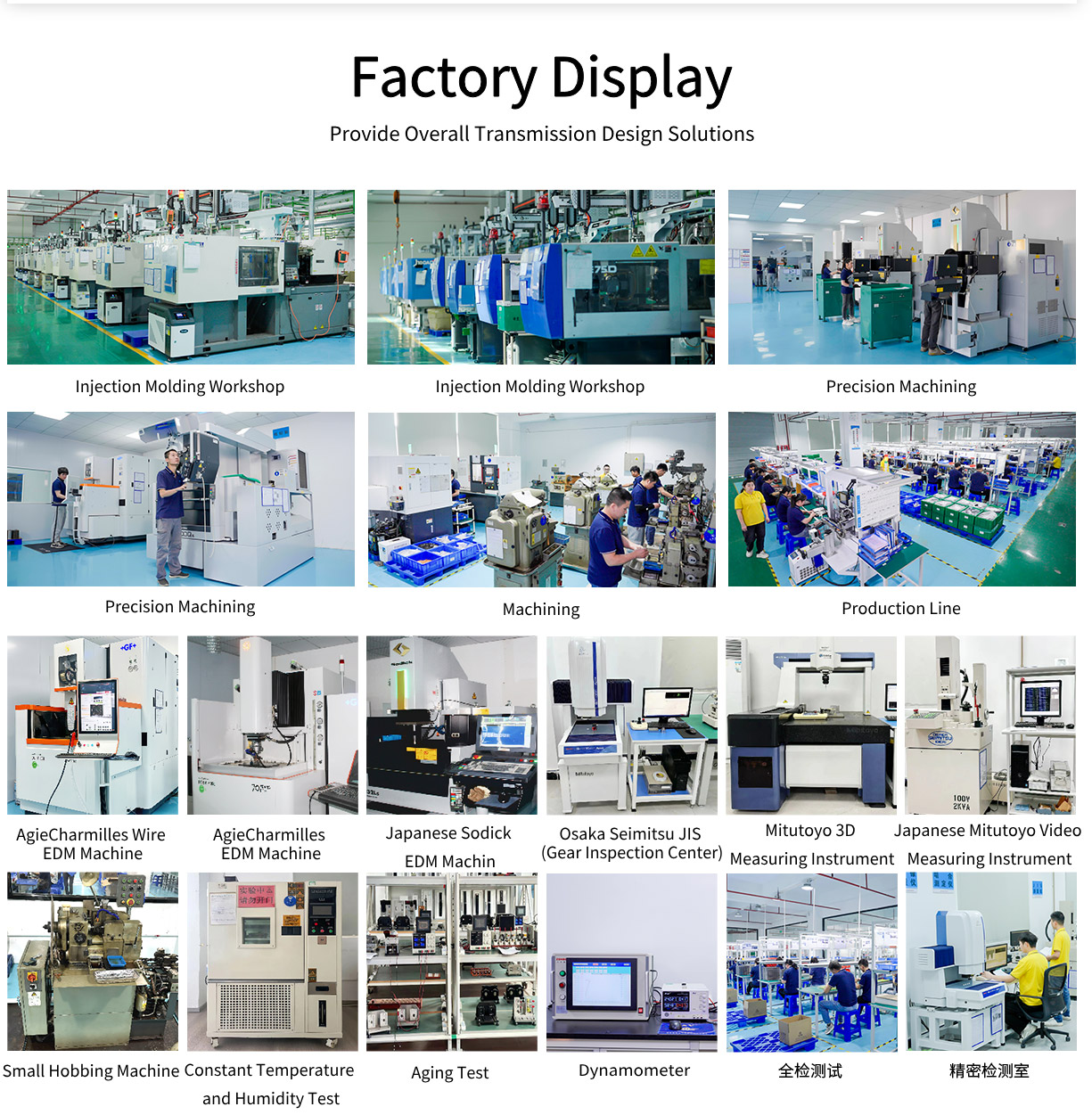

Micro Motor Production Details 1
Micro Motor Production Details 2
Micro Motor Production Details 3
Micro Motor Production Details 4
Micro Motor Production Details 5
Micro Motor Production Details 6
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of professional manufacturing experience.
What are the payment terms for new customers?
We can establish an online assurance order for our new customers, which supports online payment via Credit Card, Visa, MasterCard, PayPal, or T/T.
I cannot find a suitable motor on your website, can you customize the motor for me?
Yes. We provide customization options for transmission dimensions and motor parameters to meet specific customer requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certificates. If you require any other specific certificates, we can apply for them for you.
How do you handle Quality Control?
We employ professional inspectors on each production line process. After assembly is complete, we use dedicated quality testing equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers to ensure performance.
