Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner

Product Description

Product Banner
📋 Product Description
Customized 12mm micro dc gear motor, Non-captive stepper motor, miniature 5v stepper motor for medical equipment.
🔍 Motor Specifications & Reference Drawing

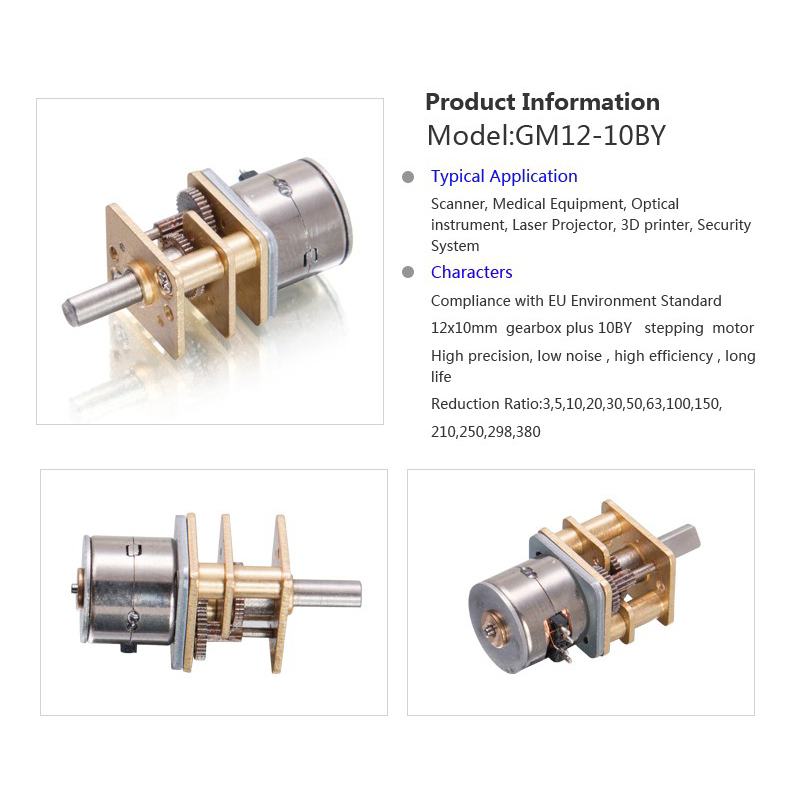

Miniature DC Motor Visual

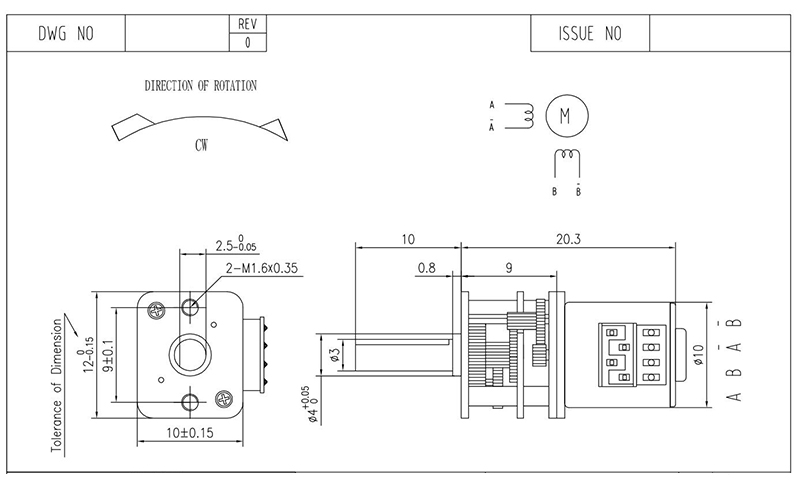

GM12-10BY Reference Drawing
Reference Drawing: GM12-10BY
📊 Reference Datasheet
Gearbox Technical Data
Number of stages 1 2 3 4 5
Ratio 4K / 4.75K 16K / 19K / 22.6K 64K / 74K / 90K / 107K 256K / 304K / 361K / 429K / 509K 1024K / 1216K / 1444K / 1715K / 2036K / 2418K
Gearbox Length "L" (mm) 13.3 16.8 20.3 23.8 27.3
Max. Rated Torque 1.0 Kgf.cm 2.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm
Max. Gear Breaked Torque 3.5 Kgf.cm 6.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm
Gearbox Efficiency 80%~90% 70%~80% 60%~70% 50%~60% 40%~50%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (N.m / Kgf.cm) Current (mA) Torque (N.m / Kgf.cm)
GMP22M130-64K 1 : 64 6 VDC 138 ≤ 160 110 ≤ 450 0.095 / 0.95 ≤ 1700 0.42 / 4.2
GMP22M180-256K 1 : 256 5 VDC 38 ≤ 180 30 ≤ 1050 0.32 / 3.2 ≤ 3900 1.25 / 12.5
⚙️ Product Configurations

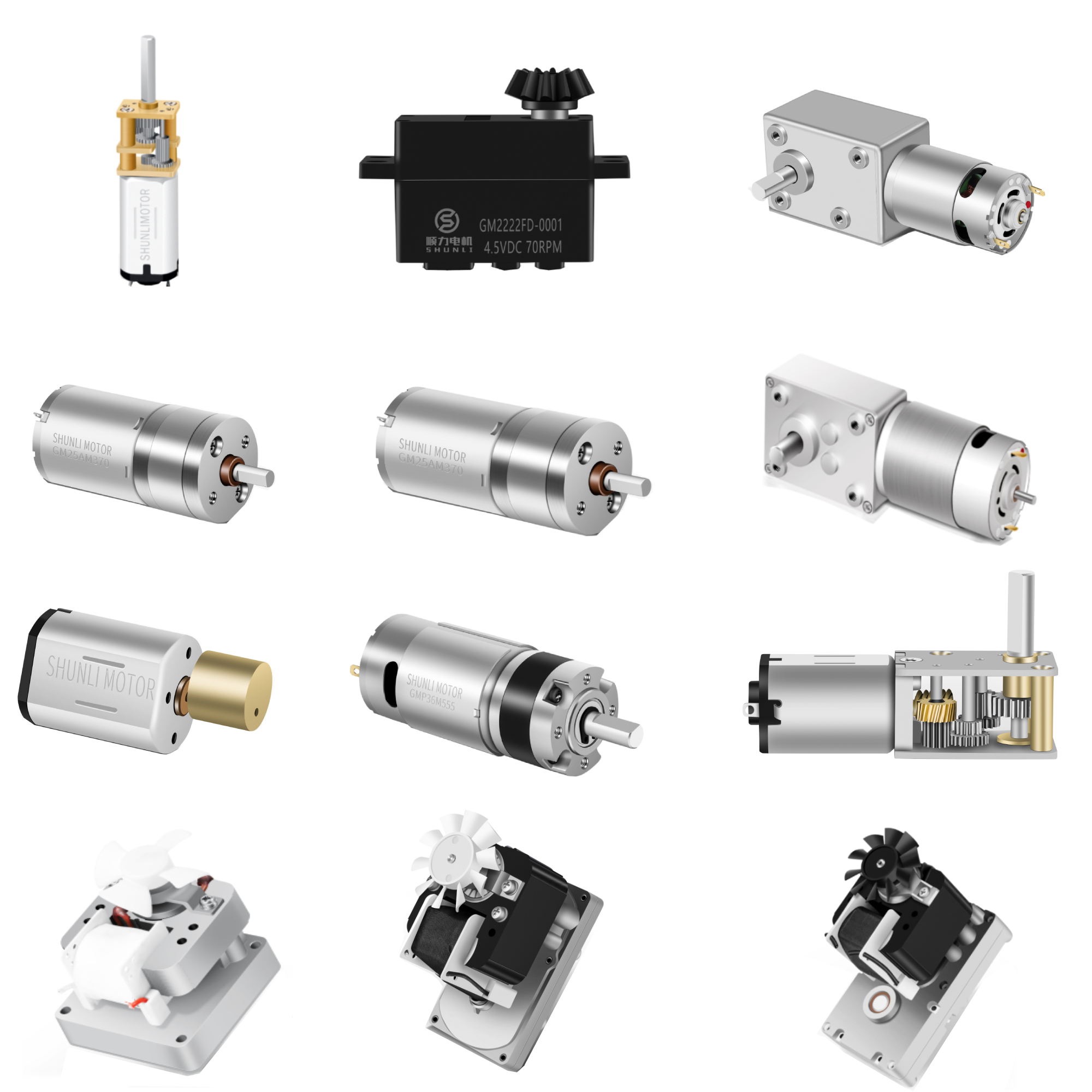

Various Worm Gear and DC Motors
Micro Planetary Gear Motors and Stepper Motors
🛡️ Quality & Certifications
Product Certifications
Customer Evaluations and Feedback
🏭 Production Facility & Quality Control
Production Base Front Desk
Factory Workshop Flow
Testing and Assembly Line
Looking forward to your feedback!
Feedback and Inquiry Banner
💡 Frequently Asked Questions

Q1: Are you a trading company or a manufacturer?

A: We are a factory specializing in micro DC motors and DC gear motors with over 14 years of development and manufacturing experience.

Q2: What are the payment terms for new customers?

A: We support online assurance orders (payable via Master Card, Visa, etc.), PayPal, and T/T (Telegraphic Transfer) to ensure safe and flexible transactions.

Q3: I cannot find a suitable motor on your website. Can you customize it?

A: Yes, we offer extensive customization services. We can adjust the specifications, gearbox configuration, shaft dimensions, and electrical parameters to meet your application needs.

Q4: Do you hold certifications for your motors?

A: Yes, our motors are compliant with CE, FCC, ISO, and other relevant quality standards. We can also coordinate additional testing for specific region-based certifications if required.

Q5: How do you manage product quality control?

A: We have professional inspection personnel stationed at each stage of the production line. Fully assembled motors undergo extensive mechanical and electrical test runs using advanced apparatus, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Cycle Testers, Temperature Test Chambers, and Noise Analysis equipment.

Q6: What is the typical efficiency of these gearboxes?

A: Gearbox efficiency varies by stage design: 1-stage gearboxes feature 80%~90% efficiency, while 5-stage gearboxes run at approximately 40%~50% efficiency under standard parameters.
