12v 6v High Speed 15000rpm 9500Rpm 750/755 Dc Motor Synchronous Motor 12v DC for Mini Printer

Product Description

6v 12v High RPM 9000rpm 15000rpm 750/755 DC Motor

Motor Specification Customization Options are Available.

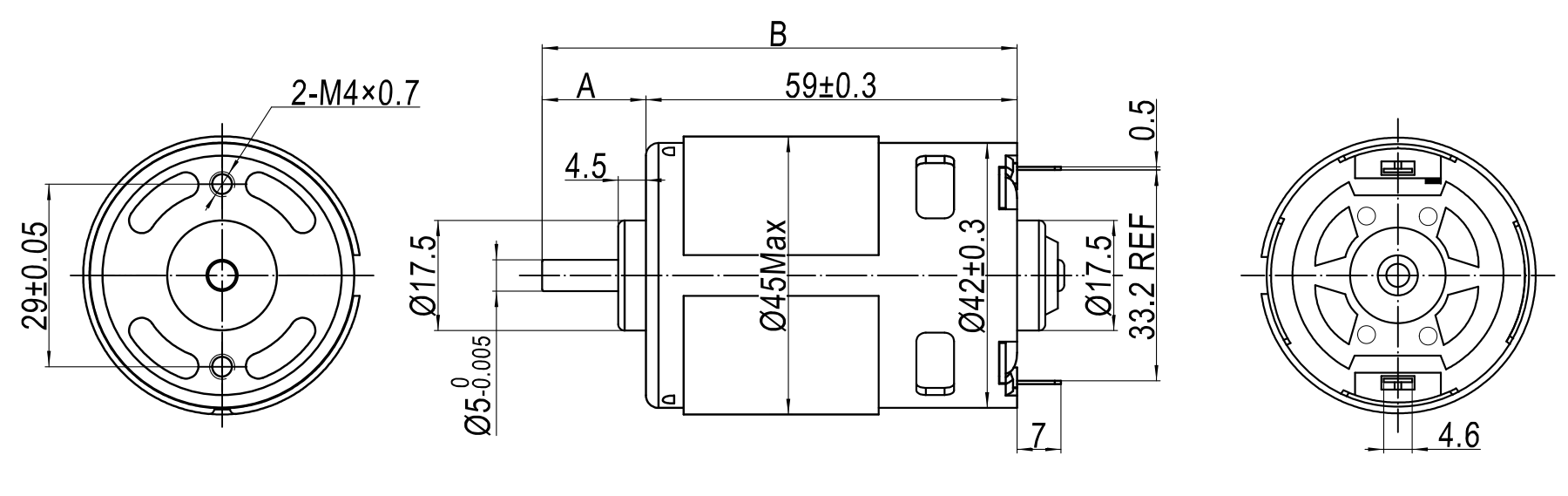

Reference Drawing

Model Reference: RS-755 H

The shaft length can be customized based on requirements.

Technical Specifications

Review the detailed technical parameters of our high-speed PMDC motors below:

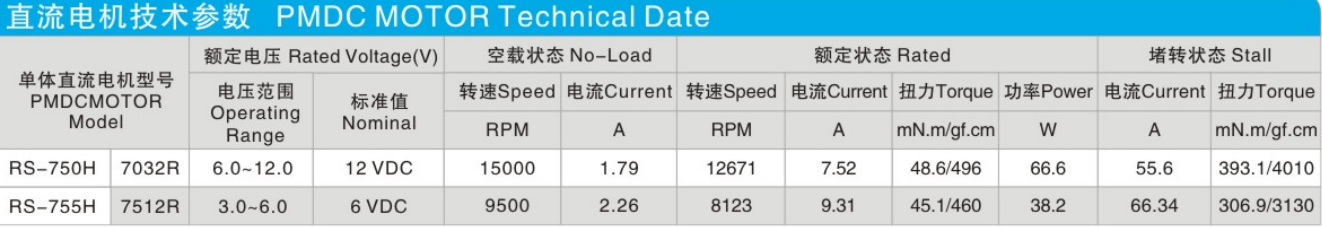

PMDC MOTOR TECHNICAL DATA
Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-750H	7032R	6.0 - 12.0	12 VDC	15000	1.79	12671	7.52	48.6 / 496	66.6	55.6	393.1 / 4010
RS-755H	7512R	3.0 - 6.0	6 VDC	9500	2.26	8123	9.31	45.1 / 460	38.2	66.34	306.9 / 3130

Product Application

These synchronous high-speed DC motors are widely applied in industrial equipment, automated setups, and mini-printers requiring high efficiency and reliability.

Certifications

All motor production processes are thoroughly certified, ensuring standard compliance and premium performance consistency.

Why Choose Us

1. Advanced Production Facilities

We are a specialized factory focusing on motor design and production for more than 14 years. Operating three modern manufacturing bases across Shenzhen, Huizhou, and Dongguan, our professional R&D group and highly experienced engineering staff ensure a reliable, top-quality manufacturing process.

2. Rigorous Quality Control

To secure standard consistency, every component undergoes inspection from incoming raw materials to final packaging. Rigorous testing is built into each production step, cementing high-quality standards as our foundation for development.

3. Customer Service Strengths

High credibility supplier with a verified track record.

100% on-time delivery rate ensuring your supply chain runs smoothly.

Standard samples ready within 2 weeks; custom prototypes built in 3 weeks.

Timely communication: all messages and inquiries are answered within 2 hours.

Frequently Asked Questions (FAQ)

Are you a trading company or a manufacturer?

We are a specialized manufacturing factory focusing on high-performance micro DC motors and DC gear motors for over 14 years.

What payment terms do you support for new accounts?

We can establish a Trade Assurance Order online, supporting major credit cards, Visa, PayPal, and wire transfers (T/T).

Can you customize parameters if a model is not listed?

Yes. We specialize in custom designs tailored directly to your specific technical standards and size requirements.

What certifications do your micro motors hold?

Our products are fully certified with CE, FCC, ISO, and RoHS standards. Additional certifications can be acquired upon request.

How do you maintain strict quality control?

Each assembly line is monitored by dedicated QC professionals. Finished units undergo rigorous mechanical testing via Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Chambers, and Noise Analysis equipment.

What specific parameters of the DC motors can be customized?

We can customize the rated voltage, operating speed, torque output, shaft dimensions (length/shape), and connection interfaces to match your machine setup.

Looking forward to your feedback!

Please reach out to discuss your specific custom requirements or to request a quote.
