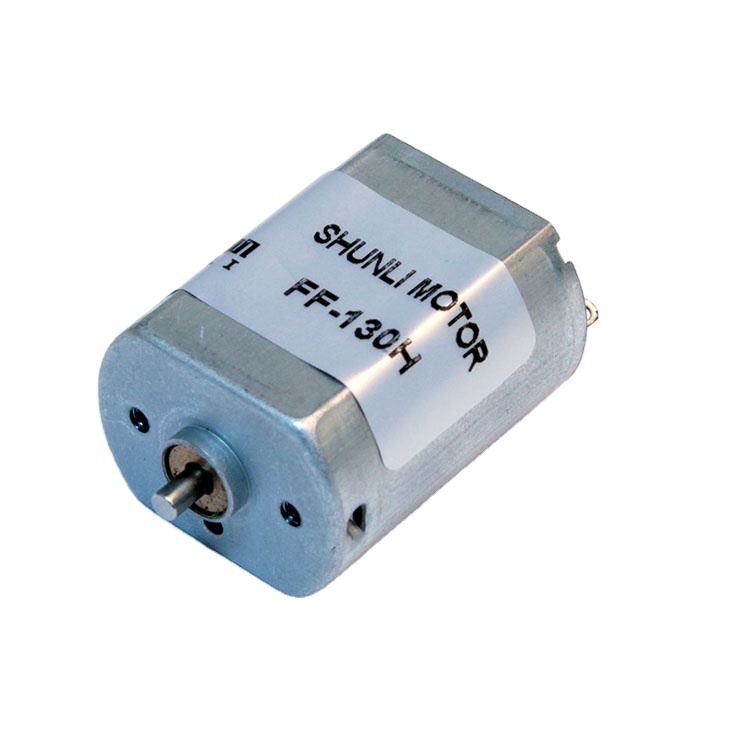

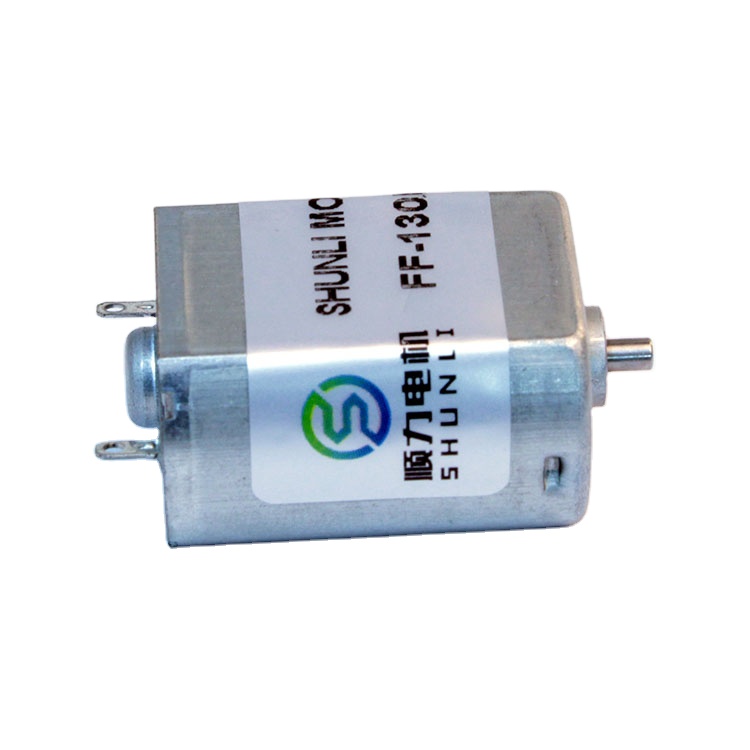

Mini electric hobby motor 3V-12V 25000 RPM powerful magnetic propeller with shaft for toy
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage(V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | mA | RPM | mA | mN.m / gf.cm | W | mA | mN.m / gf.cm | ||||
| FF-130PA | 16155 | 2.0~3.0 | 2.3VDC | 4000 | 70 | 2500 | 300 | 1.32/13.5 | 13.8 | 760 | 3.92/40 |
| 17145 | 3.0~6.0 | 6VDC | 11500 | 100 | 10000 | 390 | 1.27/13 | 1.33 | 2300 | 10/102 | |
| FF-130SH | 2356 | 1.5~3.0 | 3VDC | 12800 | 270 | 10337 | 1130 | 1.9/19.4 | 2.08 | 4750 | 10/102 |
| FK-130PH | 07555 | 6.0~9.0 | 7.19VDC | 2700 | 20 | 1999 | 50 | 0.8/8.16 | 0.17 | 150 | 3/30.6 |
Click on the tilt font to know more parameters!
We're factory. We specialize in micro dc motor and dc gear motor more than 14 years.
We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
Yes, we can customize a suitable motor according to our customer's requirements.
Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
We have professional checking staff on every production line process. After finishing the whole motor, we have entire quality machine to test the motor, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
