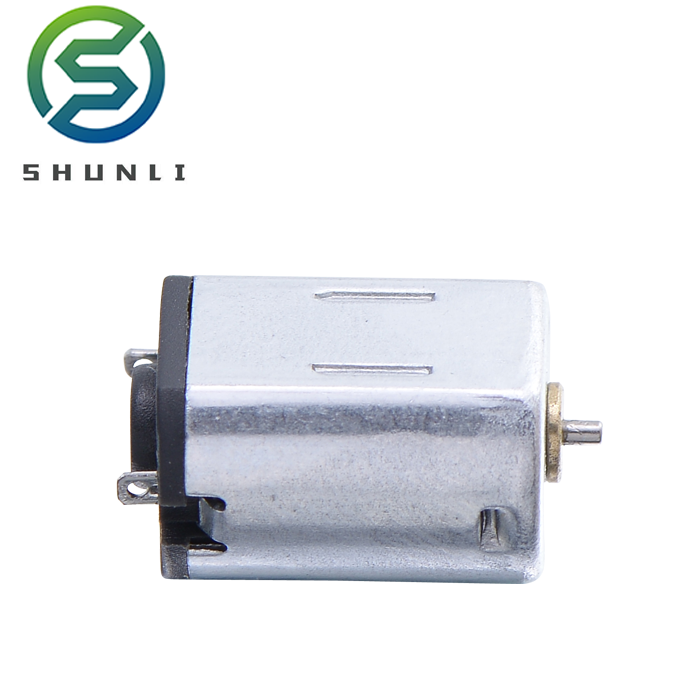

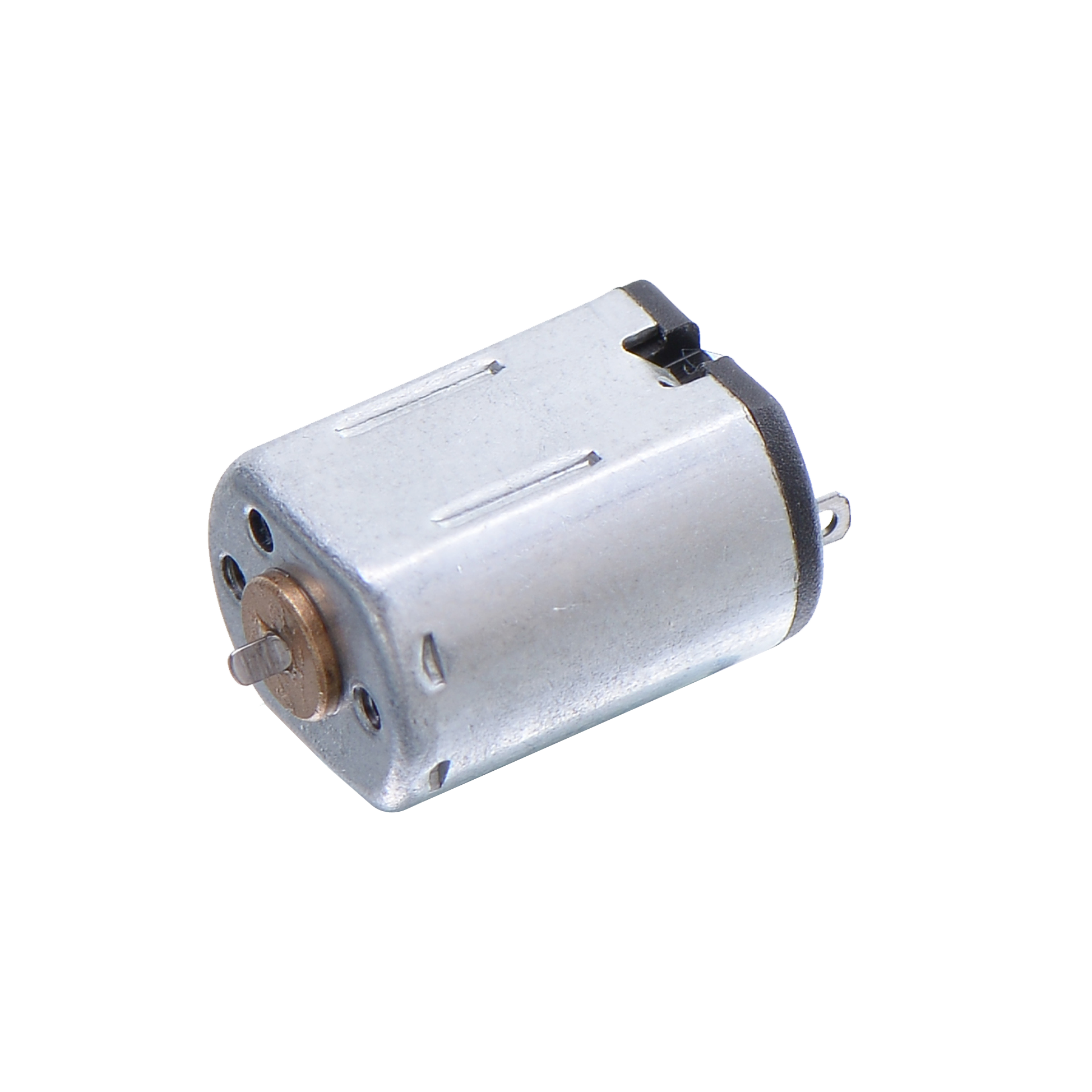

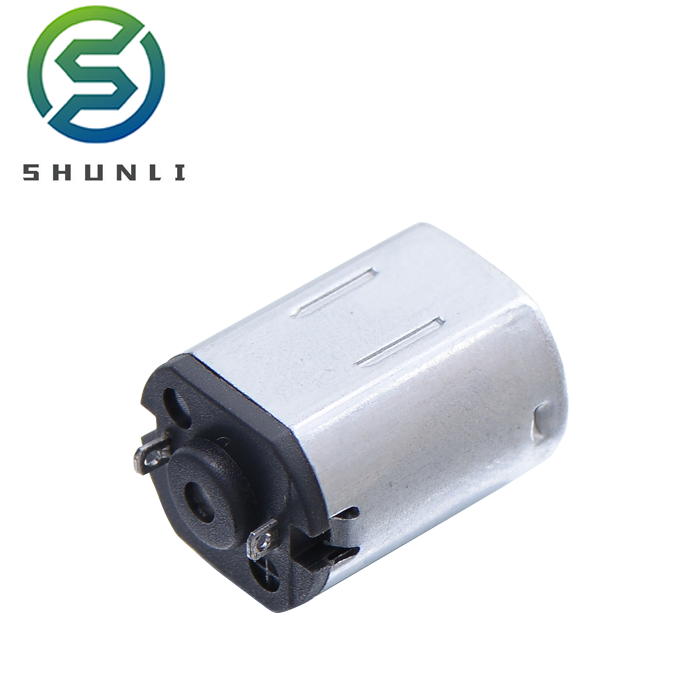

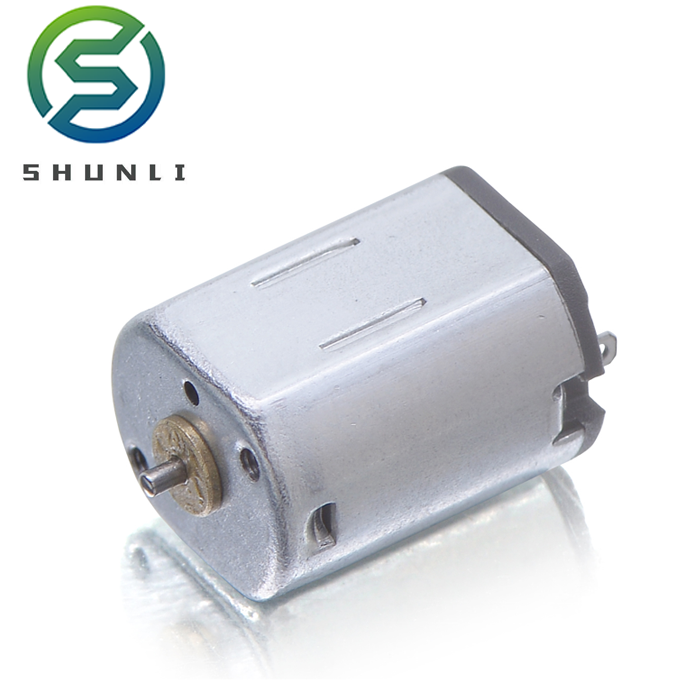

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor

1 / 4

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor

Send Inquiry

Product Description

Promotion

Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.

Product Description

PMDC MOTOR Technical Data
PMDC MOTOR Model	Rated Voltage (V)		No-Load		Rated				Stall
PMDC MOTOR Model	Operating Range	Nominal	Speed (RPM)	Current (mA)	Speed (RPM)	Current (mA)	Torque (mN.m / gf.cm)	Power (W)	Current (mA)	Torque (mN.m / gf.cm)
FF-N20VA 05240	3.0~12.0	12 VDC	16100	15	12240	60	0.3/3	0.37	210	1.2/12
FF-N20VA 08260	2.0~5.0	5 VDC	14600	30	11800	110	0.26/2.6	0.31	470	1.3/13
FF-N20TA 2818	0.8~1.5	12 VDC	34000	70	31000	1140	0.2/2	0.64	6000	1.6/16

Application

Certifications

Why Choose Us

Professional Manufacturing

Strict Quality Control

We are a factory specialized in producing motors for more than 14 years. A professional R&D team and mature management will bring you a pleasant purchasing experience.

In order to confirm quality, from the moment we receive materials to the final shipment, every step of the way is carefully checked. Quality is the basis of our development.

Our Services

We are a gold seller and in possession of high credibility.

100% on-time delivery rate confirms your product arrives timely.

Samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.

Timely reply: your message will be replied within 2 hours.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.

What is the payment term for a new customer?

We can draw up an Online Assurance Order for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal, TT, etc.

I can't find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customer's specific requirements.

Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.

How is your Quality Control?

We have professional inspection staff on every production line process. After finishing the motor assembly, we use testing equipment to test the motors, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
