🔹 Product Description

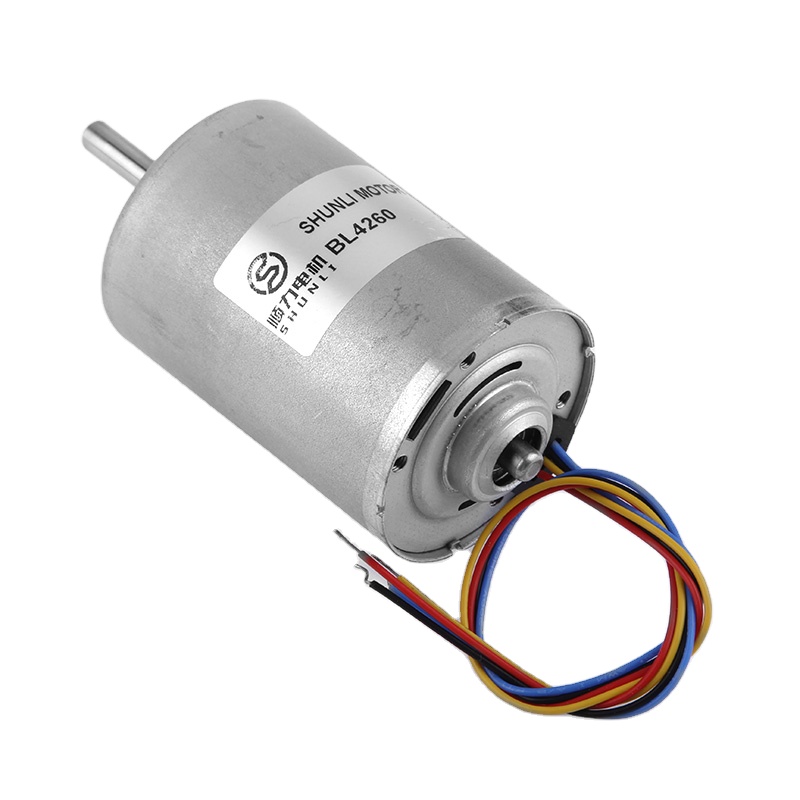

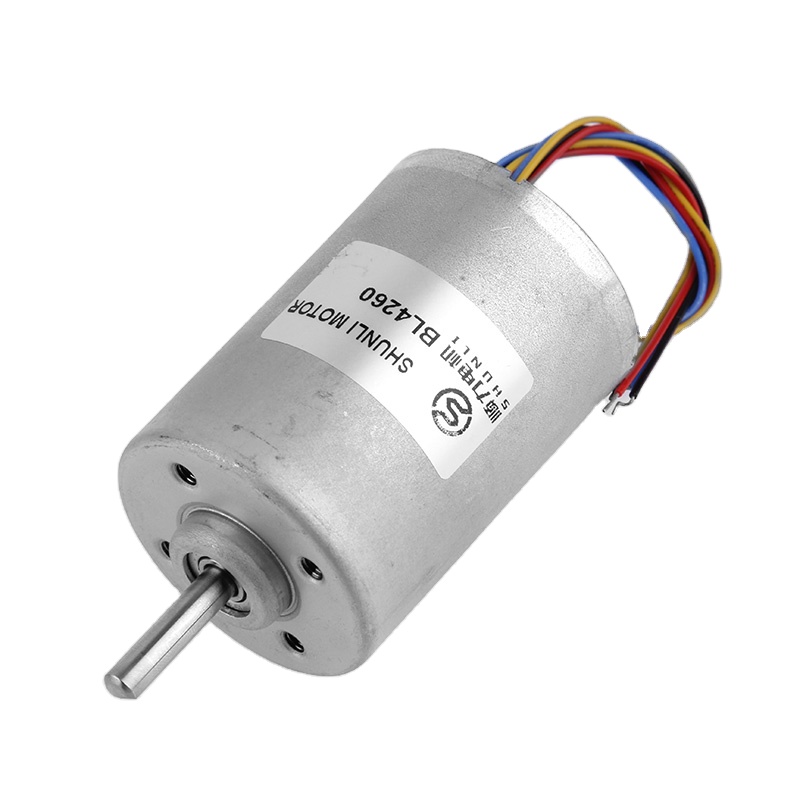

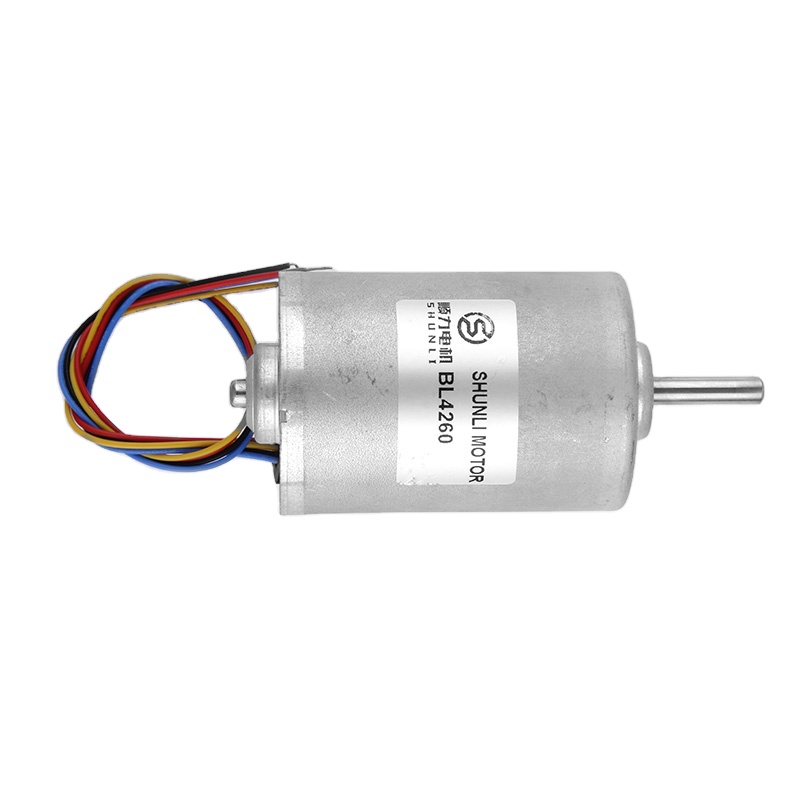

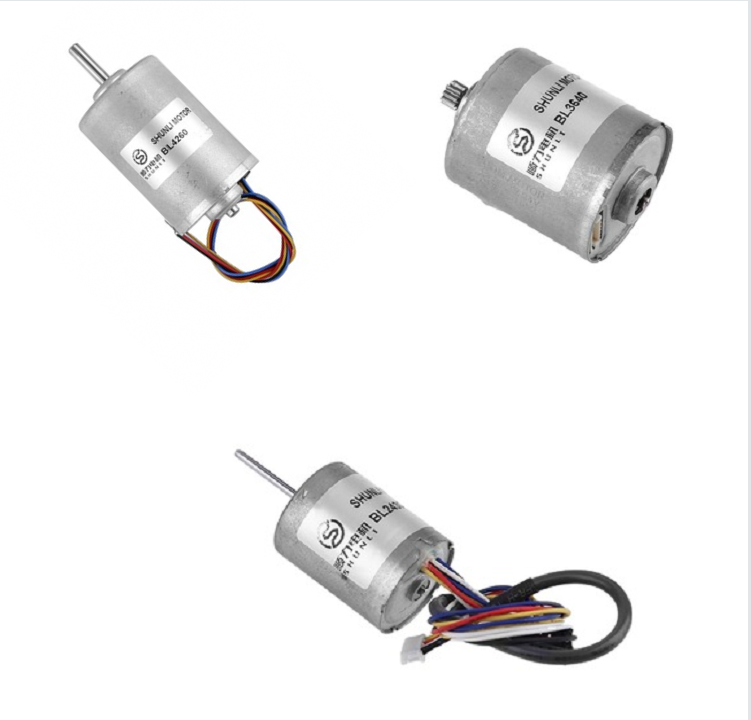

12v 18v 24v power brushless dc motor 1500 RPM 3000 RPM 4000 RPM for Washing machine/RC plane/DIY Technical tool/fan/Robot/Pump
🔹 Product Details
⚙️
Motor Customized Specification, Please Contact Us.
🔹 Reference Technical Specification
BLDC MOTOR Terminations
| PIN NO. |
PIN Arrangement |
| 1 |
VCC |
| 2 |
FG |
| 3 |
CW/CCW |
| 4 |
GND |
| 5 |
PWM |

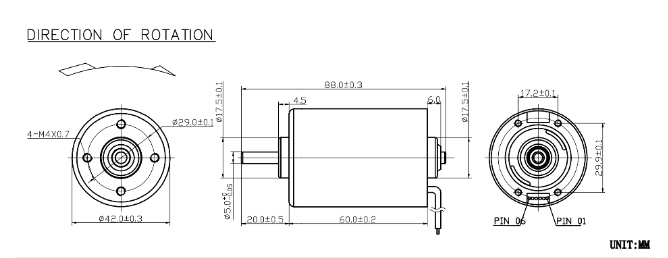

🔹 Reference Datasheet
❓ Frequently Asked Questions (FAQ)
Q1: What voltage options are available for this brushless DC motor?
The motor is compatible with various DC voltage inputs, specifically supporting 12V, 18V, and 24V applications.
Q2: What are the standard RPM options for these motors?
These micro brushless motors operate at rated speeds of 1500 RPM, 3000 RPM, and 4000 RPM, depending on your configuration and input voltage.
Q3: Can these motors be customized?
Yes, we support customized technical specifications for brushless DC motors to fit specific project requirements. Please contact us with details about your application.
Q4: What pin arrangements do the BLDC motor terminations feature?
The motor has a 5-PIN configuration: PIN 1 represents VCC, PIN 2 is FG, PIN 3 controls CW/CCW direction, PIN 4 is GND, and PIN 5 is for PWM speed control.
Q5: What are the typical applications for these micro motors?
They are widely applied in washing machines, RC planes, DIY technical tools, cooling fans, robotics, and small water pumps due to their permanent magnet structure and high torque output.
Q6: Do these brushless DC motors support speed control?
Yes, speed control is fully supported through the dedicated PWM terminal (Pin 5), allowing for precise adjustment of motor speed.
