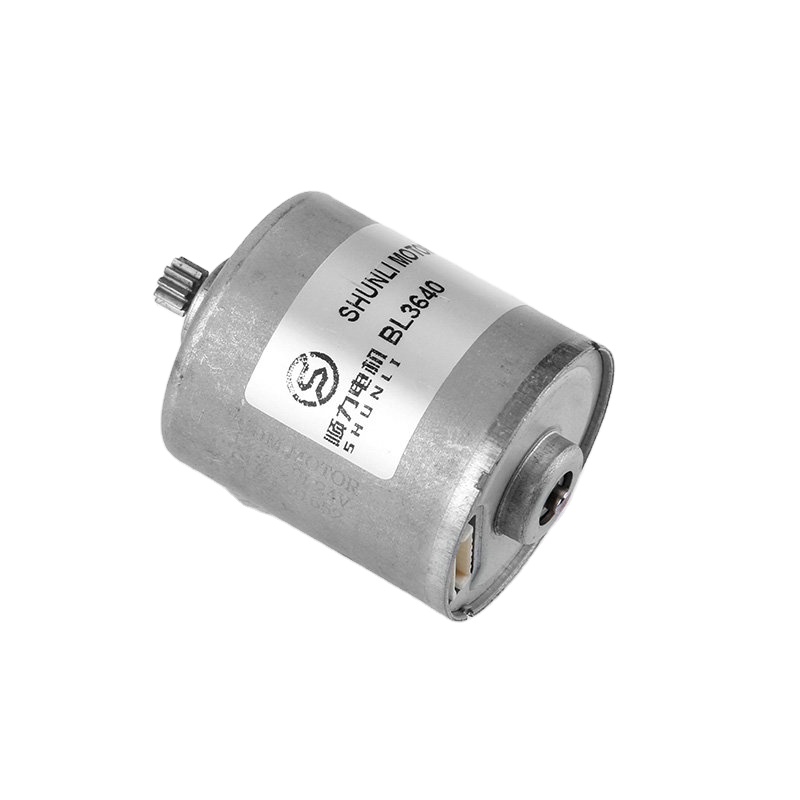

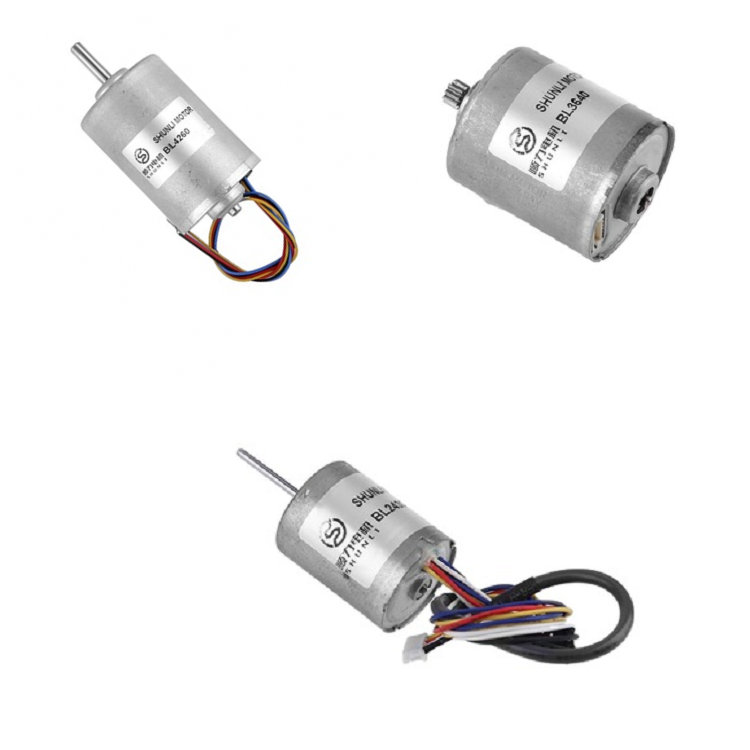

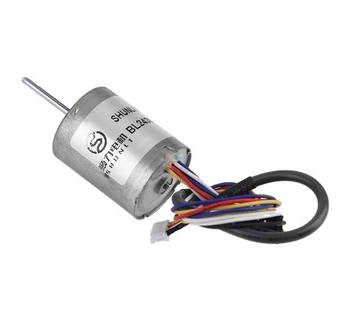

12V 18V 24V high speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC motor for fan
Product Details
Motor Customized Specification.
Reference Technical Specification
BLDC MOTOR Terminations
| PIN NO. |
PIN Arrangement |
| 1 |
VCC |
| 2 |
FG |
| 3 |
CW/CCW |
| 4 |
GND |
| 5 |
PWM |
Reference Datasheet
Frequently Asked Questions (FAQ)
What are the main voltage options available for this 36mm brushless motor?
This high-speed brushless DC motor is designed to operate efficiently across multiple voltage configurations, including 12V, 18V, and 24V systems.
What speed range can this high-speed fan motor achieve?
The motor is engineered for high-velocity cooling applications, offering standard rated speeds of 20,000 RPM, 30,000 RPM, and up to 40,000 RPM.
How is the motor speed controlled?
The motor features a dedicated 5-pin termination interface, allowing for precise speed control using Pulse Width Modulation (PWM) signal input.
What is the torque rating of this 36mm brushless motor?
Depending on the configuration, this brushless DC motor provides robust torque options ranging from 100 G.CM to 150 G.CM.
Can the direction of the motor rotation be changed?
Yes, the motor includes a CW/CCW direction control function via Pin 3 on its connection terminal interface.
