Home Application Silence 18v 16000 RPM Dc Motor for Vacuum Cleaner

Send Inquiry

Product Description

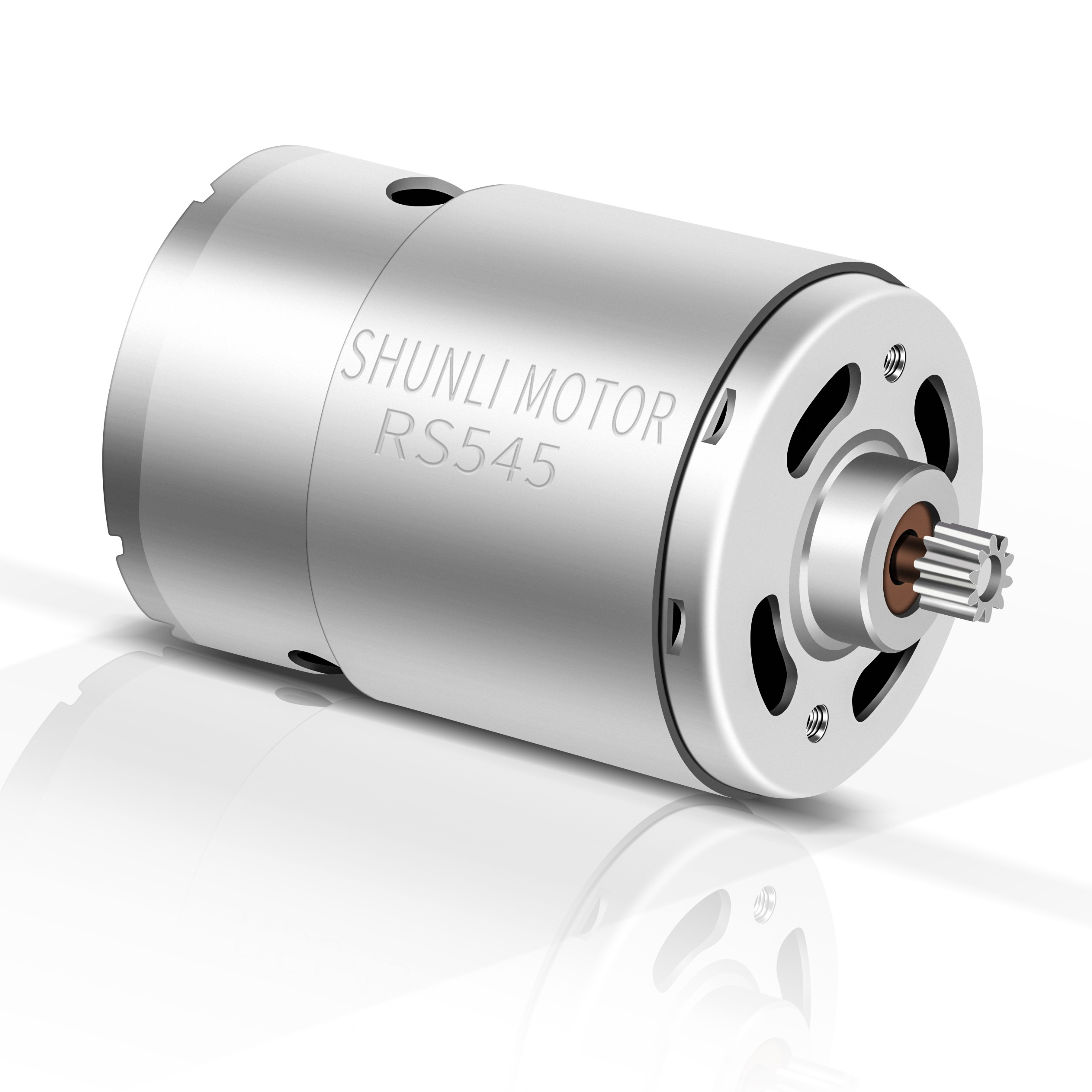

Home application silence 18v 16000 RPM dc motor for vacuum cleaner

Product Details

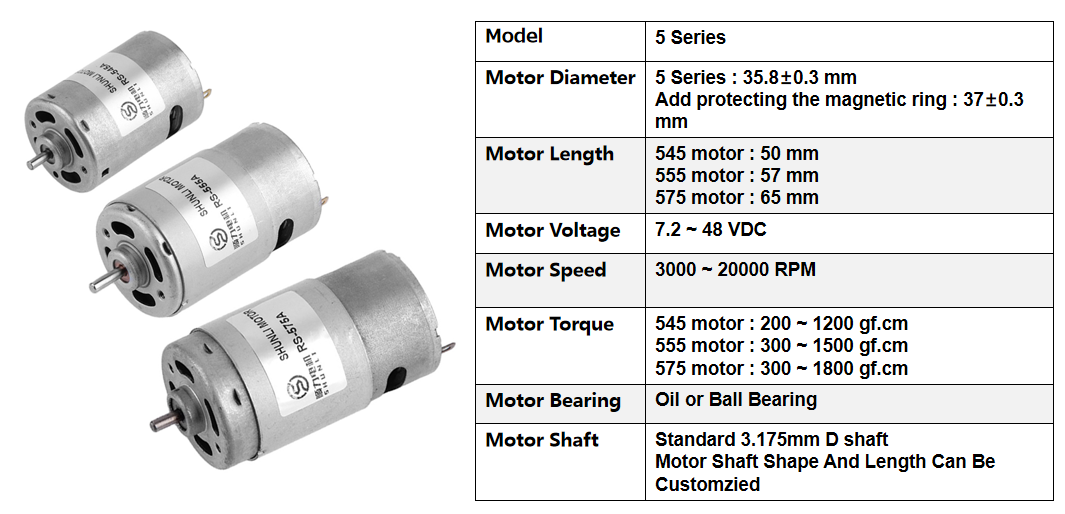

Motor Customized Specification Available

Reference Drawing

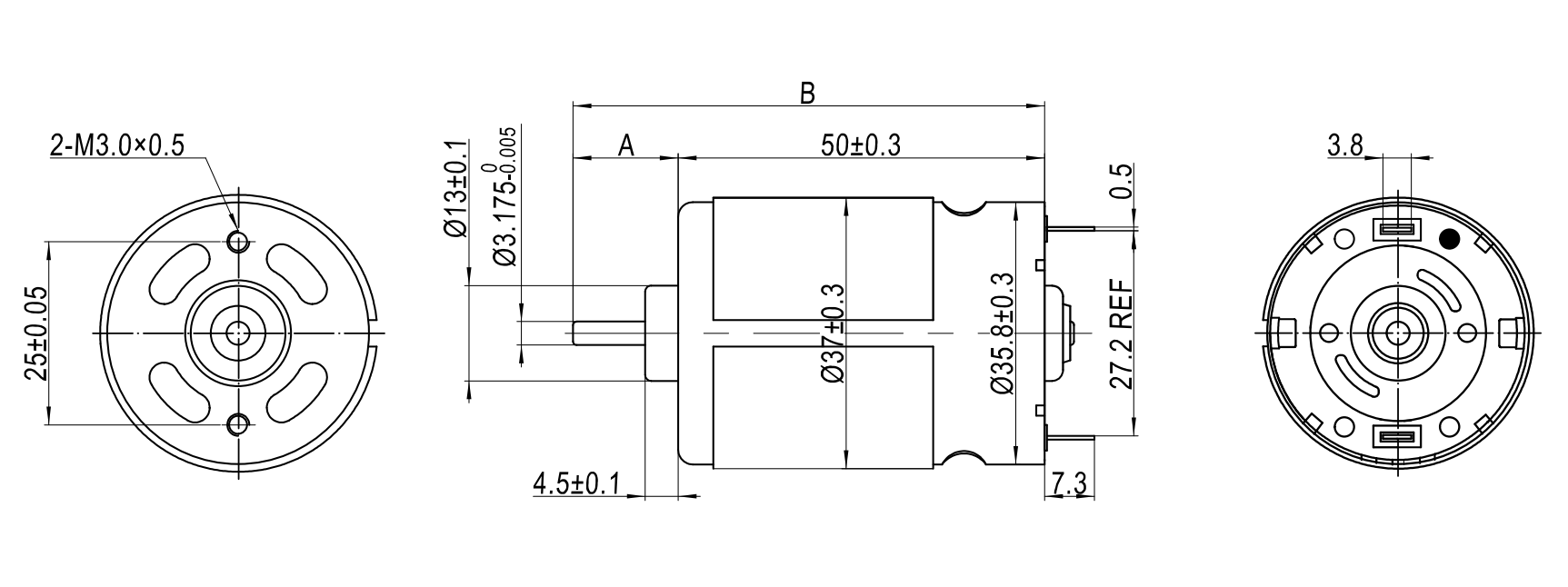

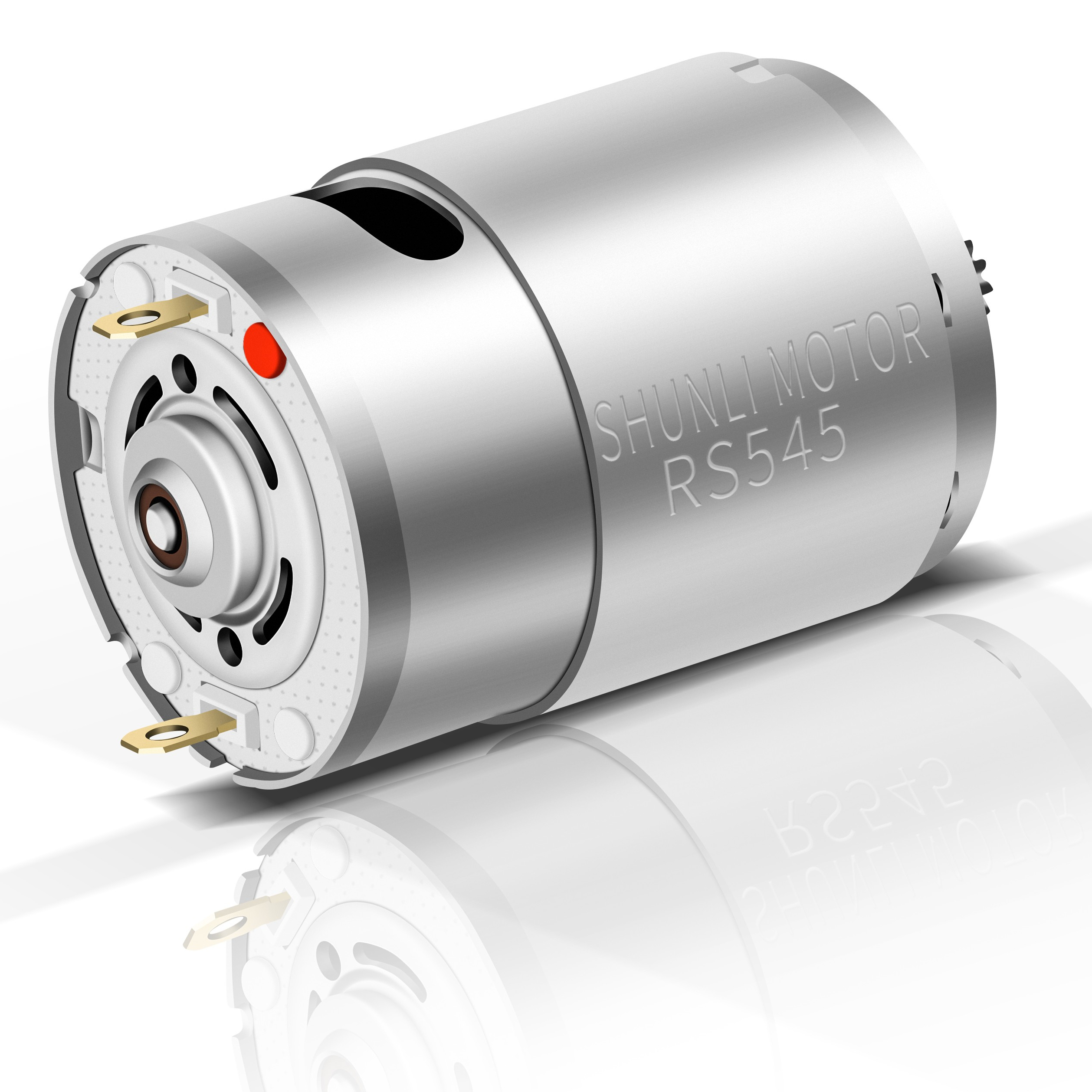

RS - 545 A

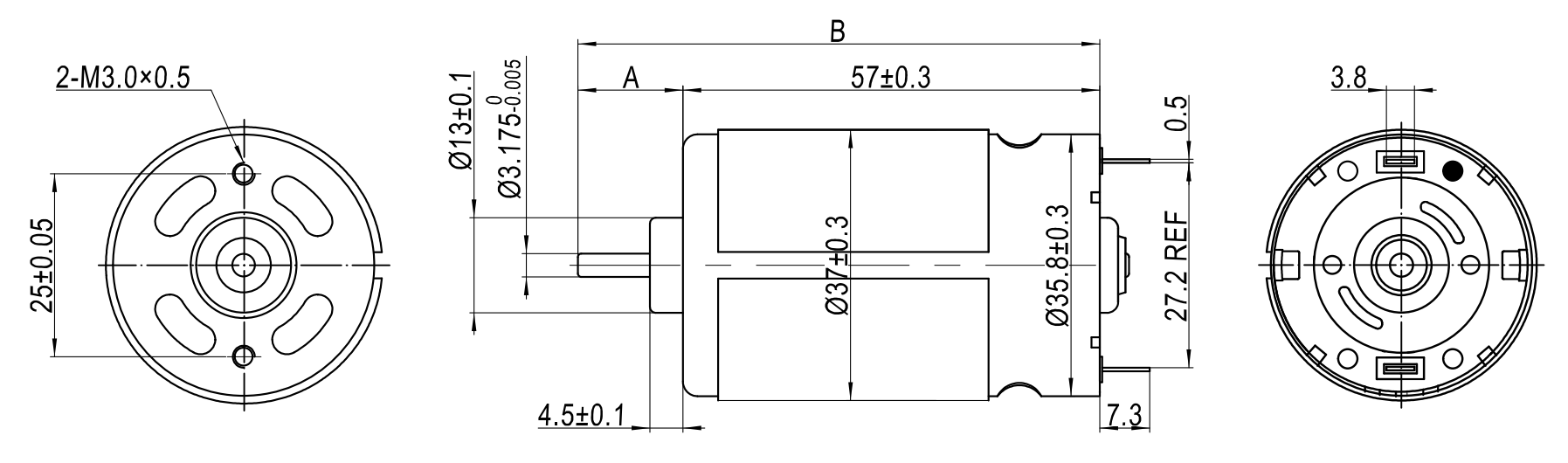

RS - 555 A

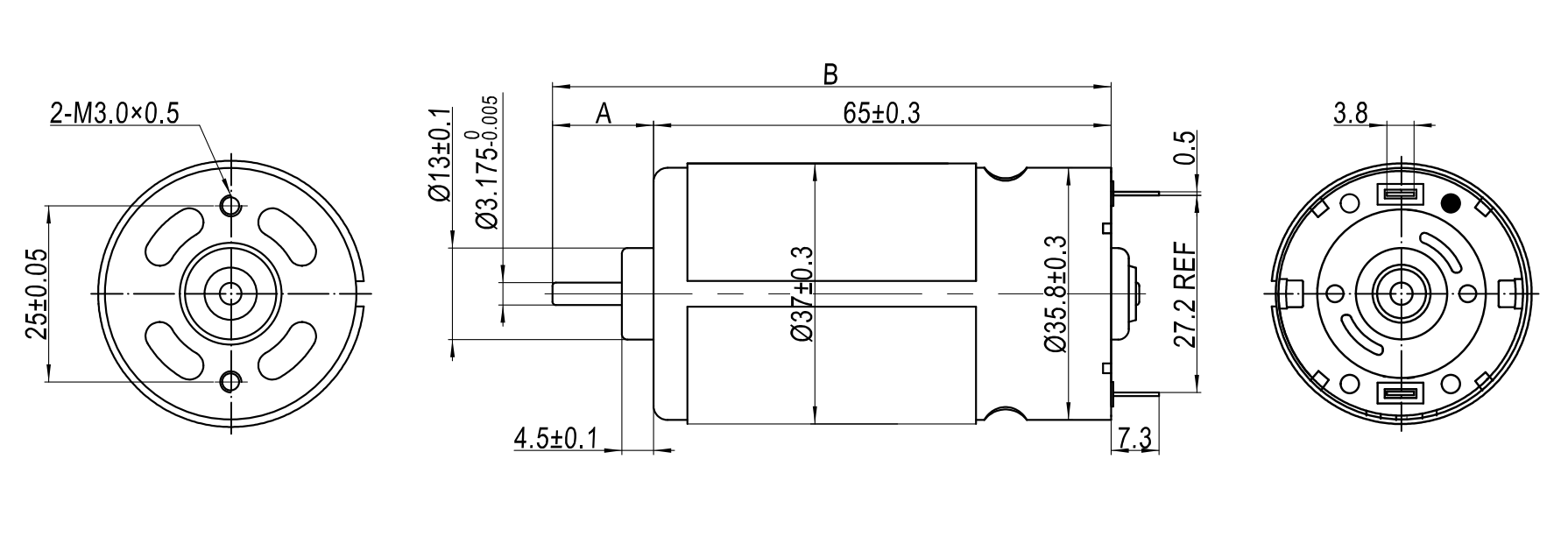

RS - 575 A

The length of shaft can be customized

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6	4.8	204/2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36	48.89	281.4/2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35	11.31	156/1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09	4.2	124.5/1270

Application

Certification

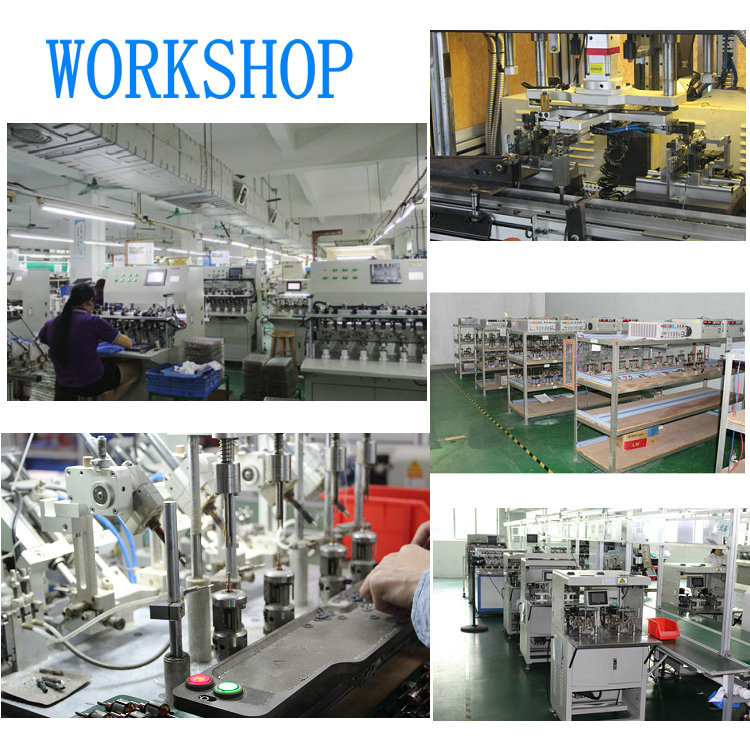

Company Profile

Established in 2005, the high-tech enterprise integrates the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.

Quality Control Test

Feedback

Looking forward to your feedback!

Frequently Asked Questions

What are the main applications of this DC motor?

This DC motor is specifically designed for vacuum cleaners, home applications, automotive devices, smart home products, medical equipment, and other high-end transmission structures.

Can the motor shaft length and specifications be customized?

Yes, we provide customization options. Both the length of the shaft and the overall motor specifications can be adjusted according to your technical requirements.

What voltage options are available for the RS-550H and RS-555H models?

The operating range is between 6.0V to 24.0V, with nominal ratings including 12VDC and 24VDC depending on the specific model configuration.

What is the maximum speed (RPM) of these motors?

Under no-load conditions, the motor models can reach speeds ranging from 4,500 RPM up to 16,000 RPM based on the model selected.

How is the quality control verified for these micro DC motors?

Every motor undergoes strict quality control testing, checkups, and standard certifications to ensure performance stability, safety, and a quiet operating profile.
