Home > DC Motor > Model 755 Dc Motor Diameter 45 mm Body Length 59 mm Shaft Diameter 4.5 mm Shaft Length Can Be Customized

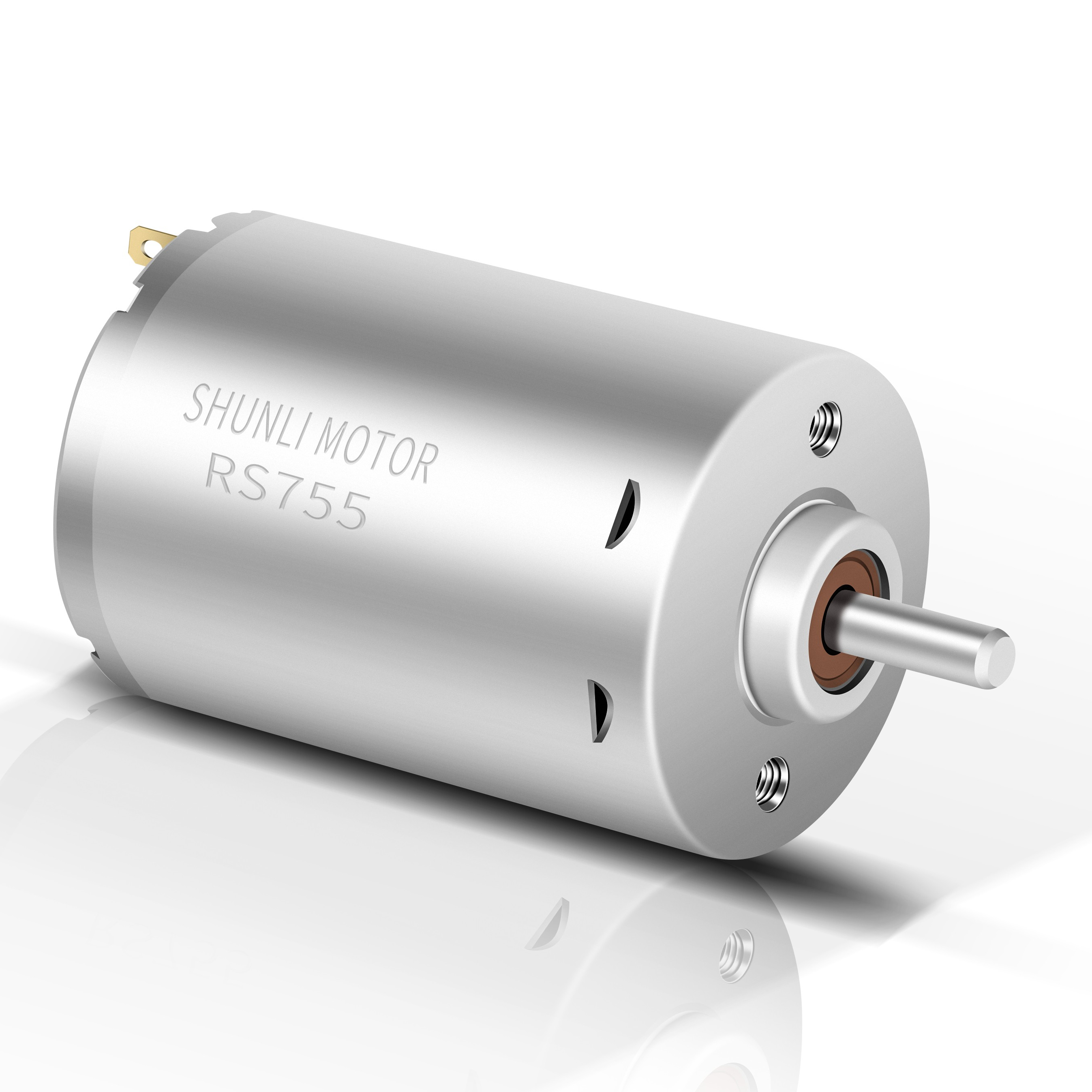

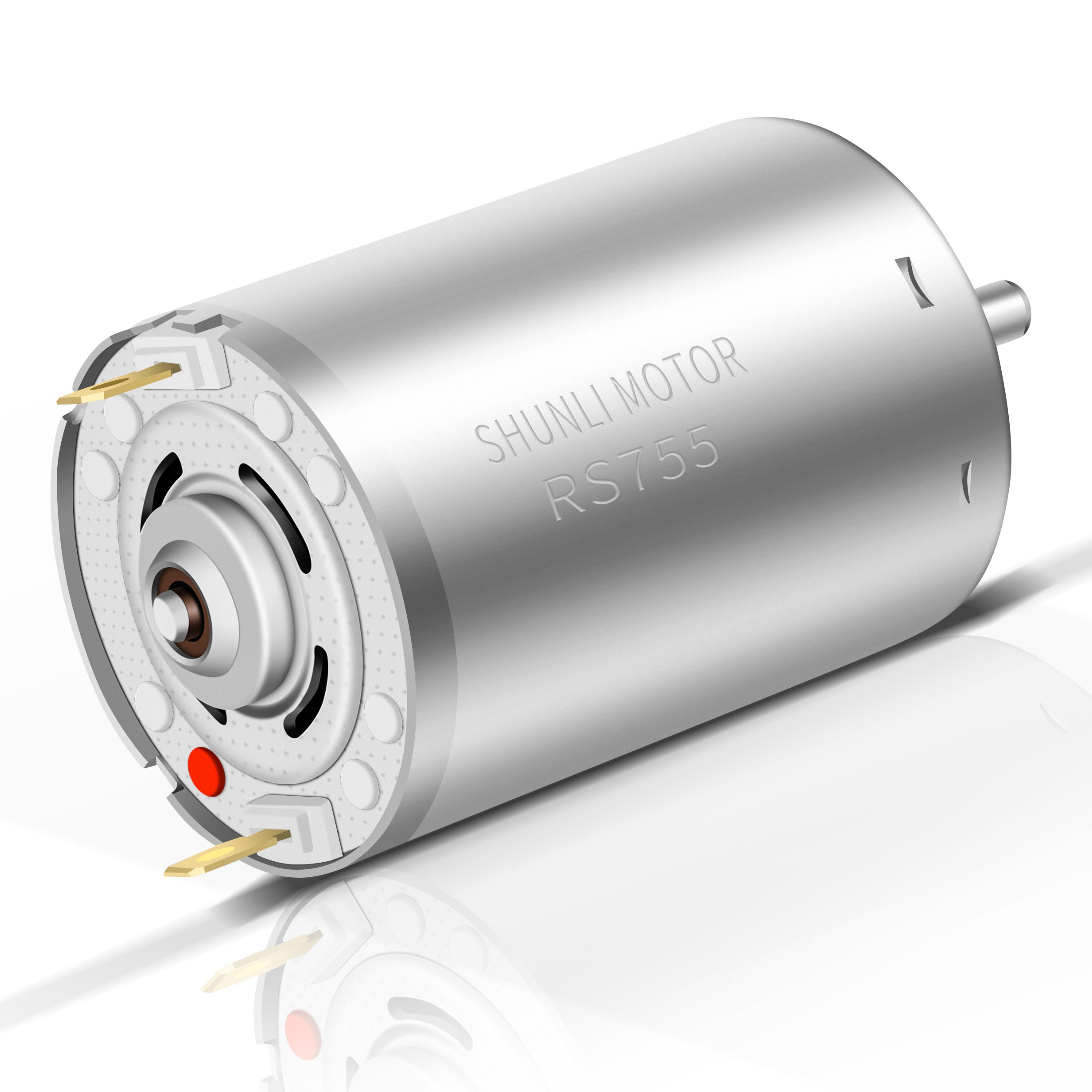

Model 755 Dc Motor Diameter 45 mm Body Length 59 mm Shaft Diameter 4.5 mm Shaft Length Can Be Customized
Model 755 Dc Motor Diameter 45 mm Body Length 59 mm Shaft Diameter 4.5 mm Shaft Length Can Be Customized
Model 755 Dc Motor Diameter 45 mm Body Length 59 mm Shaft Diameter 4.5 mm Shaft Length Can Be Customized
Model 755 Dc Motor Diameter 45 mm Body Length 59 mm Shaft Diameter 4.5 mm Shaft Length Can Be Customized
1 / 4
Model 755 Dc Motor Diameter 45 mm Body Length 59 mm Shaft Diameter 4.5 mm Shaft Length Can Be Customized
Model 755 Dc Motor Diameter 45 mm Body Length 59 mm Shaft Diameter 4.5 mm Shaft Length Can Be Customized
Model 755 Dc Motor Diameter 45 mm Body Length 59 mm Shaft Diameter 4.5 mm Shaft Length Can Be Customized
Model 755 Dc Motor Diameter 45 mm Body Length 59 mm Shaft Diameter 4.5 mm Shaft Length Can Be Customized

Model 755 Dc Motor Diameter 45 mm Body Length 59 mm Shaft Diameter 4.5 mm Shaft Length Can Be Customized

Send Inquiry

Product Description

Model 755 Dc Motor Diameter 45 mm Body Length 59 mm Shaft Diameter 4.5 mm Shaft Length Can Be Customized
6v 12v High RPM 9000rpm 15000rpm 750/755 DC Motor
Product Details
Model 755 Dc Motor Details
Motor Customized Specification Available Upon Request.

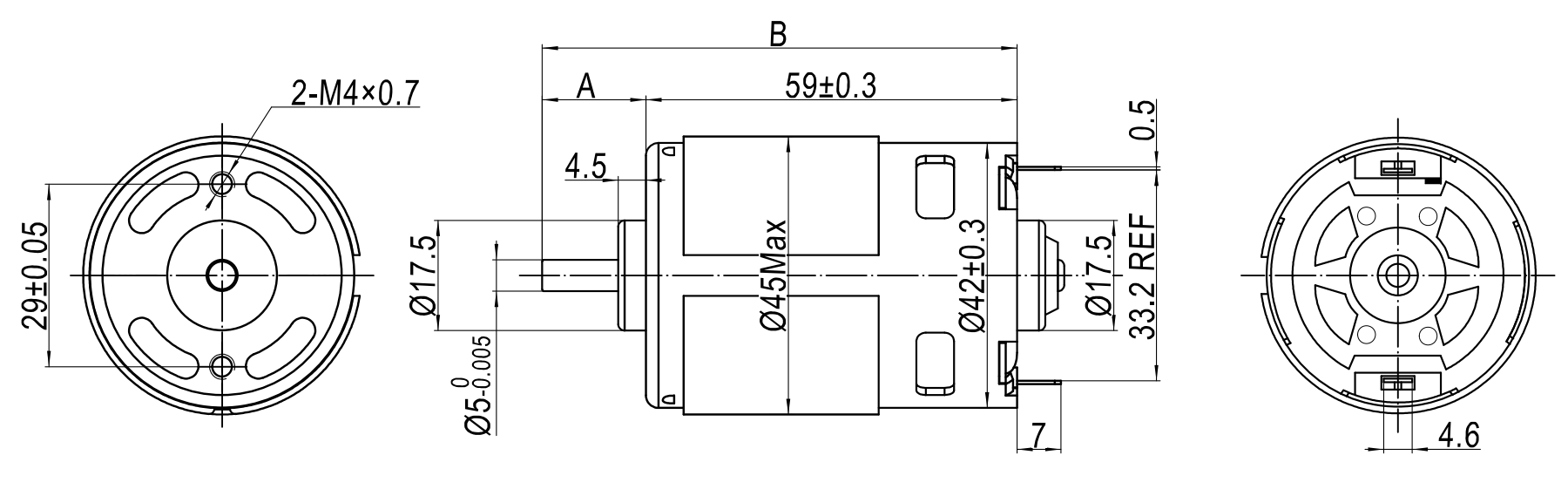

Reference Drawing
RS - 755 H
RS - 755 H Reference Drawing
The length of the shaft can be customized based on requirements.
Technical Specifications

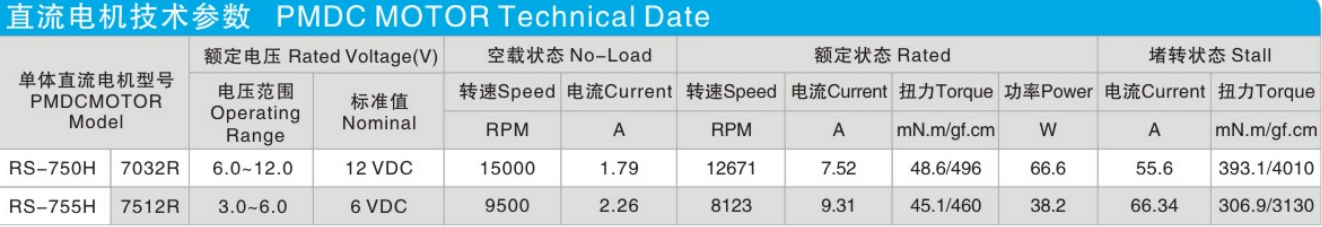

PMDC MOTOR Technical Data
Model Rated Voltage (V) No-Load Rated Stall
Operating Range Nominal Speed (RPM) Current (A) Speed (RPM) Current (A) Torque (mN.m / gf.cm) Power (W) Current (A) Torque (mN.m / gf.cm)
RS-750H 7032R 6.0~12.0 12 VDC 15000 1.79 12671 7.52 48.6 / 496 66.6 55.6 393.1 / 4010
RS-755H 7512R 3.0~6.0 6 VDC 9500 2.26 8123 9.31 45.1 / 460 38.2 66.34 306.9 / 3130
Applications
Motor Applications Map
Certifications
Product Certifications
Why Choose Us
1. Dedicated Production Experience

Operating as a specialized manufacturer for more than 14 years across multiple production facilities. Supported by a professional R&D team, mature management structures, and experienced engineering staff to ensure a seamless purchasing process.

Manufacturing Facilities
2. Rigorous Quality Control

Quality serves as the foundation of development. Every stage of manufacturing, starting from raw material inspections to final cargo shipments, is carefully monitored and verified.

Quality Control Process
3. Service Standards
Credibility Icon
Proven Track Record
Holding high credibility within the industry as a trusted supplier.
On-Time Delivery Icon
100% On-Time Delivery
Ensuring projects remain on schedule through reliable, timely dispatch.
Sample Production Icon
Fast Sample Cycle
Standard samples are produced within 2 weeks; custom prototypes are ready within 3 weeks.
Response Time Icon
Quick Inquiry Response
All online inquiries and direct messages receive detailed responses within 2 hours.
Recommended Products
Recommended Motor Products
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
A: We are a factory. We specialize in micro DC motors and DC gear motors with more than 14 years of manufacturing experience.
Q2: What is the payment term for new business relationships?
A: Secure online assurance orders can be established, enabling payment via credit cards (Visa, MasterCard), PayPal, or standard T/T transfers.
Q3: I cannot find a matching motor model on the website; can specifications be customized?
A: Yes, technical specifications can be customized, including voltage ratings, target speed, torque output, and motor shaft designs.
Q4: What certifications are available for the motors?
A: The product lines are compliant with CE, FCC, ISO, and related standards. If target markets require specific local certificates, compliance applications can be arranged.
Q5: How is quality control handled?
A: Quality checks are integrated at every step of assembly. Completed motors undergo evaluation using advanced testing equipment, including hardness testers, 2.5D image measurement instruments, salt spray chambers, life-cycle test rigs, temperature test chambers, and noise evaluation rooms.
