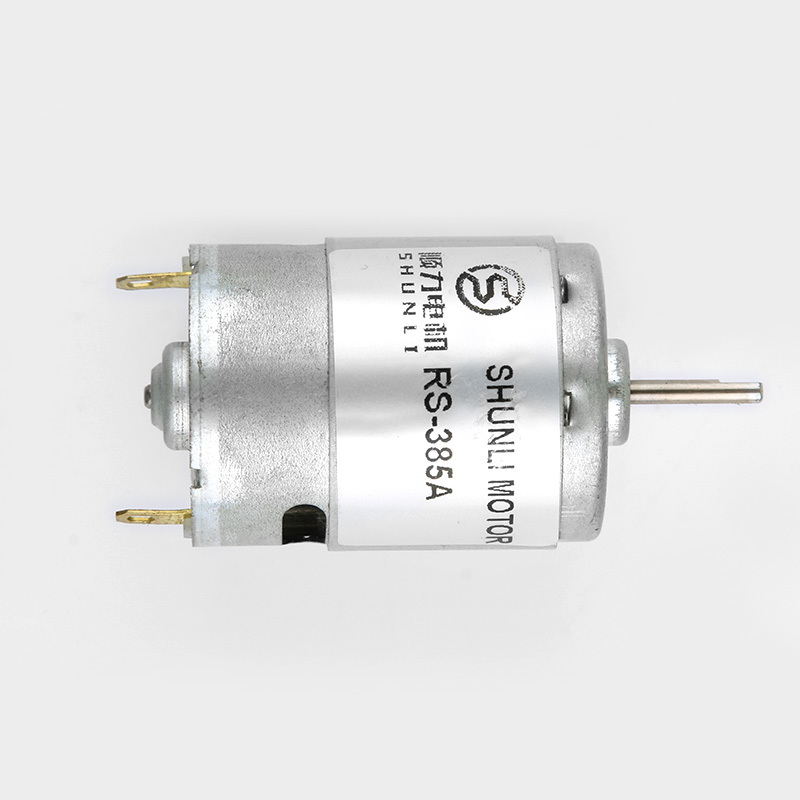

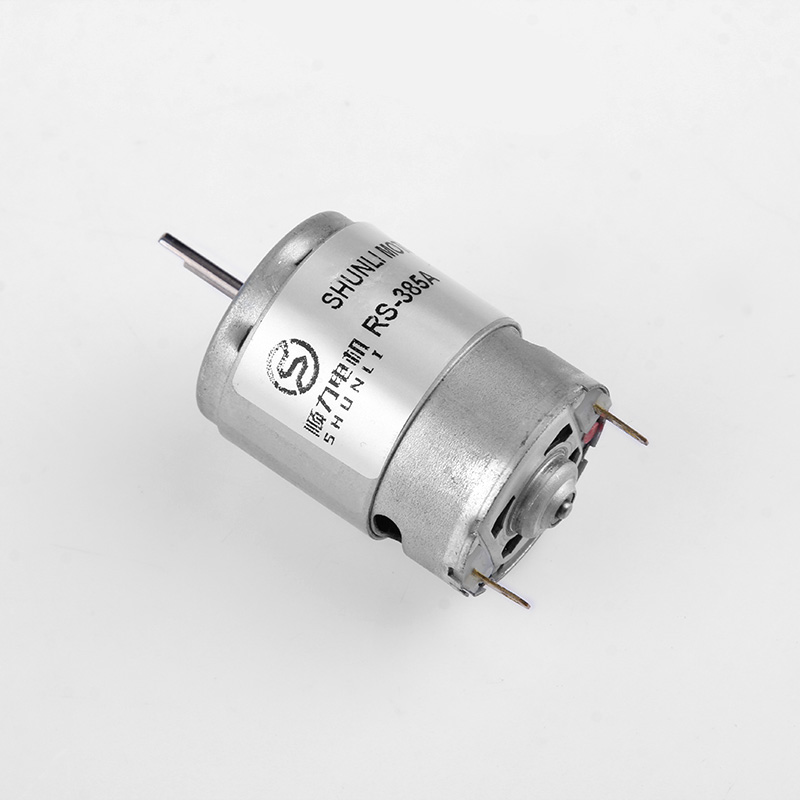

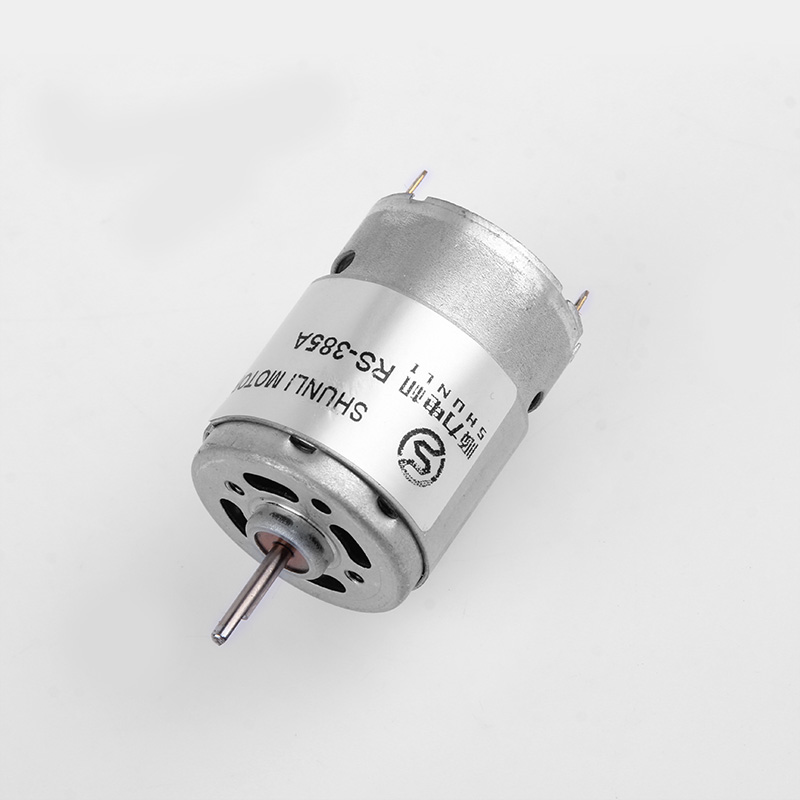

RS 380 Micro DC PMDC Motor RS-380 High Power RPM 9000RPM 20000RPM Low Voltage 3V 6V 12V
RS 380 Micro DC PMDC Motor RS-380 High Power RPM 9000RPM 20000RPM Low Voltage 3V 6V 12V
RS 380 Micro DC PMDC Motor RS-380 High Power RPM 9000RPM 20000RPM Low Voltage 3V 6V 12V
RS 380 Micro DC PMDC Motor RS-380 High Power RPM 9000RPM 20000RPM Low Voltage 3V 6V 12V
RS 380 Micro DC PMDC Motor RS-380 High Power RPM 9000RPM 20000RPM Low Voltage 3V 6V 12V
1 / 5
RS 380 Micro DC PMDC Motor RS-380 High Power RPM 9000RPM 20000RPM Low Voltage 3V 6V 12V
RS 380 Micro DC PMDC Motor RS-380 High Power RPM 9000RPM 20000RPM Low Voltage 3V 6V 12V
RS 380 Micro DC PMDC Motor RS-380 High Power RPM 9000RPM 20000RPM Low Voltage 3V 6V 12V
RS 380 Micro DC PMDC Motor RS-380 High Power RPM 9000RPM 20000RPM Low Voltage 3V 6V 12V
RS 380 Micro DC PMDC Motor RS-380 High Power RPM 9000RPM 20000RPM Low Voltage 3V 6V 12V

RS 380 Micro DC PMDC Motor RS-380 High Power RPM 9000RPM 20000RPM Low Voltage 3V 6V 12V

Send Inquiry

Product Description

RS 380 Micro DC PMDC Motor RS-380 High Power RPM 9000RPM 20000RPM Low Voltage 3V 6V 12V
Product Description
RS 380 Micro DC PMDC Motor RS-380 High Power RPM 9000RPM 20000RPM Low Voltage 3V 6V 12V
Product Details
Product Details Specification
Motor Customized Specification, Please contact us.
Reference Drawing
RS - 365
RS - 365 Drawing
RS - 385
RS - 385 Drawing
RS - 395
RS - 395 Drawing
The length of shaft can be customized, Please contact us.
Reference Datasheet
PMDC MOTOR Technical Data
Model Rated Voltage (V) No-Load Rated Stall
Operating Range Nominal Speed Current Speed Current Torque Power Current Torque
RPM A RPM A mN.m / gf.cm W A mN.m / gf.cm
RS-380SH 4052 3.0~6.0 4.8VDC 7800 0.32 6701 1.95 9.9/101 6.98 11.9 70.6/720
3557 6.0~12.0 12VDC 21200 0.44 18367 2.85 11.26/114.9 21.68 18.5 84.3/860
RS-385SH 17110 6.0~24.0 24VDC 11000 0.15 9034 0.69 10.7/109 10.12 3.16 59.8/610
2267 6.0~12.0 12VDC 10000 0.17 8340 0.85 7.5/76.5 6.53 4.29 45/459
Certifications
Certifications Display
Customer Evaluation
Customer Evaluation Feedback
Why Choose Us
1. Factory Capacity
Production Factory

We are a factory specialized in producing motors for more than 14 years. Our professional R&D team and mature management will bring you a pleasant purchasing experience.

2. Quality Control
Quality Control Testing

In order to confirm quality, from the raw material receipt to shipment, every step of the way is carefully checked. Quality is the basis of our development.

Our Services
Credibility
We are a gold seller in possession of high credibility.
On-time Delivery
100% on-time delivery rate ensures your product arrives timely.
Sampling Speed
Standard samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.
Fast Response
Timely reply: your message will be answered within 2 hours.
FAQ
1. Q: Are you a trading company or manufacturer?
A: We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
2. Q: What is the payment term for a new customer?
A: We can draw up an Online Assurance Order for our new customers, which can be paid online with Mastercard, Visa, etc. Customers can also pay with PayPal or T/T, etc.
3. Q: I cannot find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's specific requirements.
4. Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, and other relevant certificates. If you require other specific certificates, we can apply for them for you.
5. Q: How is your Quality Control?
A: We have professional checking staff on every production line process. Once the complete motor is assembled, we use advanced testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers to test.
6. Q: Can the shaft length and motor specifications be customized?
A: Yes, both the motor specifications and the shaft length can be customized to fit your applications. Please provide us with your requirements.

Give us a chance to cooperate with you!
