RadixPro
RadixPro
Motor Customized Specification, Please contact me.

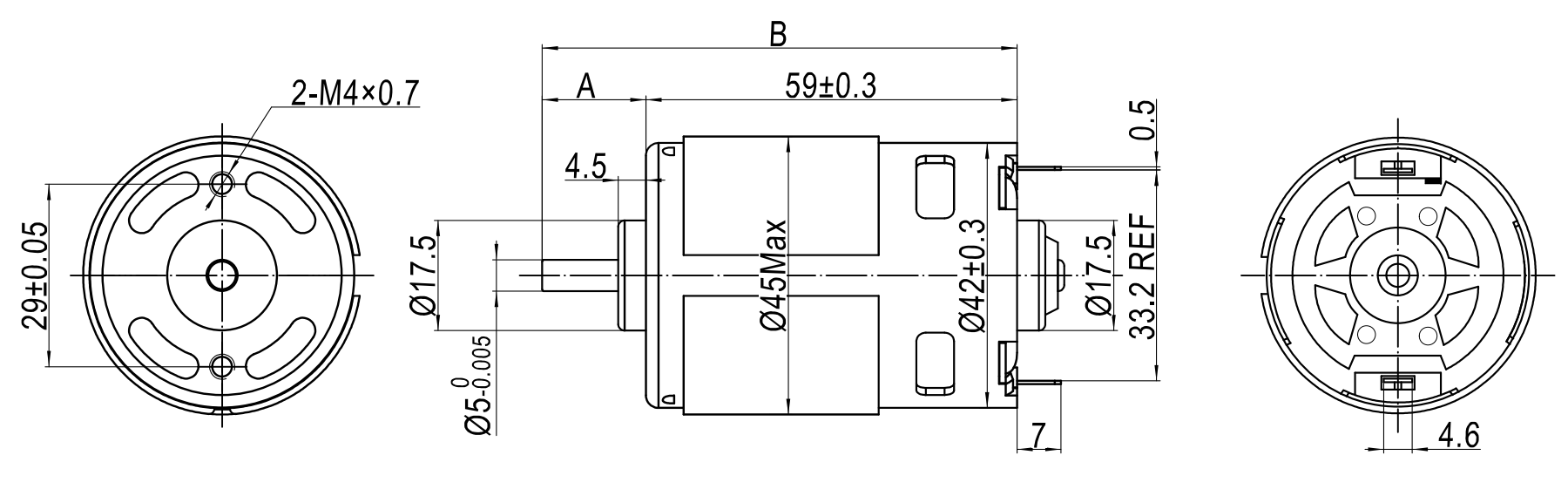

The length of shaft can be customized, Please contact me.

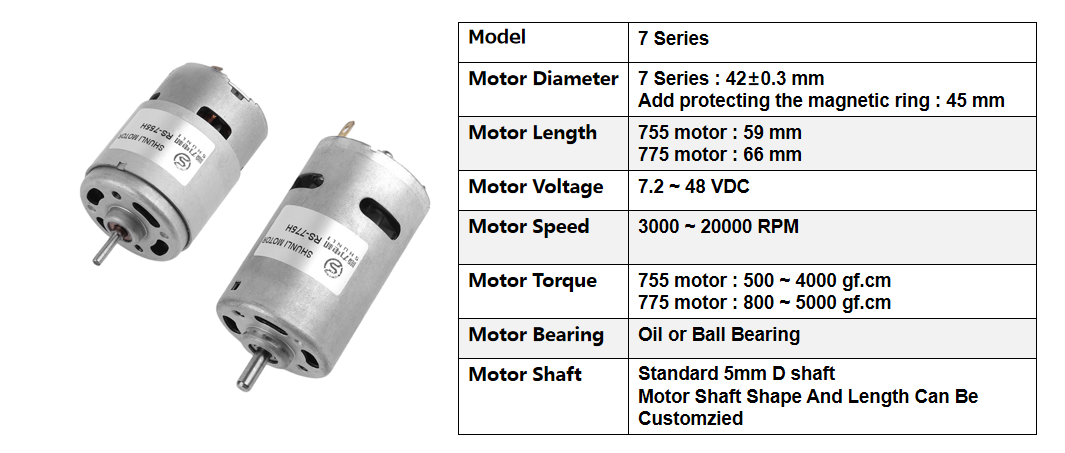

| PMDC MOTOR Technical Date | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-750H | 7032R | 6.0~12.0 | 12 VDC | 15000 | 1.79 | 12671 | 7.52 | 48.6/496 | 66.6 | 55.6 | 393.1/4010 |
| RS-755H | 7512R | 3.0~6.0 | 6 VDC | 9500 | 2.26 | 8123 | 9.31 | 45.1/460 | 38.2 | 66.34 | 306.9/3130 |
We are a factory specialize in producing motors more than 14 years, and we have three factories, respectfully local in Shenzhen, Huizhou, Dongguan, professional R&D team mature management and experienced engineer salesman will bring you a pleasant shopping experience.
In order to confirm quality, from we receive material to shipment to be carefully checked every step of the way. Quality is our basis of our development.
We are gold seller and in possession of high credibility
100% on-time delivery rate confirm your product arrives timely.
Samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.
Timely reply, your message will be replied within 2 hours.
Looking forward to your feedback!
A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
A: Yes, we can customize a suitable motor according to our customer's requirements.
A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
A: Standard samples are produced within 2 weeks, while customized samples will be prepared within 3 weeks.
