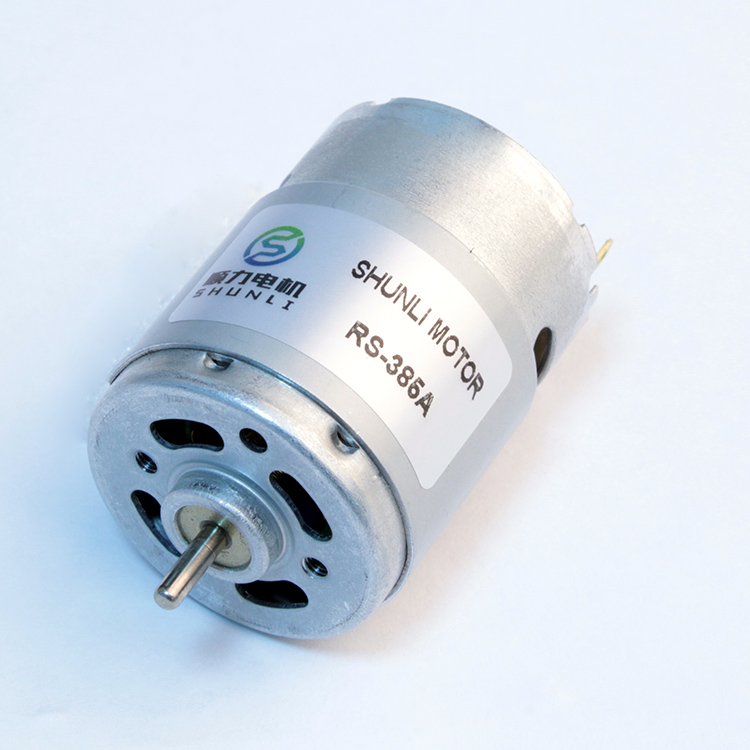

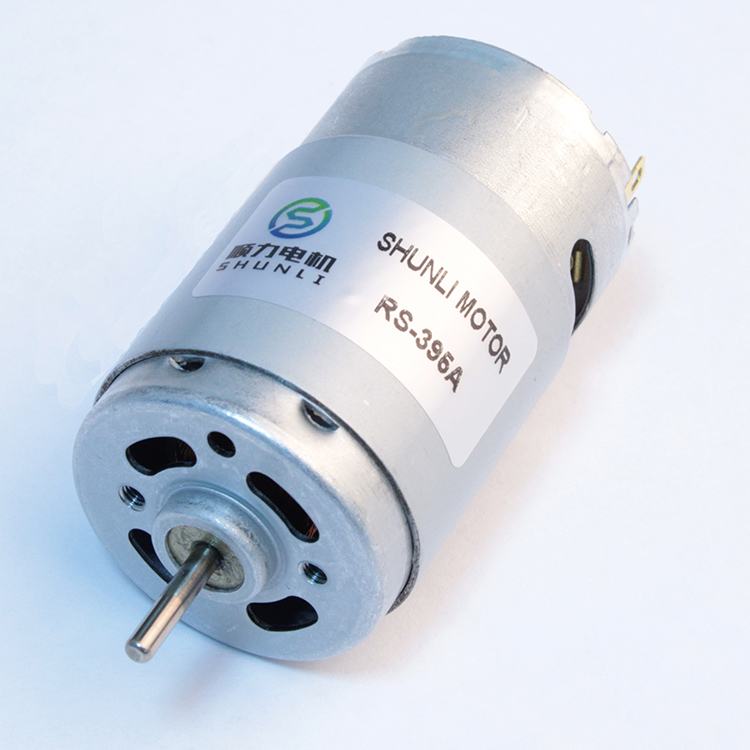

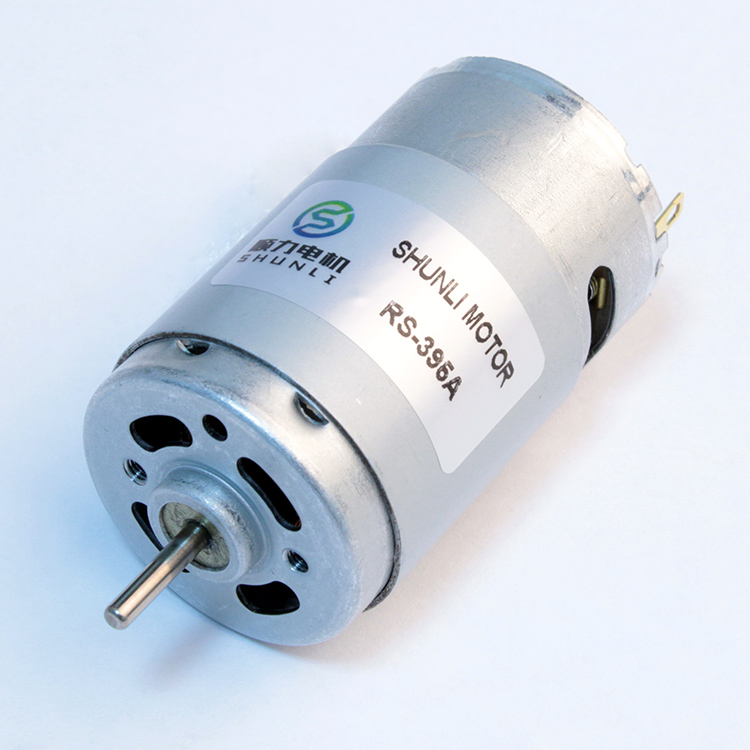

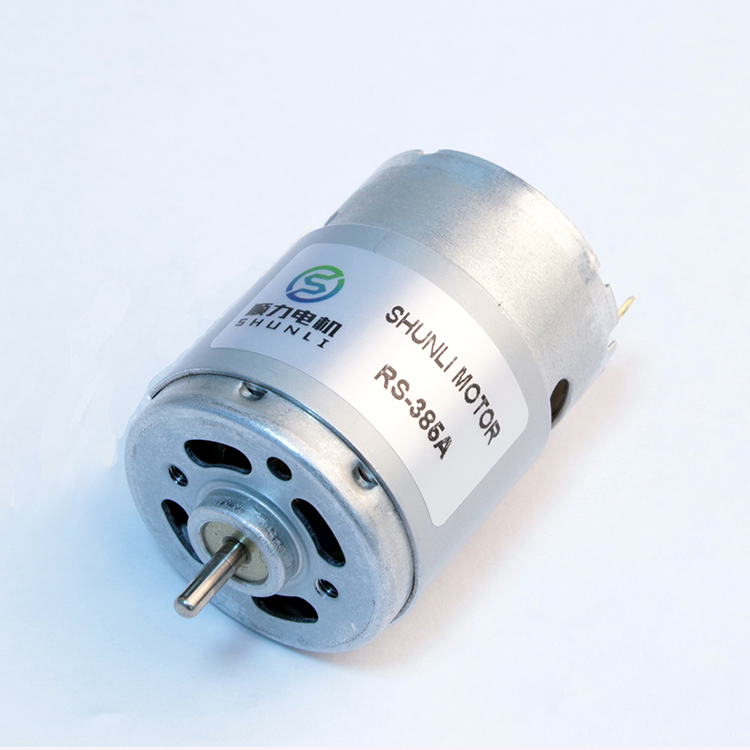

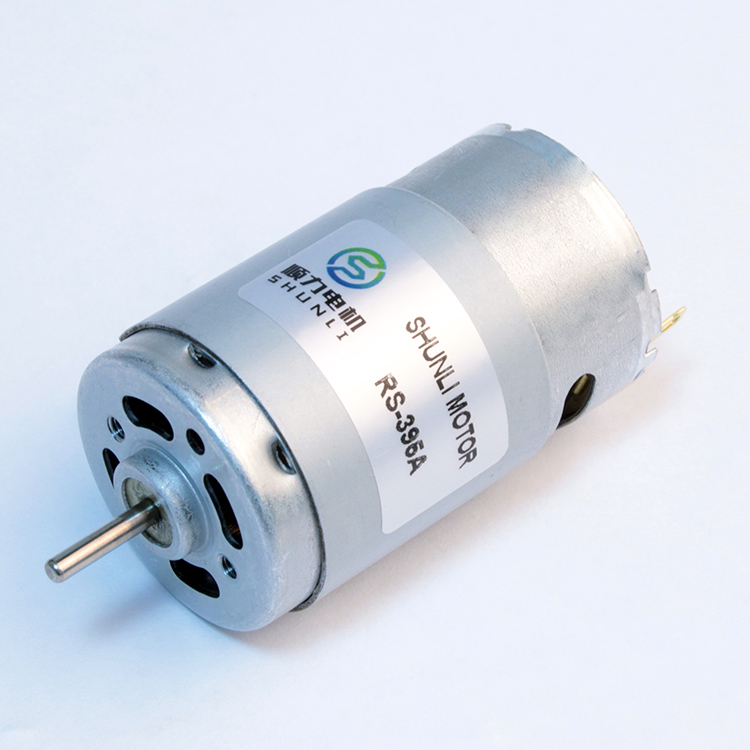

Shunli Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed

1 / 5

Shunli Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed

Send Inquiry

Product Description

Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed

Product Description

micro dc motor 5 volt for electric vacuum cleaner carbon brush motor high speed

Product Details

⚙️

Motor Customized Specification, Please contact me.

Reference Drawing

RS - 365

RS - 385

Custom micro spindle Dc motor 385 reference drawing

RS - 395

Custom micro spindle Dc motor 395 reference drawing

📏

The length of shaft can be customized, Please contact me.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07/61.9	2.72	2.22	42.2/430
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75/58.6	1.31	8.9	80.4/820
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83/59.5	1.8	1.06	30.4/310
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09/72.3	6.68	2.66	54.9/560

Custom micro spindle Dc motor application view 1

Custom micro spindle Dc motor application view 2

Custom micro spindle Dc motor application view 3

Custom micro spindle Dc motor application view 4

Custom micro spindle Dc motor application view 5

Custom micro spindle Dc motor application view 6

Custom micro spindle Dc motor application view 7

Looking forward to your feedback!

Frequently Asked Questions (FAQ)

Q1: Can the specifications of the micro DC motors be customized?

Yes, we support comprehensive customization for motor specifications, including rated voltage, operating speed, torque, and other custom performance parameters based on your requirements.

Q2: Is it possible to customize the motor shaft length?

Yes, the shaft length of our RS-365, RS-385, and RS-395 motor models can be tailored to fit your specific device or application.

Q3: What are the typical applications for these carbon brush motors?

These high-speed micro spindle DC motors are widely used in electric vacuum cleaners, household appliances, smart home devices, and various precision transmission systems.

Q4: What voltage range do these PMDC motors operate on?

Our motors generally operate within a range of 6.0V to 24.0V DC. We offer specific nominal configurations like 5V, 12V, and 24V DC to align with standard power supplies.

Q5: What speeds can these micro motors achieve?

Depending on the model and voltage input, these high-speed motors can achieve no-load speeds ranging from 3,650 RPM to as high as 12,000 RPM.

Product Detail

Shunli Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed

Product Description

micro dc motor 5 volt for electric vacuum cleaner carbon brush motor high speed
