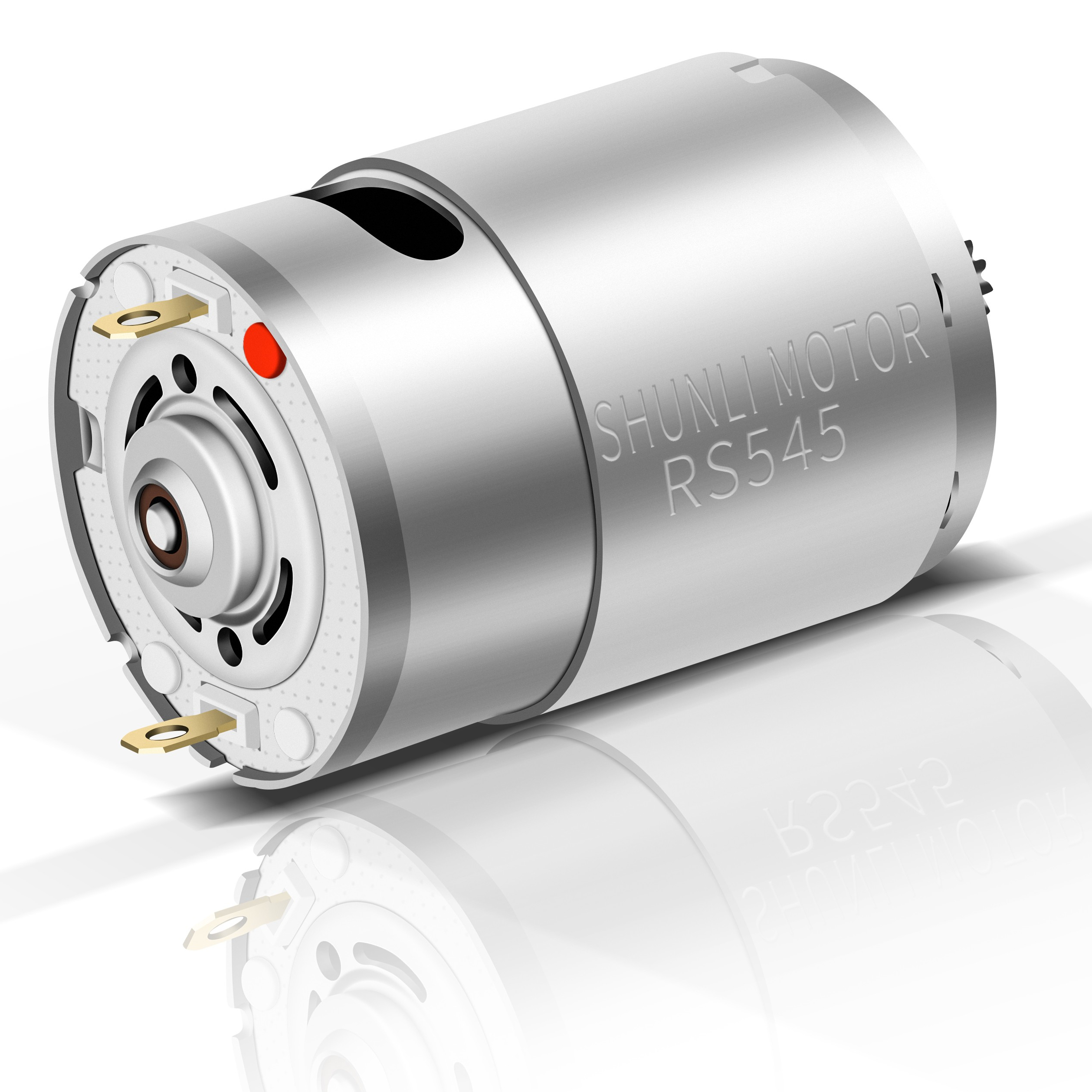

Home > DC Motor > Shunli Custom Model 540 / 545 Dc Motor Diameter 37 mm Body Length 50 mm Shaft Diameter 3.175 mm Shaft Length
Shunli Custom Model 540 / 545 Dc Motor Diameter 37 mm Body Length 50 mm Shaft Diameter 3.175 mm Shaft Length
Shunli Custom Model 540 / 545 Dc Motor Diameter 37 mm Body Length 50 mm Shaft Diameter 3.175 mm Shaft Length
Shunli Custom Model 540 / 545 Dc Motor Diameter 37 mm Body Length 50 mm Shaft Diameter 3.175 mm Shaft Length
Shunli Custom Model 540 / 545 Dc Motor Diameter 37 mm Body Length 50 mm Shaft Diameter 3.175 mm Shaft Length
1 / 4
Shunli Custom Model 540 / 545 Dc Motor Diameter 37 mm Body Length 50 mm Shaft Diameter 3.175 mm Shaft Length
Shunli Custom Model 540 / 545 Dc Motor Diameter 37 mm Body Length 50 mm Shaft Diameter 3.175 mm Shaft Length
Shunli Custom Model 540 / 545 Dc Motor Diameter 37 mm Body Length 50 mm Shaft Diameter 3.175 mm Shaft Length
Shunli Custom Model 540 / 545 Dc Motor Diameter 37 mm Body Length 50 mm Shaft Diameter 3.175 mm Shaft Length

Shunli Custom Model 540 / 545 Dc Motor Diameter 37 mm Body Length 50 mm Shaft Diameter 3.175 mm Shaft Length

Send Inquiry

Product Description

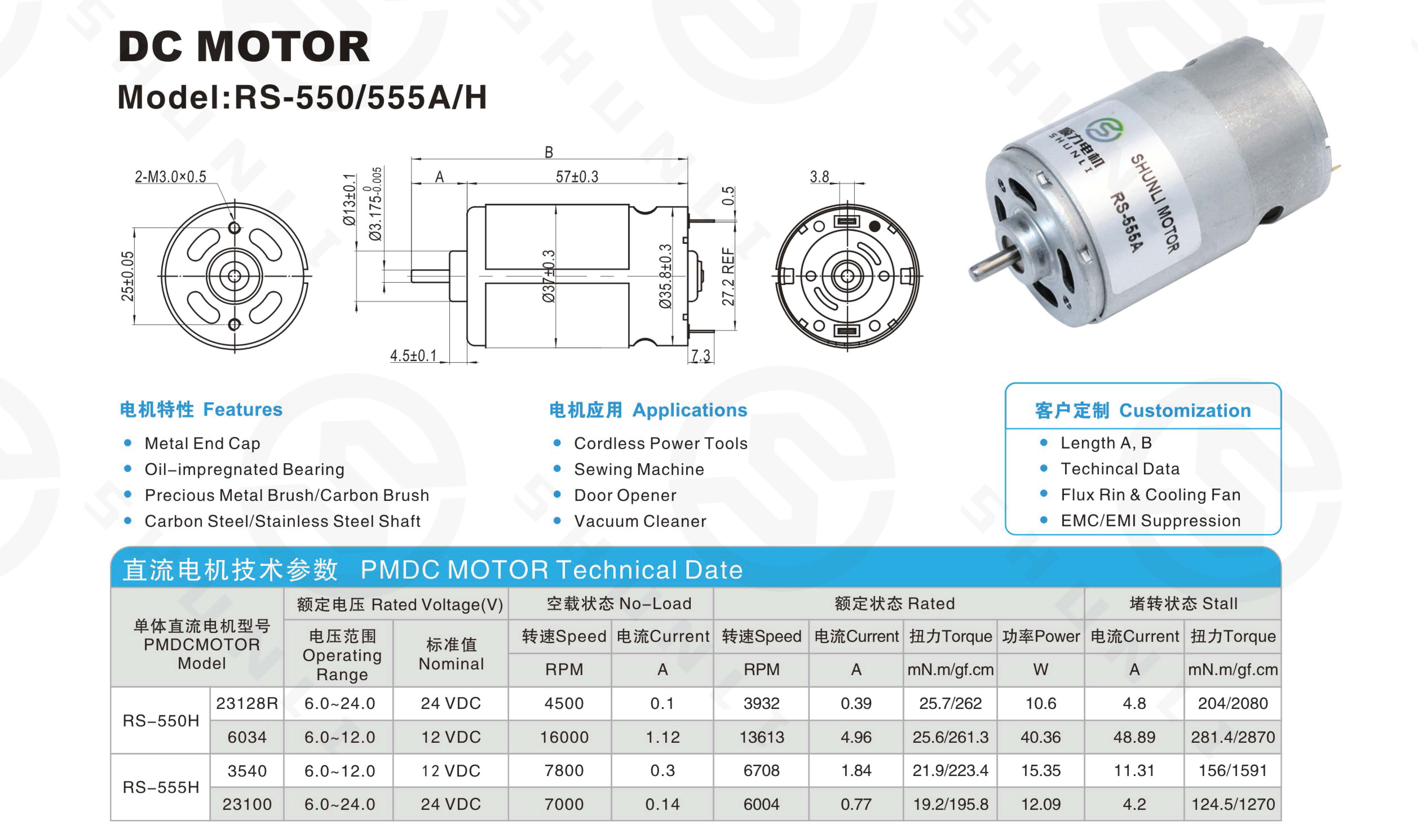

Custom Model 540 / 545 Dc Motor Diameter 37 mm Body Length 50 mm Shaft Diameter 3.175 mm Shaft Length Custom Model 540 / 545 Dc Motor Specifications Banner
Product Description
Model 550 / 555 dc motor diameter 37 mm body length 57 mm shaft diameter 3.175 mm shaft length can be customized
Product Details
Custom Model 540 / 545 Dc Motor Product Details Diagram
Customized Motor Specifications Are Available Upon Request.

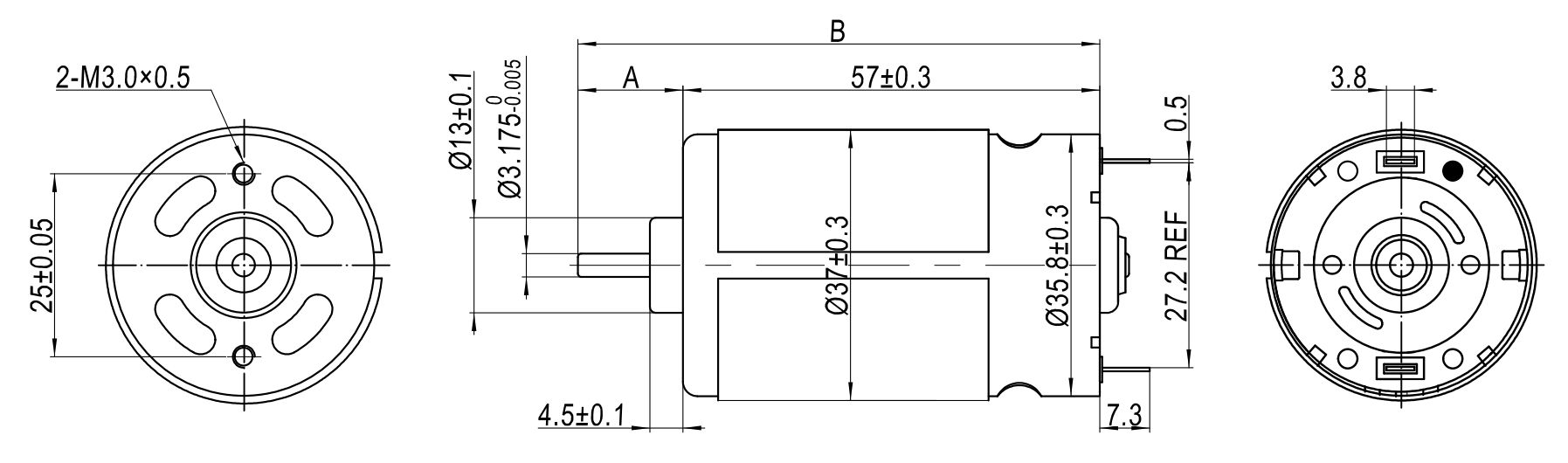

Reference Drawing
RS - 545 A
RS - 545 A DC Motor Reference Drawing
RS - 555 A
RS - 555 A DC Motor Reference Drawing
RS - 575 A
RS - 575 A DC Motor Reference Drawing
The length of the shaft can be customized according to your specifications.
Reference Datasheet
PMDC MOTOR Technical Data
Model Rated Voltage (V) No-Load Rated Stall
Operating Range Nominal Speed (RPM) Current (A) Speed (RPM) Current (A) Torque (mN.m / gf.cm) Power (W) Current (A) Torque (mN.m / gf.cm)
RS-550H 23128R 6.0~24.0 24VDC 4500 0.1 3932 0.39 25.7 / 262 10.6 4.8 204 / 2080
6034 6.0~12.0 12VDC 16000 1.12 13613 4.96 25.6 / 261.3 40.36 48.89 281.4 / 2870
RS-555H 3540 6.0~12.0 12VDC 7800 0.3 6708 1.84 21.9 / 223.4 15.35 11.31 156 / 1591
23100 6.0~24.0 24VDC 7000 0.14 6004 0.77 19.2 / 195.8 12.09 4.2 124.5 / 1270
Product Showcases

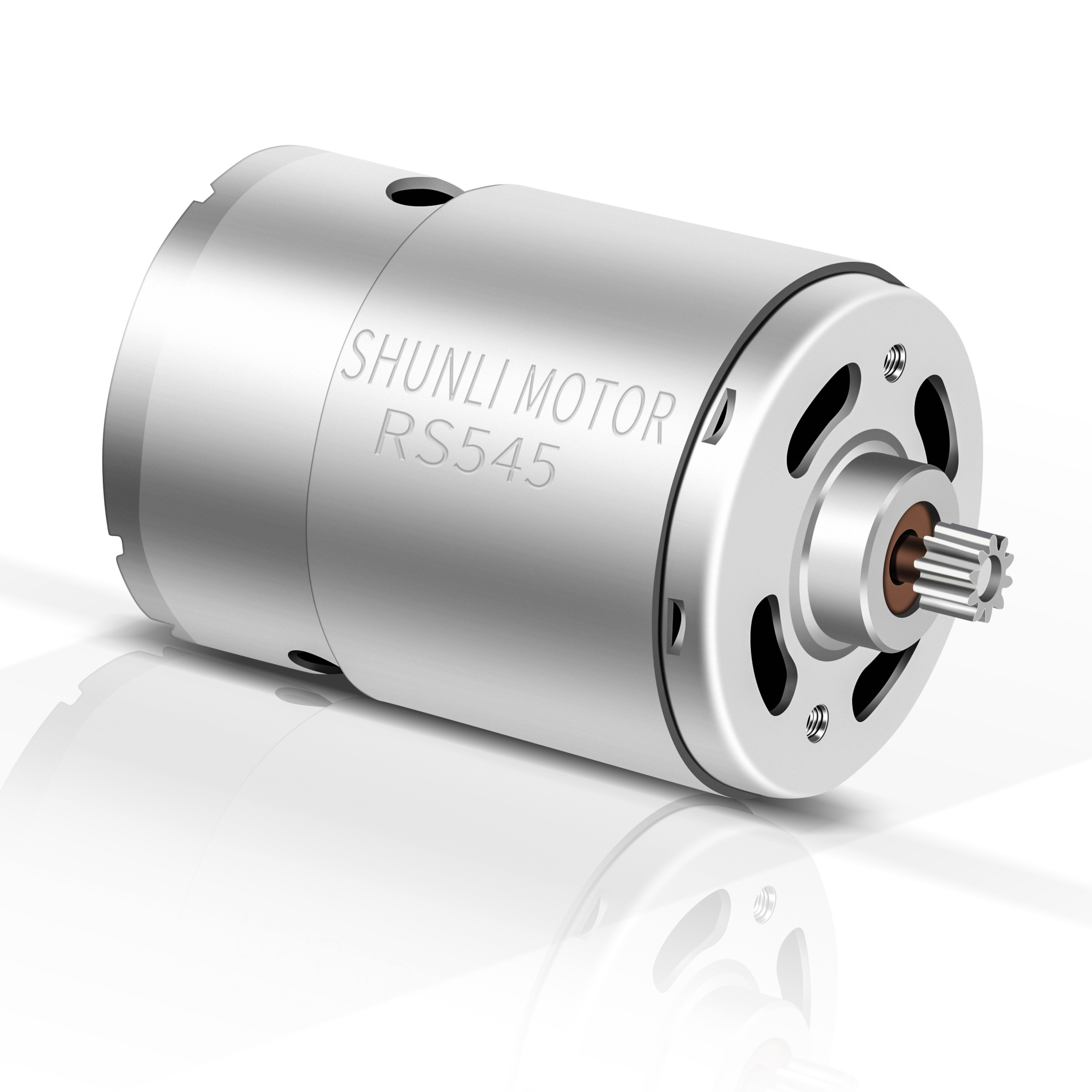

Custom Model 540 / 545 Dc Motor Physical View 1 Custom Model 540 / 545 Dc Motor Physical View 2 Custom Model 540 / 545 Dc Motor Physical View 3 Custom Model 540 / 545 Dc Motor Physical View 4 Custom Model 540 / 545 Dc Motor Physical View 5 Custom Model 540 / 545 Dc Motor Physical View 6 Custom Model 540 / 545 Dc Motor Physical View 7
Frequently Asked Questions
Can the motor shaft dimensions be customized?
Yes, while the standard shaft diameter is 3.175 mm, the shaft length and configurations can be customized to match your specific application requirements.
What voltage ranges do these PMDC motors support?
These permanent magnet DC (PMDC) motors are designed to operate within a voltage range of 6.0V to 24.0V DC. Standard nominal configurations include 12VDC and 24VDC models.
What are the physical dimensions of the Model 550 and 555 DC motors?
The Model 550 and 555 DC motors feature a body diameter of 37 mm and a standard body length of 57 mm.
What is the difference in stall torque between the RS-550H configurations?
The RS-550H (23128R) 24VDC model has a stall torque of 204 mN.m (2080 gf.cm), whereas the RS-550H (6034) 12VDC model delivers a higher stall torque of 281.4 mN.m (2870 gf.cm).
Are these motors suitable for high-speed applications?
Yes. For instance, the RS-550H (6034) nominal 12VDC motor runs at a no-load speed of up to 16,000 RPM, making it ideal for high-speed operation requirements.
What are the typical applications for these DC motors?
These motors are widely used in power tools, automotive electrical parts, smart appliances, automation systems, and various mechanical devices requiring reliable torque and speed control.
