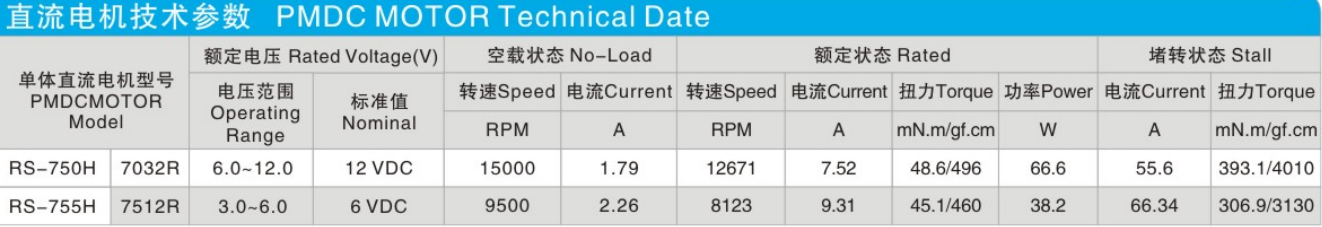

| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMDCMOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-750H | 7032R | 6.0~12.0 | 12VDC | 15000 | 1.79 | 12671 | 7.52 | 48.6/496 | 66.6 | 55.6 | 393.1/4010 |
| RS-755H | 7512R | 3.0~6.0 | 6VDC | 9500 | 2.26 | 8123 | 9.31 | 45.1/460 | 38.2 | 66.34 | 306.9/3130 |
Established in 2005, the enterprise integrates research, development, production, and sales of various kinds of micro DC motors, geared motors, planetary geared motors, shade pole geared motors, and special gearbox motors. Products are widely used in automobiles, communications equipment, smart home systems, medical equipment, intelligent security, household appliances, commercial kitchen equipment, machinery, electronics, and other high-end transmission structures. The products are exported to more than 50 countries and regions worldwide.
We are a factory. We specialize in micro DC motors and DC gear motors with extensive experience of over 14 years.
We can draw up online assurance orders for new customers, which can be paid online via major credit cards (MasterCard, Visa, etc.), PayPal, or T/T.
Yes, we can customize motors according to the specific requirements and technical specifications of our customers.
Yes, we hold CE, FCC, ISO, and other relevant certificates. If you require specific certificates, we can apply for them on your behalf.
We have dedicated quality control inspectors at every step of the production line. Final testing of the completed motors is conducted using professional instruments, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.
