Product Description

Micro DC Motor Feature Banner

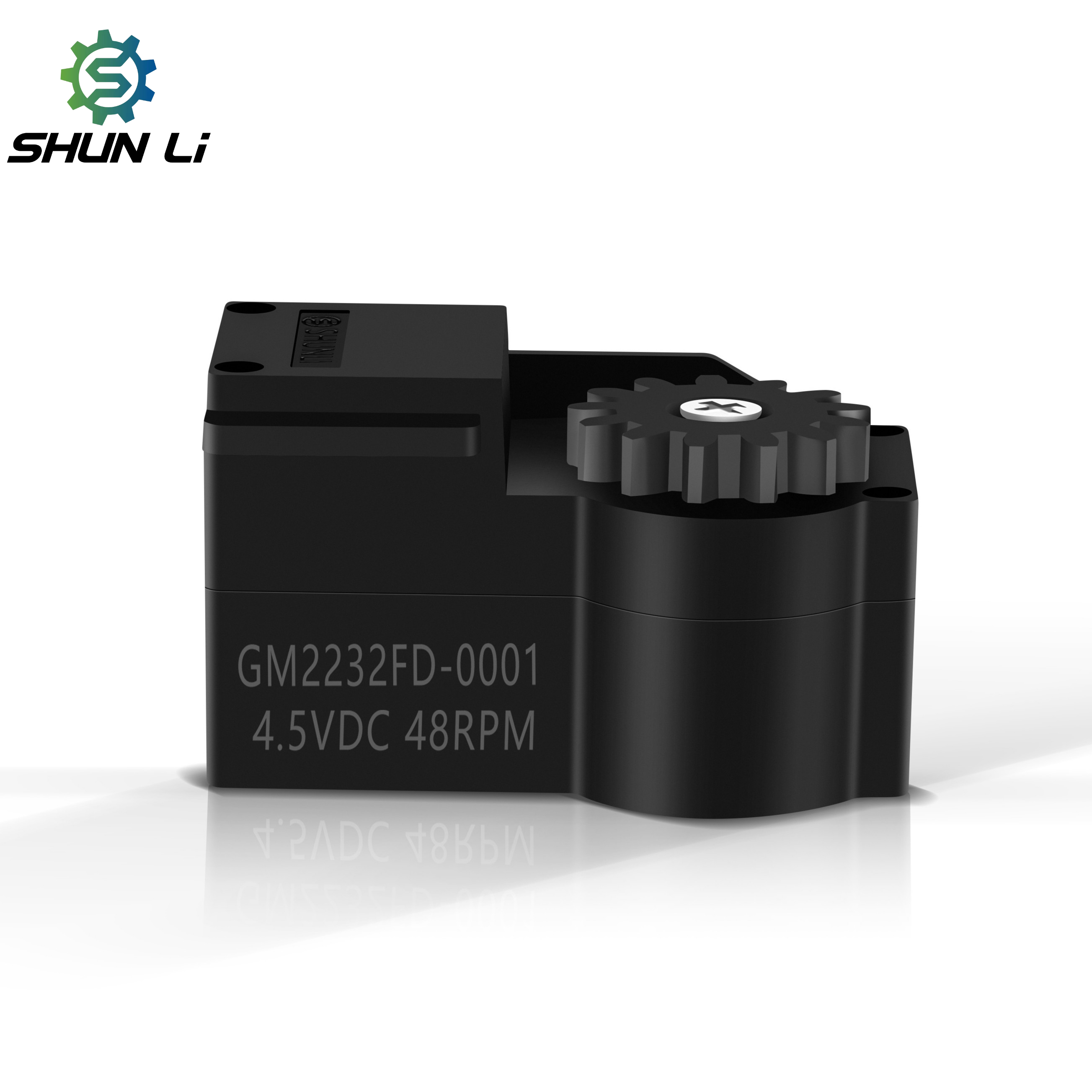

GM2232FD-0001 Motor Showcase
Product Model GM2232FD-0001
Ratio 1:267K
Speed 44RPM-55RPM
Voltage 4.5V
Rated Torque 40 mN.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized
Performance Chart of GM2232FD-0001

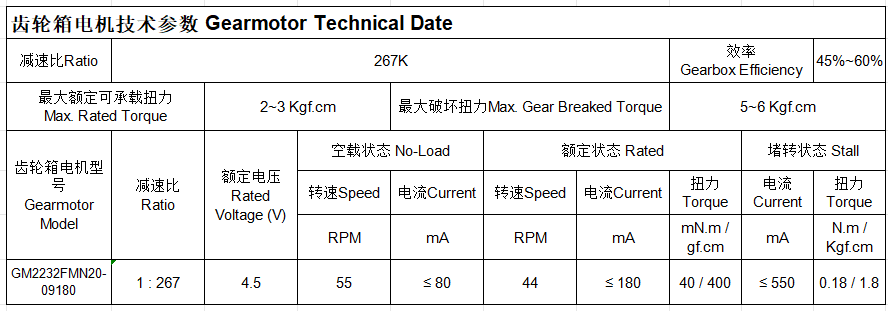

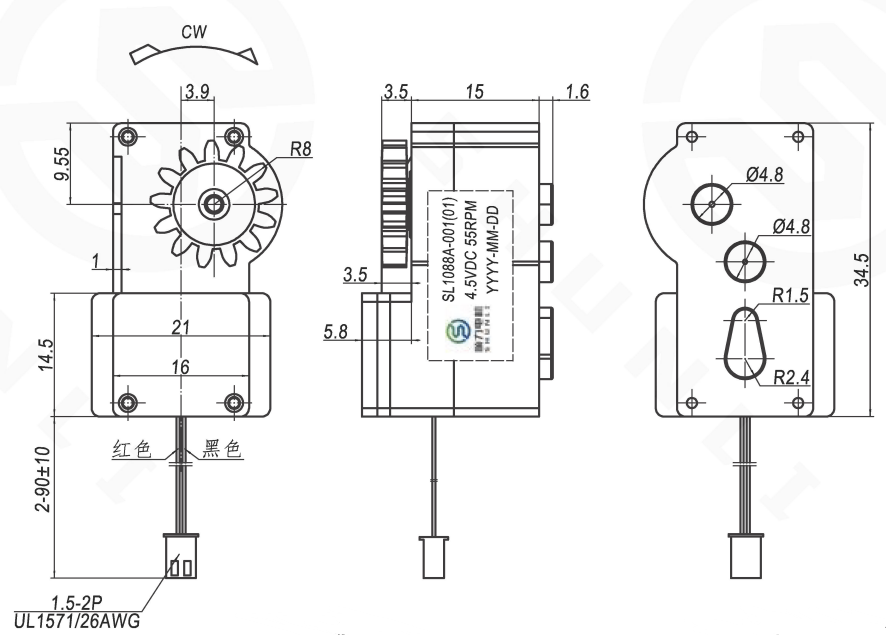

Technical Specifications and Blueprint

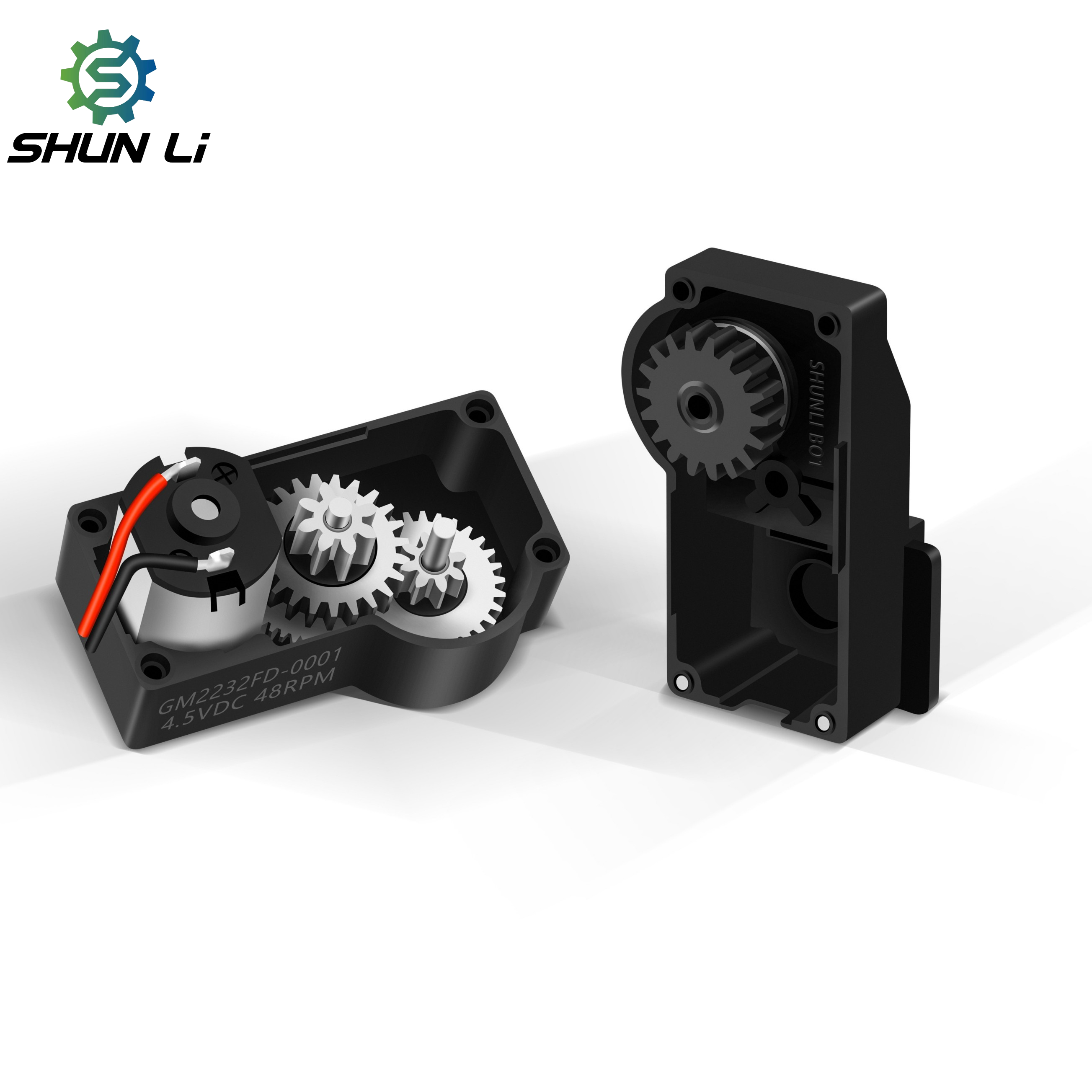

Micro Gear Motor Detail View 1 Micro Gear Motor Detail View 2 Micro Gear Motor Detail View 3 Micro Gear Motor Detail View 4 Micro Gear Motor Detail View 5 Micro Gear Motor Detail View 6
Frequently Asked Questions
Q1 Are you a trading company or manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
Q2 What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customer, which can be paid online with Master Card, Visa, etc. Customers can also pay via PayPal, TT, etc.
Q3 I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Q4 Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
Q5 How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we utilize dedicated testing equipment to test the motor, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
