Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock
Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock
Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock
Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock
1 / 4
Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock
Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock
Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock
Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock

Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock

Send Inquiry

Product Description

Micro DC Motor and DC Gear Motor Overview

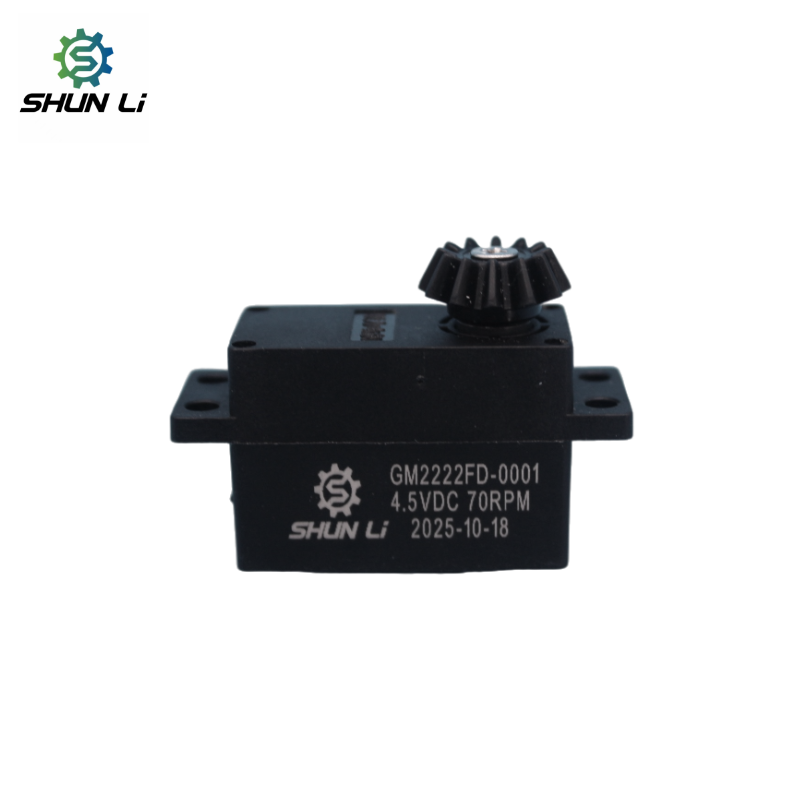

GM2222FD-0001 Product Image
Product Model GM2222FD-0001
Ratio 241K
Speed 42RPM-70RPM
Voltage 4.5V
Rated Torque 25 mN.m/30 mN.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

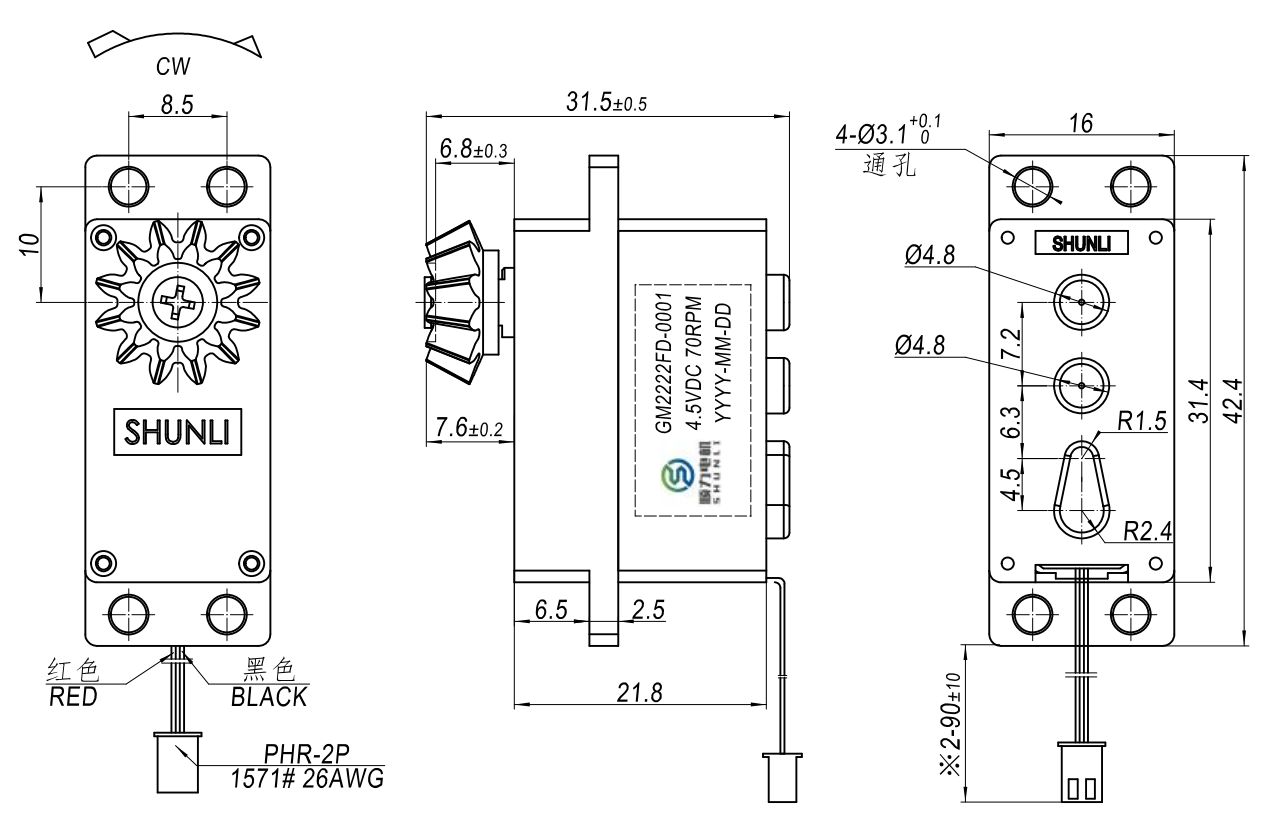

GM2222FD-0001 DC Gear Motor Dimensions and Technical Drawing

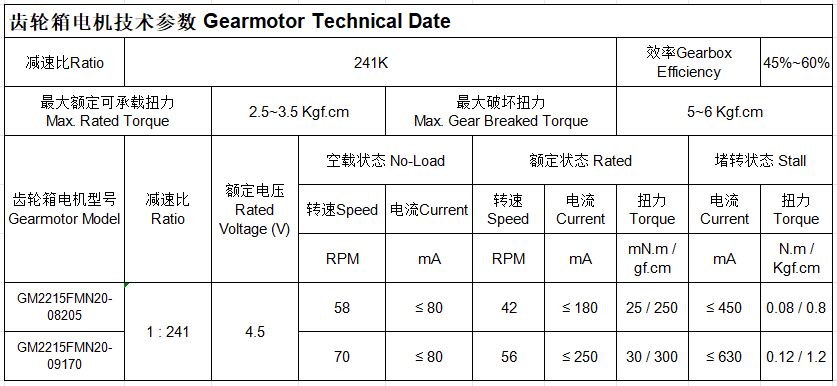

DC Motor Performance Specifications Curve

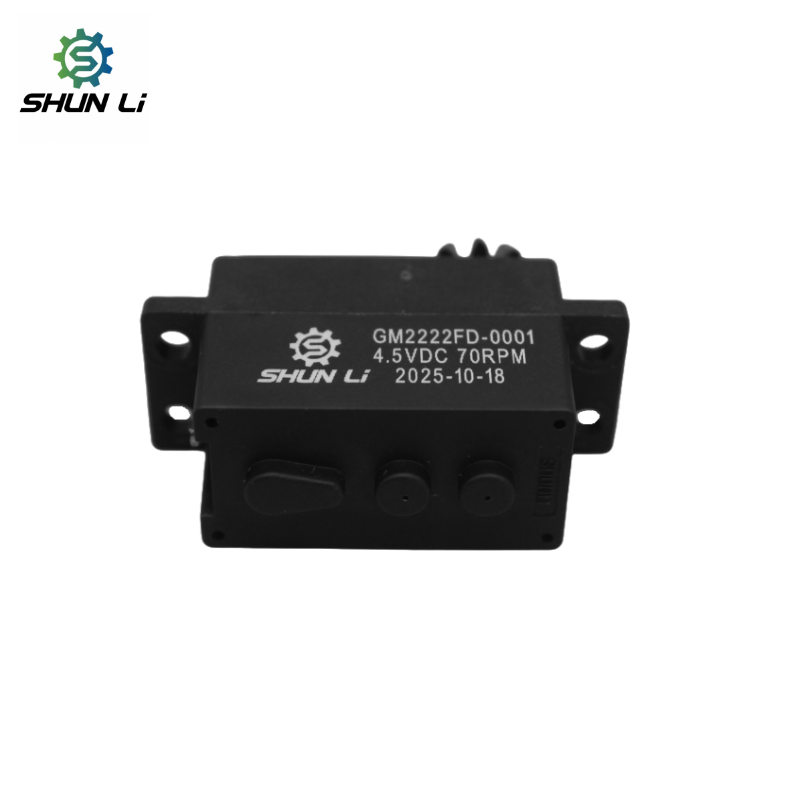

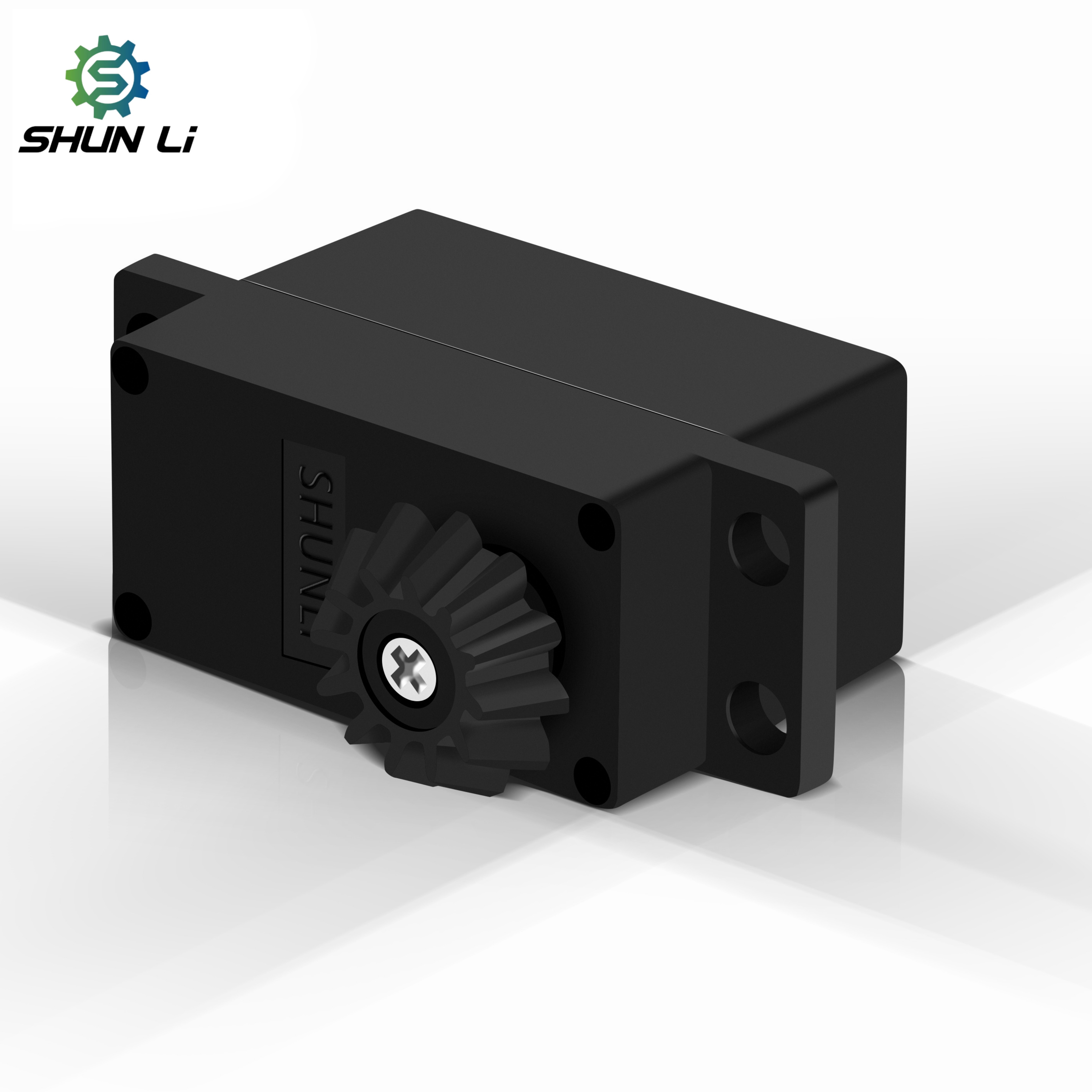

DC Gear Motor Detail View 1 DC Gear Motor Detail View 2 DC Gear Motor Detail View 3 DC Gear Motor Detail View 4 DC Gear Motor Detail View 5 DC Gear Motor Detail View 6
❓ FAQ
Q Are you a trading company or manufacturer?
We're a factory. We specialize in micro dc motors and dc gear motors for more than 14 years.
Q What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT etc.
Q I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Q Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certification requirements, we can apply for them for you.
Q How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
