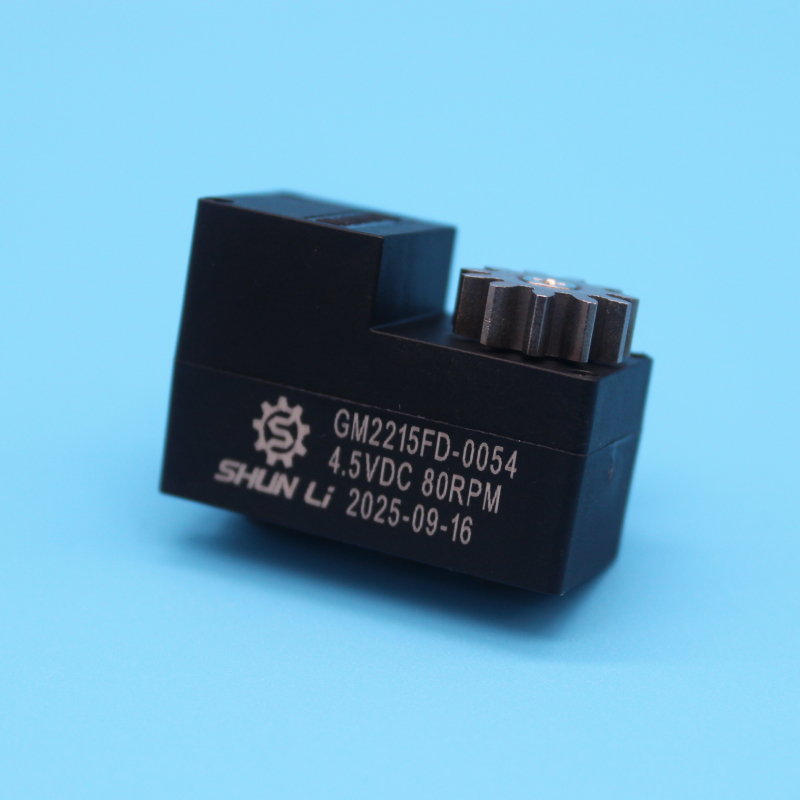

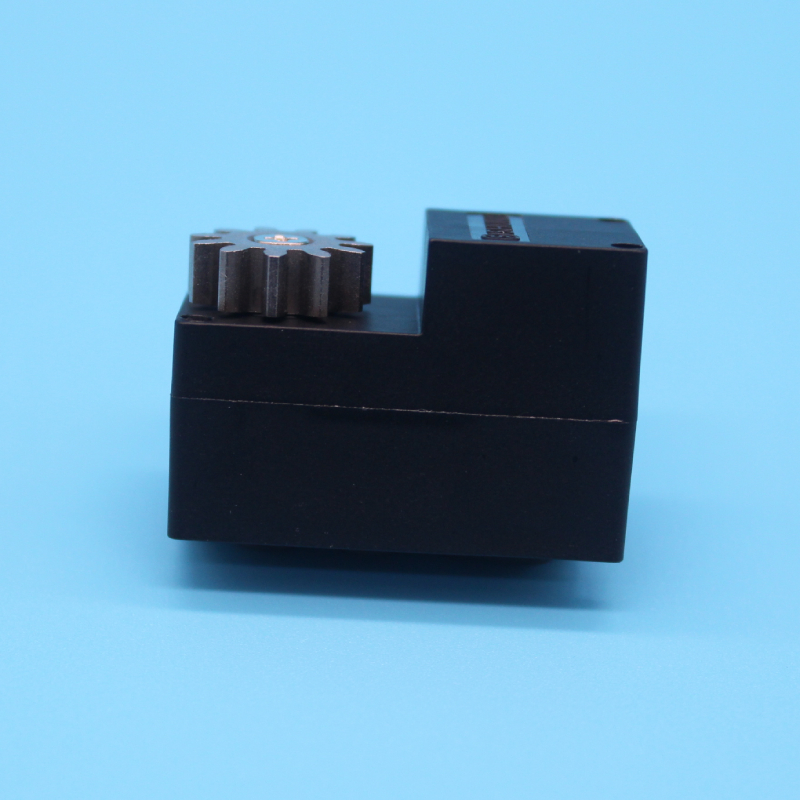

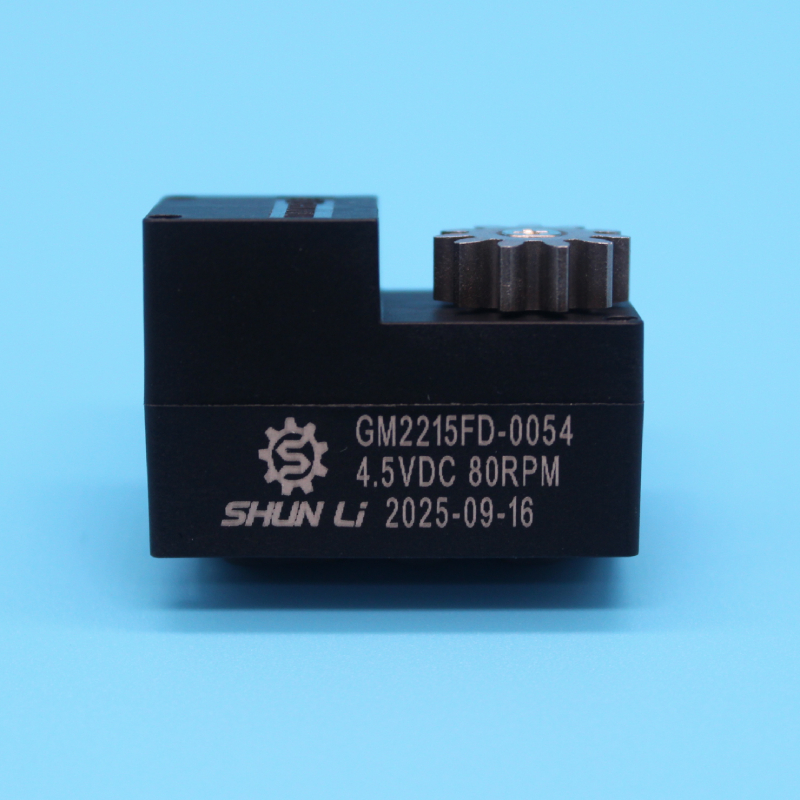

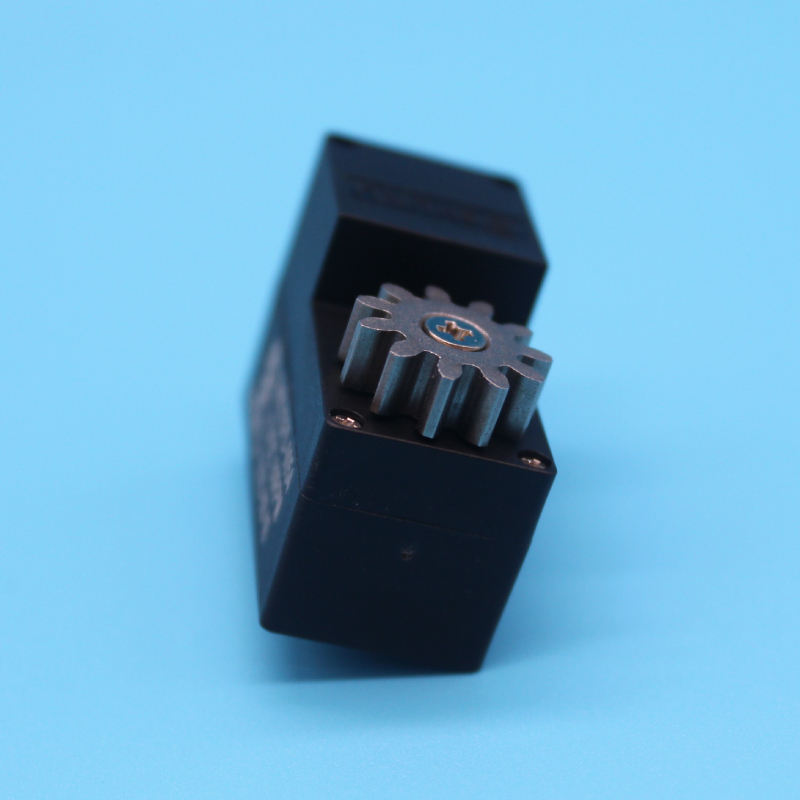

Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock

Product Description

Product Range Banner

Product Description

2215 smart lock motor steering gear automatic door lock micro motor gearbox reduction motor

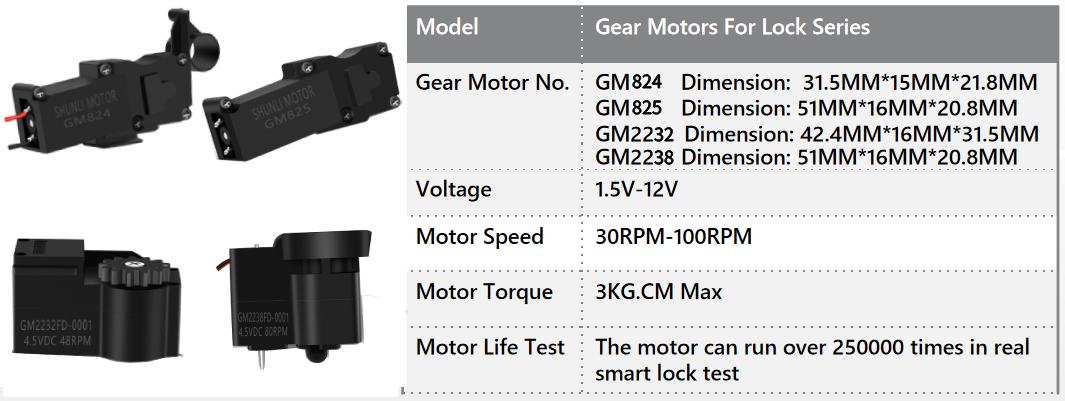

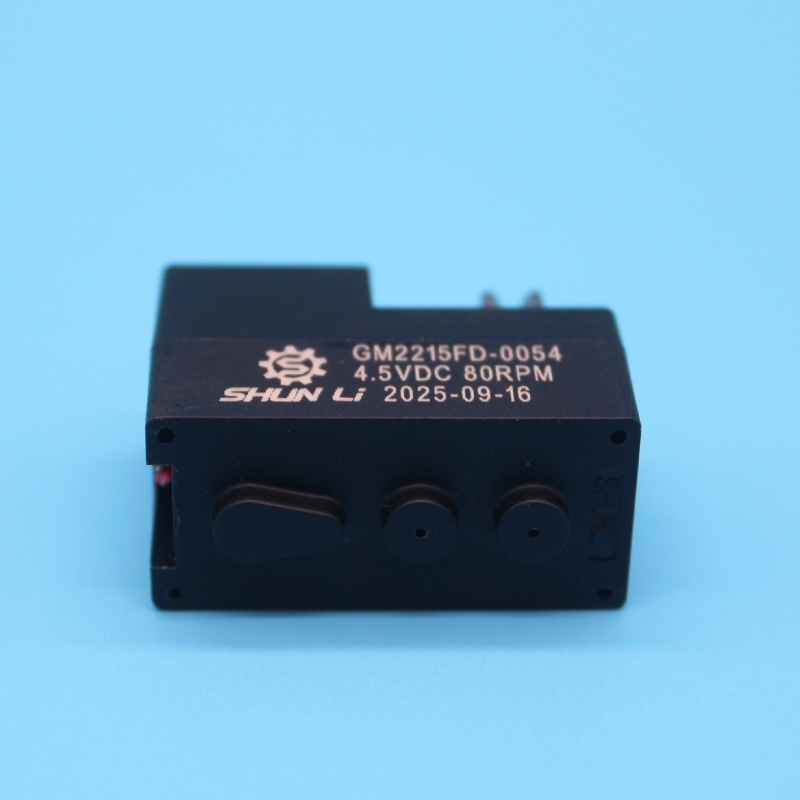

Smart Lock Gear Motor Showcase

Motor Customized Specification

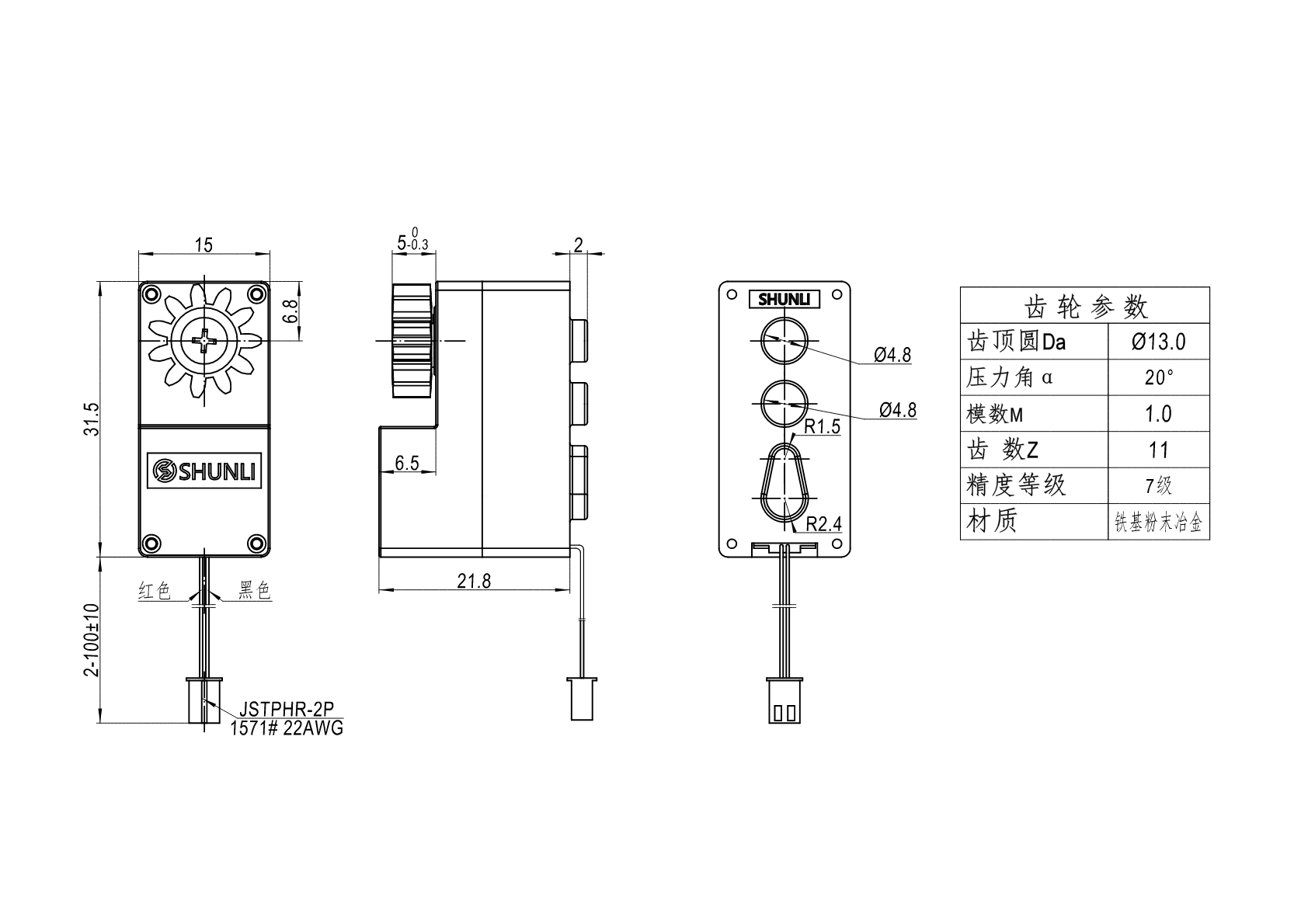

Reference Drawing GM2215
Reference Drawing ------ GM2215

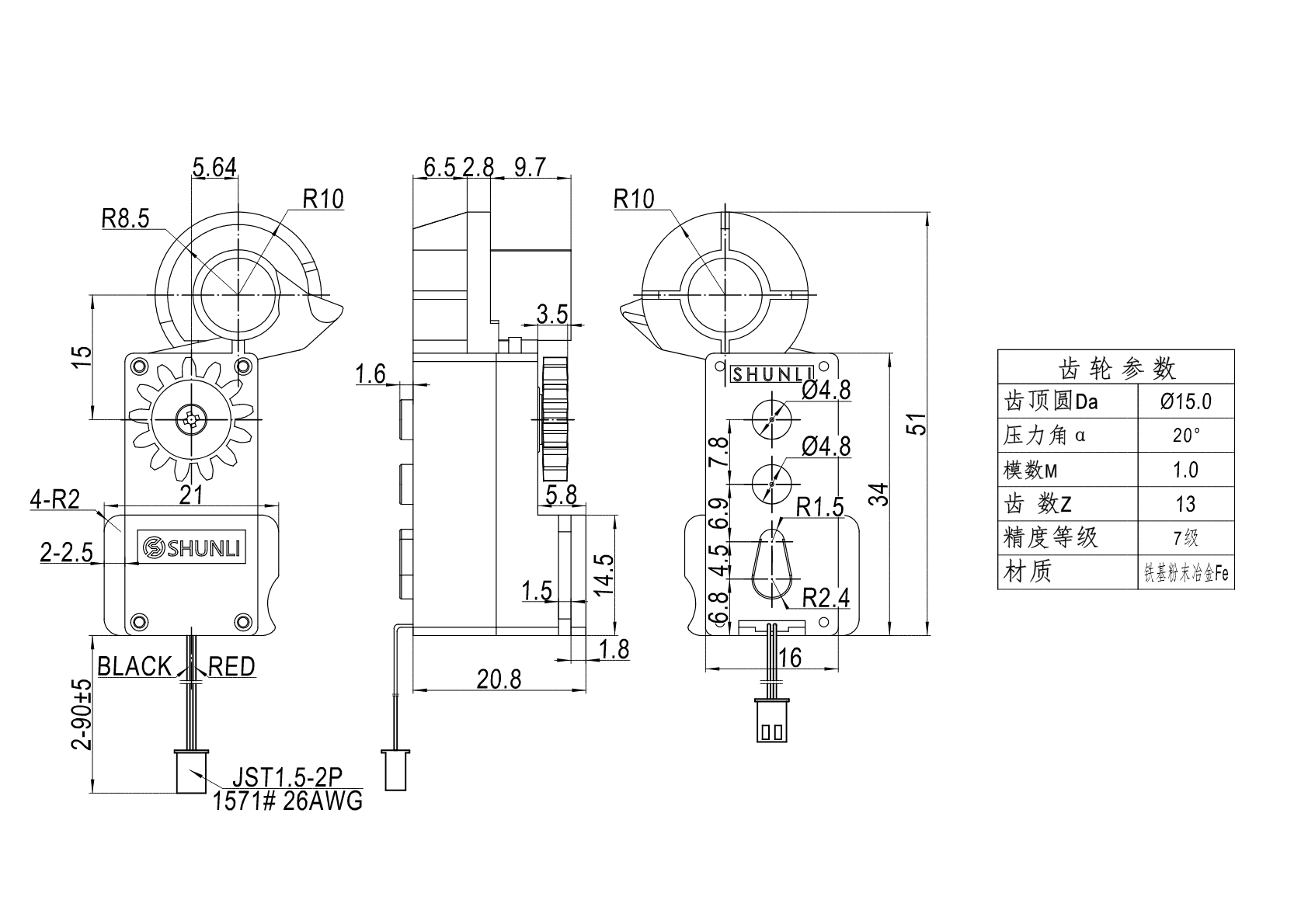

Reference Drawing GM2219
Reference Drawing ------ GM2219

Reference Datasheet

Gearbox Technical Data

Ratio Max. Rated Torque Max. Gear Breaked Torque Gearbox Efficiency
199K / 241K / 265K 1.5 ~ 2.5 Kgf.cm 4 ~ 5 Kgf.cm 45% ~ 60%

Gearmotor Technical Data

Gearmotor Model Ratio Rated Voltage No-Load Rated Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (mN.m / gf.cm) Current (mA) Torque (N.m / Kgf.cm)
GM2215FMN20-199K 1 : 199 4.5 VDC 52 ≤ 50 40 ≤ 120 18 / 180 ≤ 350 0.18 / 1.8
GM2222FMN20-230K 1 : 230 4.5 VDC 58 ≤ 78 49 ≤ 135 24 / 240 ≤ 450 0.2 / 2.0
GM2219FMN20-265K 1 : 241 4.5 VDC 58 ≤ 65 50 ≤ 130 24 / 240 ≤ 680 0.2 / 2.0
GM2219FMN20-265K (Alt) 1 : 241 4.5 VDC 62 ≤ 75 51 ≤ 140 35 / 350 ≤ 750 0.22 / 2.2

Product Range Showcase

DC Motor Selections
Micro Gear Motors
Precision Gear Processing

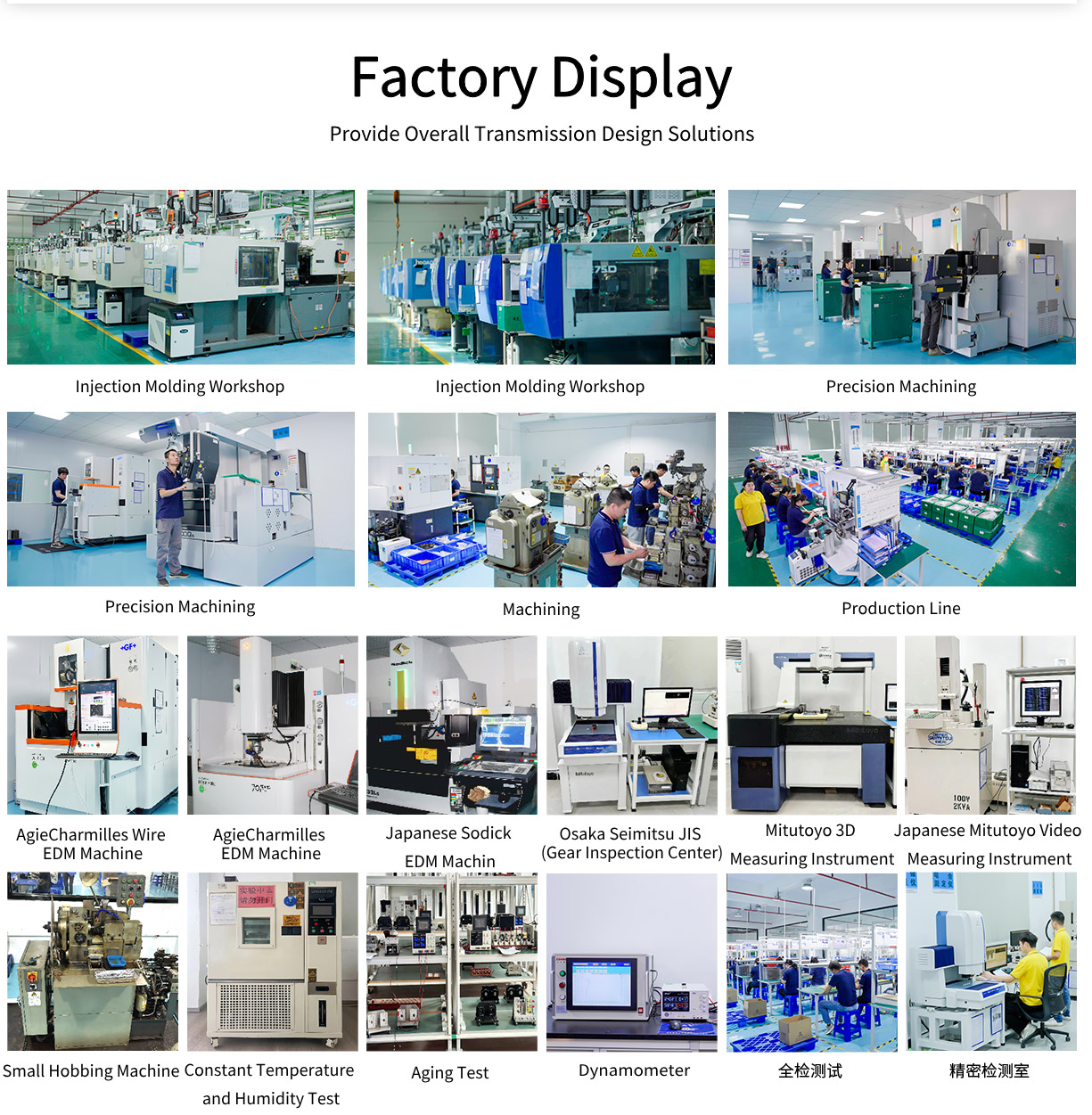

Production Workshop
Automated Testing Line
QC Inspection Department

Frequently Asked Questions

Q1Are you a trading company or a manufacturer?

We are a factory and manufacturer. We specialize in micro DC motors and DC gear motors with over 14 years of development and manufacturing experience.

Q2What payment options are available for new customers?

For new clients, we offer secure online trade assurance orders allowing payment via Credit Cards (Visa, MasterCard, etc.), PayPal, or Wire Transfer (T/T).

Q3If I cannot find a suitable motor model on your site, can you customize it?

Yes, we can customize technical specifications, gear ratios, output shafts, and motor dimensions to meet your specific project requirements.

Q4Do you have certifications for the motors?

Yes, our motors are manufactured in compliance with international standards and hold certifications such as CE, FCC, ISO, and RoHS. If you require additional specific certificates, we can assist in applying for them.

Q5How is your Quality Control managed?

We employ professional inspection staff across every production line. Final testing utilizes specialized testing machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Chambers, and Noise Testers to ensure optimal performance.

Q6What details should I provide to get a customized motor quotation?

Please provide your technical parameters such as rated voltage, rated speed, required torque, gearbox ratio limits, output shaft shape/dimensions, and mounting envelope dimensions.
